    Customizable Air Spring Goodyear 1B8-580 Single Convoluted Air Bellows Air Bag

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8×6
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Customizable Air Spring Goodyear 1B8-580 Single Convoluted Air Bellows Air Bag

    Customizable Air Spring Goodyear 1B8-580 Single Convoluted Air Bellows Air Bag


    The Description of AIRSUSTECH Air Spring
    As actuators, AIRSUSTECH air springs can enable linear or angular movements. These air suspensions have a favorable stroke-to-compression height ratio compared to air cylinders and can operate with various actuating media such as air, water, nitrogen, or antifreeze. AIRSUSTECH air rubber bellows effectively reduce the damaging effects of vibration. They can simultaneously isolate vibration and adjust the load height, ensuring consistent vibration isolation under varying loads.
    1B8×6 Characteristics
    Cover PlateTop Cover Plate Diameter135 mm
    Screw Center Distance of Top Cover Plate70 mm
    Bottom Cover Plate Diameter135 mm
    Screw Center Distance of Bottom Cover Plate70 mm
    Nut/Blind NutsTop Cover Plate Screw(Nut) Tooth2×3/8-16UNC
    Bottom Cover Plate Screw(Nut) Tooth2×3/8-16UNC
    Gas Hole/Air Inlet/Air FittingAir Connection1/4-18NPT
    Rubber BellowsMax Diameter of Rubber Bellows240 mm
    Natural Height157 mm
    SturctureSingle Convoluted


    1B8×6 Air Actuator Fits for


    Fit for Goodyear 1B8-580

    Fit for Goodyear 1B8580

    Fit for Goodyear 1B8 580

    Fit for Goodyear 1B 8580

    Fit for Goodyear 1B 8 580

    Fit for Goodyear 1B 8-580
    Fit for Firestone W01-358-7605 / WO1-358-7605

    Fit for Firestone W013587605 / WO13587605

    Fit for Firestone W01 358 7605 / WO1 358 7605

    Fit for Firestone W01-358-7598 / WO1-358-7598

    Fit for Firestone W013587598 / WO1-358-7598

    Fit for Firestone W01 358 7598 / WO1-358-7598

    About AIRSUSTECH Air Springs


    1. Our air springs are available in single, double, and triple convolution designs, as well as with reversible sleeves.
    2. AIRSUSTECH air bag offers a complete range of air actuators with replacement springs for virtually every vehicle air suspension system.
    3. Although they appear simple, air rubber bellows are actually a highly complex and sophisticated product. Even minor changes in design, construction method, or materials used can have a large and noticeable impact on performance.
    4. Choosing AIRSUSTECH air spring is a wise decision. With AIRSUSTECH air shoch suspensions, you benefit from the latest technical developments and improvements. This ensures that your product is not only well-designed and offers perfect performance, but also delivers outstanding long-term performance in actual use.
    We Have Other Air Bags Replacements to Single Convoluetd Goodyear Air Bellows
    1B5-5001B5-5021B5-5031B5-510
    1B5-5121B5-5201B5-5211B6-530
    1B6-5311B6-5321B6-5351B6-538
    1B7-5401B7-5411B7-5421B8-550
    1B8-5511B8-5521B8-5531B8-554
    1B8-5601B8-5621B8-5641B9-201
    1B9-2021B9-2041B9-2071B9-208
    1B12-3011B12-3041B123051B12-313
    1B14-3501B14-3511B124-3521B12-353
    1B14-3621B14-3641B15-3751B15-376
    1B15-3771B15-378

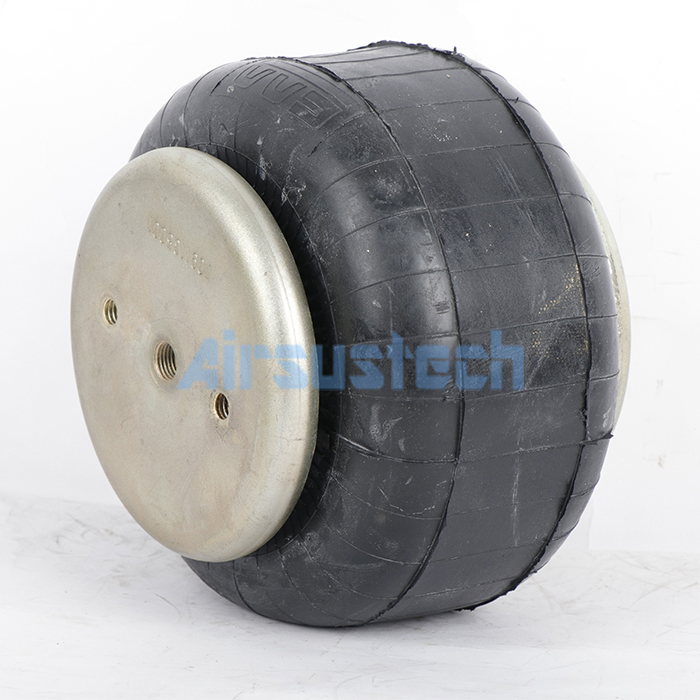

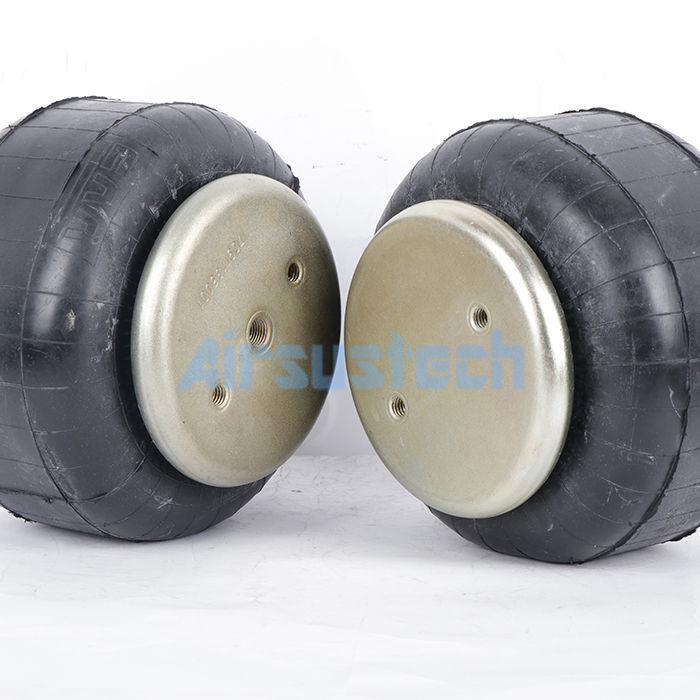

    1B8×6 Real Pictures





    Company Profile

    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
