    Firestone Pneumatic Rubbe Bellows Only W01-358-0100 Air Spring Vibration Control

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B0100
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone Pneumatic Rubbe Bellows Only W01-358-0100 Air Spring Vibration Control

    Firestone Pneumatic Rubbe Bellows Only W01-358-0100 Air Spring Vibration Control


    The Features of AIRSUSTECH Air Springs


    The primary market for AIRSUSTECH air springs is industrial, including the paper, food, textile, and construction industries. In the automotive sector, air bellows are used in conjunction with existing steel suspensions to improve stability and comfort, reduce body roll, improve leveling, and more. The air bag is a single-acting pneumatic actuator made of reinforced elastic material. Each end is attached to a metal cap with mounting holes and air inlets. There are three basic variations: single, double, and triple convolution/leaf. Dunlop air bellows are extremely effective vibration isolators for many types of equipment.


    Product Detailed Datas
    Body Dia.[Max]: 221 mm
    Temperature Range : -40℃+70℃
    Stroke Length [Max]: 99 mm
    Pressure [Max]: 0-8 bar
    Height [Max]: 152 mm
    Height [Min]: 53 mm
    Type: single convoluted air bellows only
    Product Technical Parameters
    Dynamic Characteristics at 115 mm Design Height
    Gauge Pressure (BAR)Load
    (kN)
    Spring Rate (kN/m)Natural Frequency
    33.1992.82
    44.291272.72
    55.481572.67
    66.781892.63
    77.922182.62

    Force Table
    Assembly Height (mm)Volume @ 7 BAR (cu cm)EFF Area @ 7 BAR (cm2)kN Force
    @ 3 BAR@ 4 BAR@ 5 BAR@ 6 BAR@ 7 BAR
    1302268802.032.93.754.745.58
    12021671032.763.864.956.147.18
    11020371233.414.685.967.368.61
    10018981403.925.346.788.369.78
    9017331544.335.927.499.2310.80
    8015681664.646.398.089.9411.62
    7013791764.896.778.5810.5512.30
    6011981845.097.058.9711.0312.85
    OEM Cross References
    • Rubber bellows only
    W01-358-0100 / W013580100 / W01 358 0100
    WO1-358-0100 / WO13580100 / WO1 358 0100
    • Blind nuts, 1/4 BSP
    W01-M58-6145 / W01M586145 / W01 M58 6145
    WO1-M58-6145 / WO1M586145 / WO1 M58 6145
    • Socket head alumninum bead rings (bolts, nuts, washers not Inc-use M6 cap screws)
    W01-358-0112 / W013580112 / W01 358 0112
    WO1-358-0112 / WO13580112 / WO1 358 0112

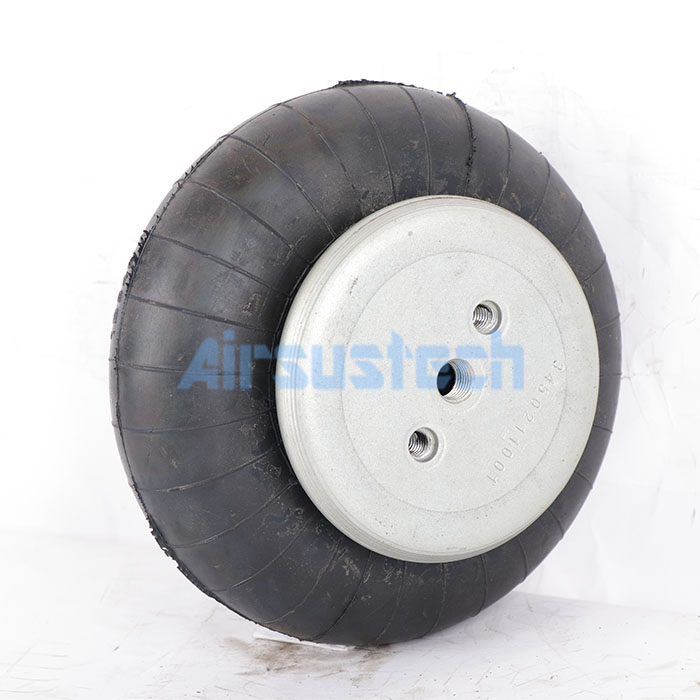

    The Real Pictures





    Company Profile

    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
