115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs from wholesalers

    Buy cheap 115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs from wholesalers
    • Buy cheap 115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs from wholesalers
    • Buy cheap 115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs from wholesalers
    • Buy cheap 115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs from wholesalers
    • Buy cheap 115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs from wholesalers

    115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs

    115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs


    Product Detailed Datas


    ModelCylinder (inch)Port sizeNominal (inch) ×convolutionsStroke (mm)Installation height min (mm)Recommended max working height (mm)Installation height max (mm)Retracting force to rech min height [N]
    M/310616''G1/26''×1555095105140
    M/310626''G1/26''×211575170190220
    M/310818''G1/28''×17550115130220
    M/310828''G1/28''×217575220250350
    M/3110110''G1/210''×110050135150150
    M/3110210''G1/210''×222575245300150
    M/3110310''G1/210''×3330100350430250
    M/3112112''G1/212''×110050135150200
    M/3112212''G1/212''×222575245300250
    M/3112312''G1/212''×3330100350430250
    M/3114114 1/2''G1/214 1/2''×110050135150200
    M/3114214 1/2''G1/214 1/2''×226575290340280
    M/311434 1/2''G1/24 1/2''×3380100420480330
    M/3116216''G1/216''×231575350390250
    M/3116316''G1/216''×3430120475550100
    M/3221221''-21''×225184284335331
    M/3226226''-26''×2400100425500400


    OEM Part Numbers

    Norgren Part Number: M/31062

    Norgren Part Number: M31062

    Norgren Part Number: M 31062

    Firestone Part Number: W01-R58-4053

    Firestone Part Number: W01R584053

    Firestone Part Number: W01 R58 4053

    Firestone Part Number: WO1-R58-4053

    Firestone Part Number: WO1R584053

    Firestone Part Number: WO1 R58 4053

    Dunlop Pneuride Part Number: 6"x2 (Steel)

    Dunlop Pneuride Part Number: 6'x2 (Steel)

    Dunlop Pneuride Part Number: 6x2 (Steel)
    Dunlop Springride Part Number: SP1482

    Dunlop Springride Part Number: SP 1482

    Dunlop Springride Part Number: SP 14 82
    Contitech Part Number: FD 76-14 DS

    Contitech Part Number: FD 7614 DS

    Contitech Part Number: FD 76 14 DS

    Contitech Part Number: FD76-14 DS

    Contitech Part Number: FD7614 DS

    Contitech Part Number: FD76 14 DS
    Parker Part Number: 9109001

    Construction of AIRSUETECH Type Air Pneumatic Shock Suspensions


    • A complete AIRSUETECH type inch air bellows actuator consists of a corrugated body made of rubberized fabric and reinforcing steel rings. The body of the air springs is sealed with flanges, and one of the clamping flanges has an inlet port. The flanges are designed for mounting in both stationary and resiliently mounted machine and device elements.
    • AIRSUSTECH flange ring air actuators can be supplied with compressed air with a maximum working pressure of 0.7 MPa. These air rubber bellows with flange should have sufficient space around the body to prevent the bellows body from contacting other parts of the machine, device or vehicle during operation.
    FAQ of AIRSUSTECH Air Suspensions

    Q: How do you make our business a long-term and good relationship?
    A: 1. We maintain good quality and competitive prices to ensure our customers benefit;

    2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

    Q: What is the model number of the Suspension Air Springs?
    A: The model number of the Suspension Air Springs is 2B6×2T.
    Q: What are the packaging details for the Suspension Air Springs?
    A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
    Q: How is your delivery time?
    A: Generally, it takes 5-8 working days after receiving the advance payment.
    The specific delivery time depends on the items and quantity of the order.

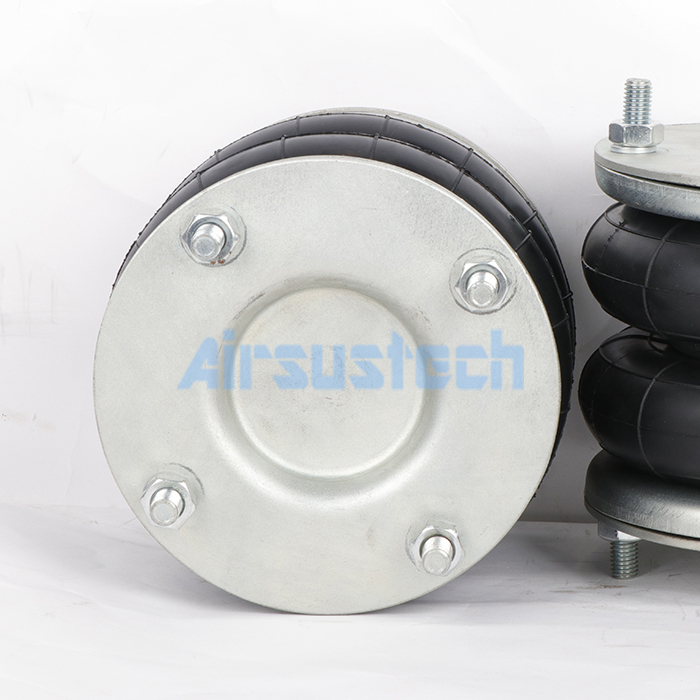

    The Real Pictures of 2B6×2T




    Company Profile

    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.


    Factory Workshop

    Quality 115MM Stroke Double Air Spring Assembly Norgren M/31062 with Male Mounting Studs for sale
