Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension from wholesalers

    Buy cheap Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension from wholesalers
    • Buy cheap Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension from wholesalers
    • Buy cheap Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension from wholesalers
    • Buy cheap Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension from wholesalers
    • Buy cheap Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension from wholesalers

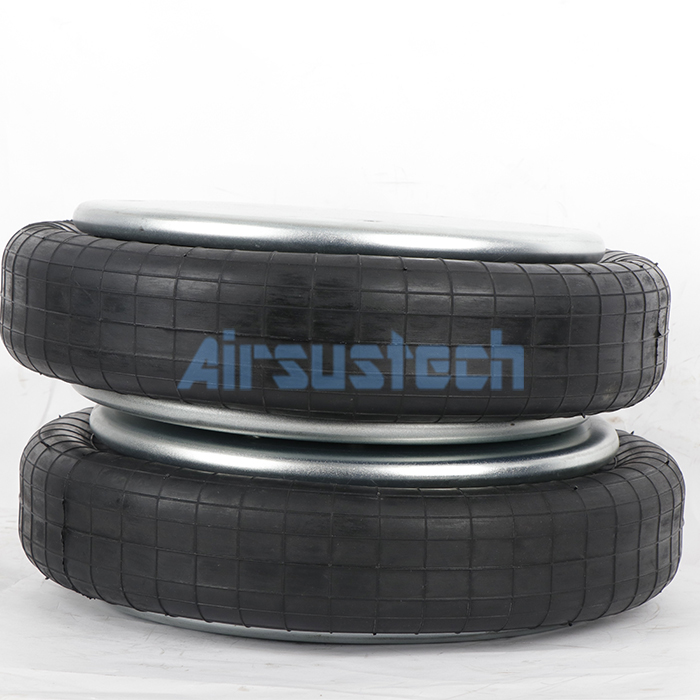

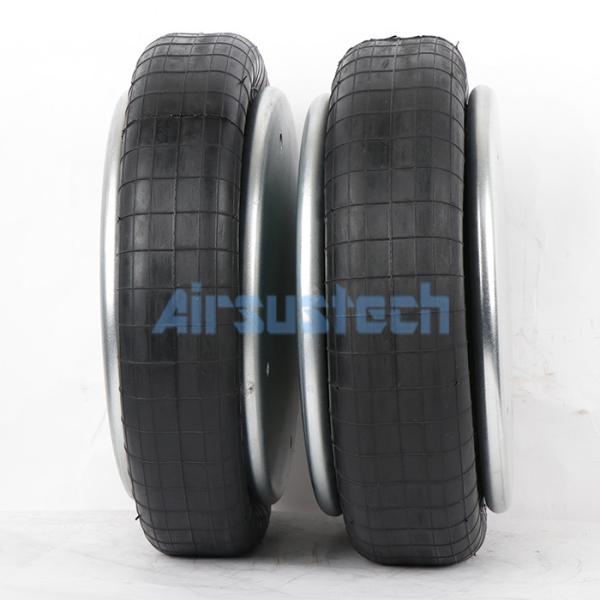

    Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B53014
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension

    Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension


    Product Standards


    Bottom Plate Alignment: Parallel
    Bottom Plate Center To Center Diameter: 6.25 inches
    Bottom Plate Diameter: 11.31 inches
    Bottom Plate Hole Quantity: 4×3/8-16 UNC
    Bottom Plate Type: Steel
    Top Plate Alignment: Parallel
    Top Plate Center To Center Diameter: 6.25 inches
    Top Plate Diameter: 11.31 inches
    Top Plate Hole Quantity: 4×3/8-16 UNC
    Top Plate Type: Steel
    Expanded Height: 290 mm
    Compressed Height: 2.00 inches
    Spring Type: Single Convoluted
    Max Rubber Bellow Diameter: 15.90 inches
    Air Connection: 1/4-18 NPTF
    Operation: Gas-filled

    Cross References


    Goodyear Air Spring 1B14-350

    Goodyear Air Spring 1B14350

    Goodyear Air Spring 1B 14-350

    Goodyear Air Spring 1B 14350

    Goodyear Air Spring 1B 14 350
    Goodyear Flex No. 578913351

    Goodyear Flex No. 578-91-3-351

    Goodyear Flex No. 578 91 3 351

    Contitech Air Spring FS 530-14

    Contitech Air Spring FS530-14

    Contitech Air Spring FS53014

    Contitech Air Spring FS 53014

    Contitech Air Spring FS 530 14
    Triangle Air Spring AS-4442

    Triangle Air Spring AS4442

    Triangle Air Spring AS 4442
    Firestone Air Spring W01-358-7103

    Firestone Air Spring W013587103

    Firestone Air Spring W01 358 7103
    FleetPride Air Spring AS7103
    Taurus Air Spring 6326
    TRP Air Spring AS71030
    Peerless Air Spring 0550-00015

    Peerless Air Spring 055000015

    Peerless Air Spring 0550 00015


    Features of Rubber Air Spring


    1. Extended Service Life: The self-sealing design offers remarkable durability due to minimal rubber deformation during its expansion and contraction cycles.
    2. Simple Maintenance: With no friction or sliding components, there’s no need for lubricating oil, making upkeep straightforward.
    3. Reduced Installation Height: Compared to traditional springs, rubber air suspension allows for a lower installation height, effectively increasing the suspension stroke.
    4. Flexible Spring Characteristics: Achieves parameters of elasticity and softness, supporting high loads while also providing excellent vibration resistance.
    5. Variable Load Capacity: Load-bearing capacity can be easily adjusted over a wide range by modifying the internal pressure.
    6. Height Control: When paired with a height adjustment valve, the system can maintain a consistent height for varying loads.
    7. Effective Damping: Incorporating an auxiliary air chamber and throttle valve enhances damping performance, ensuring a smoother ride.

    Goodyear Single Convoluted Air Bellows We Can Offfer


    1B5-5001B5-5121B9-202
    1B5-5021B5-5201B9-204
    1B5-5031B5-5211B9-205
    1B5-5101B9-2011B9-208
    1B12-3011B12-3131B14-352
    1B12-3041B14-3501B14-362
    1B12-3051B14-3511B14-364
    1B15-3751B15-3761B15-377


    The Related Pictures




    Company Profile

    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
