    Brand-new Single Acting Air Bellow Norgren PM/31042 Pneumatic Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B4.5×2P
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Brand-new Single Acting Air Bellow Norgren PM/31042 Pneumatic Air Actuator

    Brand-new Single Acting Air Bellow Norgren PM/31042 Pneumatic Air Actuator


    Product Introduction


    The air bellows is a single-acting pneumatic actuator made of reinforced elastomeric material. Each end is connected to a metal cover with mounting holes and air inlet ports. There are three basic variations: single, double and triple convolutions/vanes. They are suitable for use with many types of equipment. By carefully selecting the correct natural frequency, they can significantly reduce transmitted vibrations generated in most industrial and commercial applications.


    Product Details


    • Cover Plate

    Top Cover Plate Diameter: 110 mm
    Screw Center Distance of Top Cover Plate: 93 mm
    Bottom Cover Plate Diameter: 110 mm
    Screw Center Distance of Bottom Cover Plate: 93 mm


    • Nut/Blind Nuts

    Top Cover Plate Screw(Nut) Tooth: 4×M6
    Bottom Cover Plate Screw(Nut) Tooth: 4×M10


    • Gas Hole/Air Inlet/Air Fitting

    Air Connection: G3/8

    Type: Gas-filled


    Other Part Numbers of 2B4.5×2P


    Replaces Contitech FD 44-10 DI CR

    Replaces Contitech FD 4410 DI CR

    Replaces Contitech FD 44 10 DI CR

    Replaces Contitech FD44-10 DI CR

    Replaces Firestone W01-R58-4051

    Replaces Firestone W01R584051

    Replaces Firestone W01 R58 4051

    Replaces Firestone WO1-R58-4051

    Replaces Firestone WO1R584051

    Replaces Firestone WO1 R58 4051

    Replaces Dunlop SP2441

    Replaces Dunlop SP 2441

    Replaces Dunlop SP 24 41

    Replaces Dunlop 4 1/2''×2

    Replaces Dunlop 4 1/2'×2

    Replaces Dunlop 4 1/2×2

    Replaces DUNLOP UK (PNEURIDE) PNP 305590107

    Replaces YS-AIR YS-115-2V

    Replaces YS-AIR YS 115 2V

    Replaces YS-AIR YS1152V

    Replaces Norgren PM/31042

    Replaces Norgren PM31042

    Replaces Norgren PM 31042


    The Advantages of AIRSUSTECH Air Springs


    1. Discover Amazing Savings Compared to OEM/Dealer Prices
    2. Enjoy Enhanced Performance
    3. Supported by a Trusted 1-Year Warranty for Your Peace of Mind
    4. Completely New and Prepared to Enhance Your Driving Experience
    5. Checkout is Guaranteed to Be Safe and Secure
    FAQ
    Q: What is the model number of the Suspension Air Springs?
    A: The model number of the Suspension Air Springs is 2B4.5×2P.
    Q: What are the packaging details for the Suspension Air Springs?
    A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
    Q: Is it possible to receive a proforma invoice?
    A: Yes, we will send you a proforma invoice if you choose for the payment method: ‘Bank Transfer Payment’ at the check out.
    You can pay with bank transfer, PayPal or Credit Card after you have received the proforma invoice. We will ship your order out as soon as we have received the payment.
    Q: How to guarantee your after sales service?
    A: (1) Strict inspection during production.
    (2) Recheck the products before shipment to ensure our packaging in good condition.
    (3) Track and receive feedback from our customers.

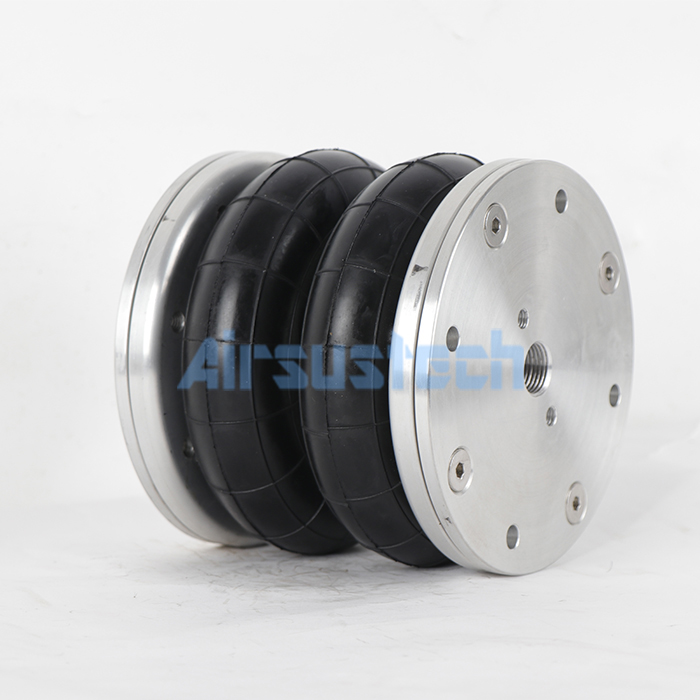

    The Real Pictures of 2B4.5×2P




    Company Profile

    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
