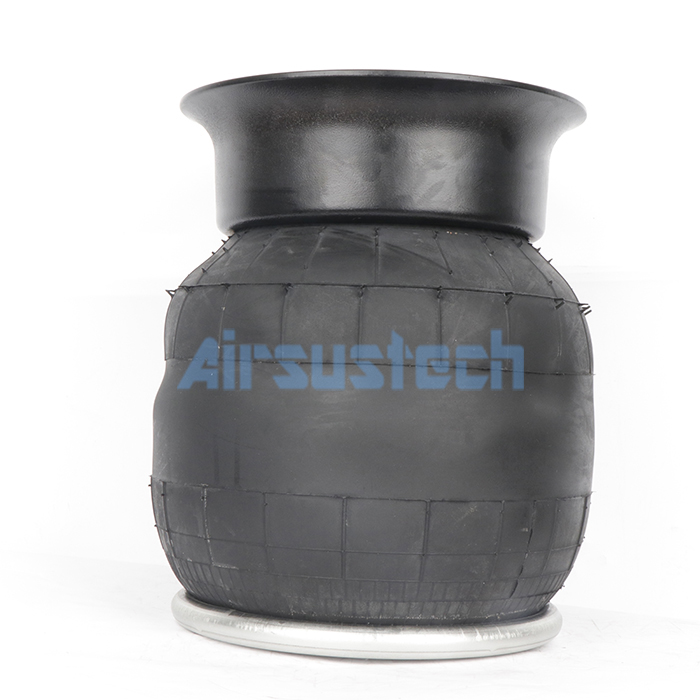

    1/4NPT Air Hole Firestone Air Bellows 1T15M-9 Complete Air Spring W01-358-9108

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1T9108
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    1/4NPT Air Hole Firestone Air Bellows 1T15M-9 Complete Air Spring W01-358-9108

    1/4NPT Air Hole Firestone Air Bellows 1T15M-9 Complete Air Spring W01-358-9108


    1T9108 Air Spring Specifications and Technical Parameters


    Diameter of the Top Cover Plate9.00 inches
    Center-to-Center Distance of Screws on the Top Cover Plate6.20 inches
    Diameter of the Piston10.25 inches
    Center-to-Center Distance of the Piston7.88 inches
    Screw (Nut) Thread Count for the Top Cover Plate2×3/8-16 blind nuts
    Air Inlet/Air hole/Air connection/Gas hole/Pneumatic connection1/4 NPT
    Max Diameter of the Rubber Bellow12.70 inches
    Maximum Height27 inches
    Minimum Height8.5 inches

    Dynamic Characteristics at 17.0 in. Design Height
    Volume @ 100 PSIG = 1,217 in3

    Natrual Frequency
    Gage Pressure (PSIG)Load (lbs.)Spring Rate (lbs./in.)CPMHZ
    402,770287601.01
    604,250425590.99
    805,680546580.97
    1007,140659670.95

    Force Table
    Assembly Height (in.)Volume @ 100 PSIG (in3)Pounds Force
    @ 20 PSIG@ 40 PSIG@ 60 PSIG@ 80 PSIG@ 100 PSIG
    23.01,6581,0902,1503,3404,5605,850
    21.01,5171,2902,6004,0205,3806,860
    19.01,3681,3402,7804,2405,6607,110
    17.01,2171,3702,7704,2505,6807,140
    15.01,0671,3802,8104,2905,6907,150
    13.09161,3902,8104,2805,7007,170
    11.07601,4602,9504,4305,9407,500
    9.05961,5803,2004,8806,5508,230


    Firestone Style 1T15M-19 Other OEM Numbers


    • Blind nuts, 1/4 NPT

    W01-358-9108 / W013589108 / W01 358 9108

    WO1-358-9108 / WO13589108 / WO1 358 9108


    • Blind nuts, 1/4 NPT, bumper

    W01-358-9104 / W013589104 / W01 358 9104

    WO1-358-9104/ WO13589104 / WO1 358 9104


    • Blind nuts, 3/4 NPT

    W01-358-9106 / W013589106 / W01 358 9106

    WO1-358-9106 / WO13589106 / WO1 358 9106


    • Blind nuts, 3/4 NPT, bumper

    W01-358-9117/ W013589117 / W01 358 9117

    WO1-358-9117/ WO13589117 / WO1 358 9117


    Part Interchanges


    Firestone 1T15M-9

    Firestone W01-358-8864

    Firestone W013588864

    Firestone W01 358 8864
    Peterbilt 03-08716
    ContiTech 66666
    FleetPride AS8864
    Kenworth C81-1011

    Kenworth C811011

    Kenworth C81 1011
    Triangle AS-8898

    Triangle AS8898

    Triangle AS 8898
    TRP AS88640
