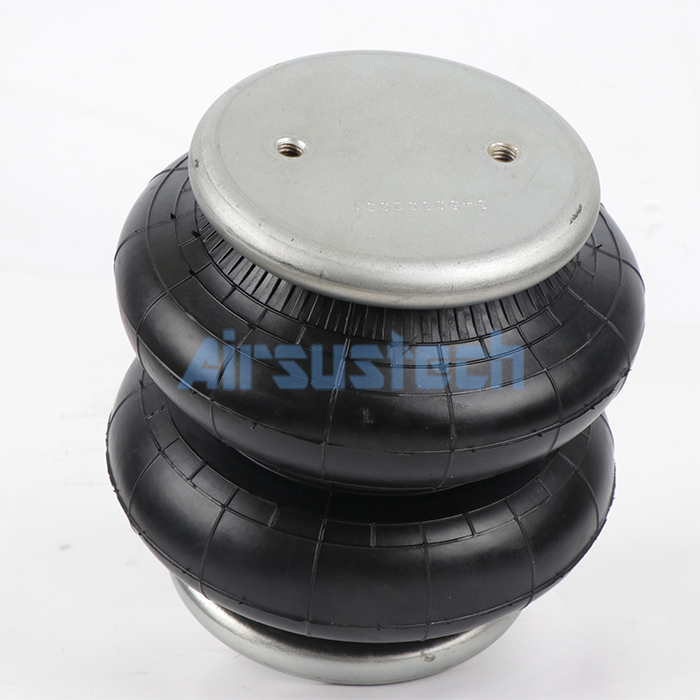

    Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B5213
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C

    Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C



    Product Details


    Top Cover Plate Diameter: 132 mm
    Screw Center Distance of Top Cover Plate: 70 mm
    Bottom Cover Plate Diameter: 132 mm
    Screw Center Distance of Bottom Cover Plate: 70 mm
    Top Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
    Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
    Air Connection: 3/8NPT
    Rubber Bellow Max. Diameter: 203 mm
    Compressed Height: 75 mm
    Expanded Height: 230 mm


    Refer Numbers


    Firestone Air Spring W21-760-0335
    Firestone Air Spring W217600335

    Firestone Air Spring W21 760 0335

    Firestone Style 244C
    Firestone Air Spring A01-760-0335
    Firestone Air Spring A017600335
    Firestone Air Spring A01 760 0335

    AIRSUSTECH Air Spring Features


    • Keep The Vehicle Level
    • Level Off-Center Loads
    • Reduce Suspension Fatigue
    • Air Adjustments Improves The Ride
    • Reduce Bottoming Out
    • Increase Vehicle Stability

    Other Air Firestone Air Springs We Can Offer


    Firestone W01-358-5716 BELLOW ACTUATOR
    Firestone W01-358-7808 FIRESTONE, W01-358-7808, W013587808, 313C, 4X3/8BN, 1/4OFF, 4BN
    Firestone W01-358-7145 21C 4BN 1/4NPTOFF
    Firestone W02-358-5000 ACTUATOR, AIRMOUNT, AIRSTROKE, INDUSTRIAL, AIR SPRING, VIBRATION ISOLATOR
    Firestone W02-358-7207 AIR SHOCK 100PSI
    Firestone W01-358-7731 SINGLE CONVOLUTE AIRSTROKE, ACTUATOR/AIRMOUNT ISOLATOR
    Firestone W02-358-3001 AIR SPRING, REVERSIBLE SLEEVE, 100 PSI MAX
    Firestone W01-358-9155 FIRESTONE,W01-358-9155,W013589155,1T19L11,4BN1/4OFF,PBW
    Firestone W01-358-9402 1T15T1 RB 2BN1/4NPTOFF PST
    Firestone W01-M58-6155 131B, 2XM8BN, 1/4BSP
    Firestone W01-M58-6183 20F2 2M8BN 1/4BSP OFFSET, 2M8BN
    Firestone W01-358-6955 267CZ1.5, 2 BN, 1/4 NPT CTR
    Firestone W01-358-7008 AIR SPRING
    Firestone W01-358-7101 AIR BAG FOR COMPACTION TABLE, 113B 4BN3/4NPTOFF 4BN
    Firestone W01-358-7143 DOUBLE CONVOLUTED AIR SPRING
    Firestone W01-358-7205 FIRESTONE ,W01-358-7205 ,W013587205 ,29C ,B.RING, 1 7/8 BNW
    Firestone W01-358-7304 321C B.RING 1 7/8 BNW
    Firestone W01-358-7306 321C B.RING 1 7/8 BNW
    Firestone W01-358-0140 21D2 AIRSPRING BELLOWS

    The Related Photos of Air Bags





    Company Profile

    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
