    Firestone Bellows No. W01-358-7001 Industrial Air Spring 1/4 NPT Air Connection

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1K130070
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone Bellows No. W01-358-7001 Industrial Air Spring 1/4 NPT Air Connection

    Firestone Bellows No. W01-358-7001 Industrial Air Spring 1/4 NPT Air Connection


    The Detailed Datas of 1K130070


    Diameter of the Top Cover Plate4.50 inches
    Center-to-Center Distance of Screws on the Top Cover Plate1.75 inches
    Diameter of the Bottom Cover Plate4.50 inches
    Center-to-Center Distance of Screws on the Bottom Cover Plate1.75 inches
    Screw (Nut) Thread Count for the Top Cover Plate3/8-16 blind nuts
    Screw (Nut) Thread Count for the Bottom Cover Plate3/8-16 blind nuts
    Air Inlet1/4 NPT
    Max Diameter of the Rubber Bellow6.0 inches
    Maximum Height3.50 inches
    Minimum Height1.90 inches

    Alternative Items


    • Blind nuts, 1/4 NPT

    W01-358-7001, W01 358 7001, W013587001

    WO1-358-7001, WO1 358 7001, WO1 358 7001

    • Blind nuts, 3/4 NPT

    W01-358-6996, W01 358 6996, W013586996

    WO1-358-6996, WO1 358 6996, WO13586996

    • Socket head aluminum bead rings (blolts, nuts, washers not included - use 1/4 cap screws)

    W01-358-0017, W01 358 0017, W013580017

    WO1-358-0017, WO1 358 0017, WO13580017

    • 3/4 NPT (only) upper plate, blind nuts lower plate

    W01-358-0286, W01 358 0286, W013580286

    WO1-358-0286, WO1 358 0286, WO13580286

    • Rubber bellows only

    W01-358-0010, W01 358 0010, W013580010

    WO1-358-0010, WO1 358 0010, WO13580010


    Cross References
    • Goodyear 1B5-500
    • Goodyear Rubber Bellows NO. 579-913-500
    • Air Lift 58218
    • Airkraft Style 1B120
    • ContiTech Order No. 61388
    • Enidine YI 1B5 500
    • Enidine YI-FS50-5-000
    • Firestone No. W02-358-5000
    • Firestone W01-358-7609
    • Firestone Bellows No. 16-ST
    • Firestone No. W01-358-7001
    • Firestone Bellows No. 16
    • Firestone New Bellows No. 16B
    • Numatics ASNS1111

    Six Reasons to Choose Us


    1.Hight stability
    2.In situ installation
    3.Ride comfort
    4.Safe and durable
    5.Effective shock absorption
    6.Reduce the sound

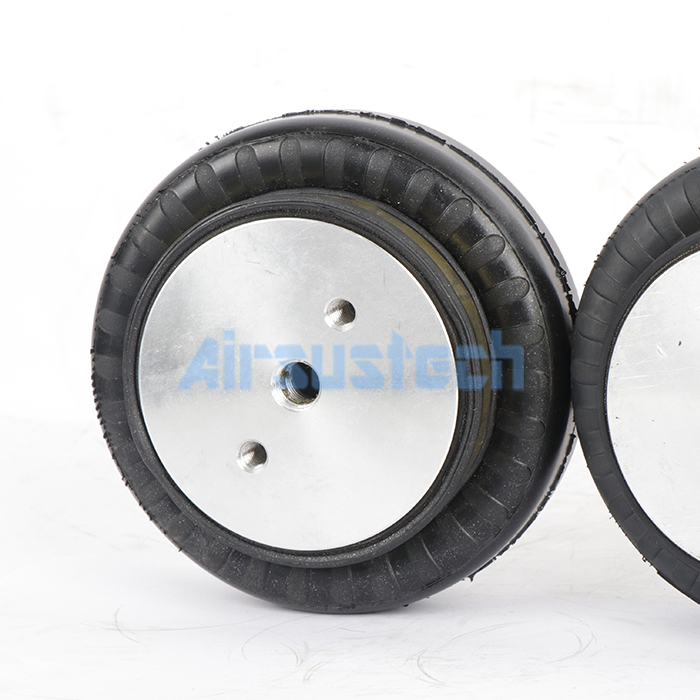

    The Detailed Pictures



    Company Profile


    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
