    Enidine YI-1B5-500 Suspension Air Spring Goodyear 1B5-500 for Reduce Shock

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1K130070
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Enidine YI-1B5-500 Suspension Air Spring Goodyear 1B5-500 for Reduce Shock

    Enidine YI-1B5-500 Suspension Air Spring Goodyear 1B5-500 for Reduce Shock


    1K130070 Specifications


    Product NO.Assembly NO.Maximum Stroke (in.)Force (Ibs.) @ 100 psi At A StrokeIsolator Load Range @100 psi (Ibs.)Appoximate System Natural Frequency HzDesign Height Range (in.)% Isolation At Input Freq of
    1.0 (in.)2.0 (in.)3.0 (in.)4.0 (in.)7.25 Hz14.5 Hz30 Hz
    YI-1B55002.001,2501,250-5601,100-1,3503.252.5-3.0729498
    5103.001,5001,5001,2005201,050-1,5002.752.5-4.0829699
    5213.001,5001,1504404401,000-1,5002.673.5-5.0839699

    OEM Cross References

    Goodyear

    1B5-500, 1B 5-500, 1B5500, 1B5 500

    Goodyear Rubber Bellows NO.

    579-913-500, 579 913 500, 579913500

    Air Lift

    58218

    Airkraft Style

    1B120, 1B 120

    ContiTech Order No.

    61388

    Enidine

    YI 1B5 500, YI-1B5-500, YI1B5500

    Enidine

    YI-FS50-5-000, YI FS50 5 000, YIFS505000

    Firestone No.

    W02-358-5000, W023585000, W02 358 5000

    Firestone

    W01-358-7609, W013587609, W01 358 7609

    Firestone Bellows No.

    16-ST, 16ST, 16 ST

    Firestone No.

    W01-358-7001, W013587001, W01 358 7001

    Firestone Bellows No. 16
    Firestone New Bellows No. 16B

    Numatics

    ASNS1111

    Product Notes
    To ensure stability, the distance from the floor to the center of gravity of the load should not exceed the shortest distance
    between Air Springs.
    1. Air Springs provide little lateral stability. Therefore, be sure to include a method of stabilization.
    2. Pressurize the Air Spring only when it is loaded.
    Typical Applications for Vibration Isolation
    • Vibratory conveyors
    • Large drying machines
    • Centrifugal separators
    • Coordinate measuring tables and machinery
    • Commercial laundry machines
    • Textile looms
    • Conveyor loading points
    • Compressors
    • Electronic equipment

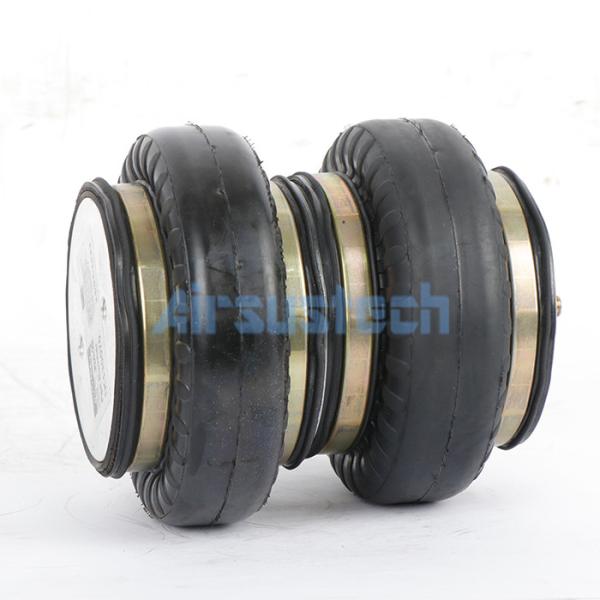

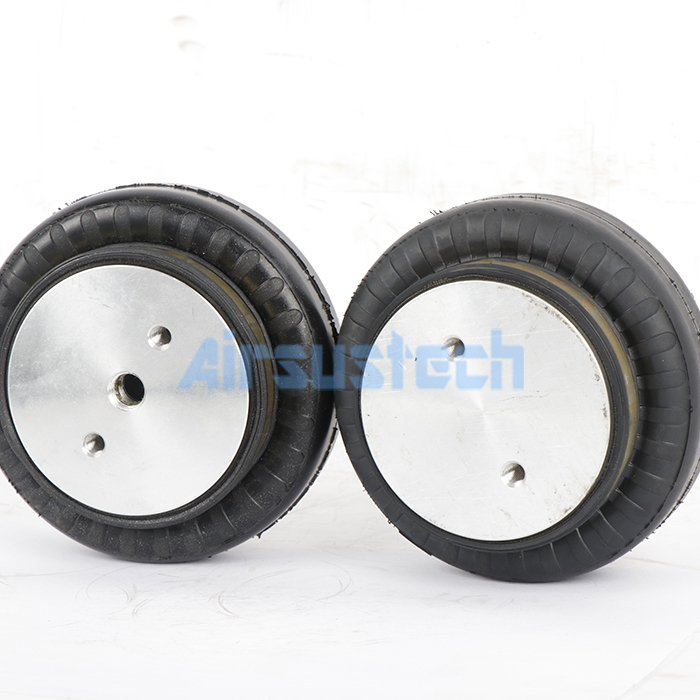

    1K130070 Detailed Pictures



    Company Profile


    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
