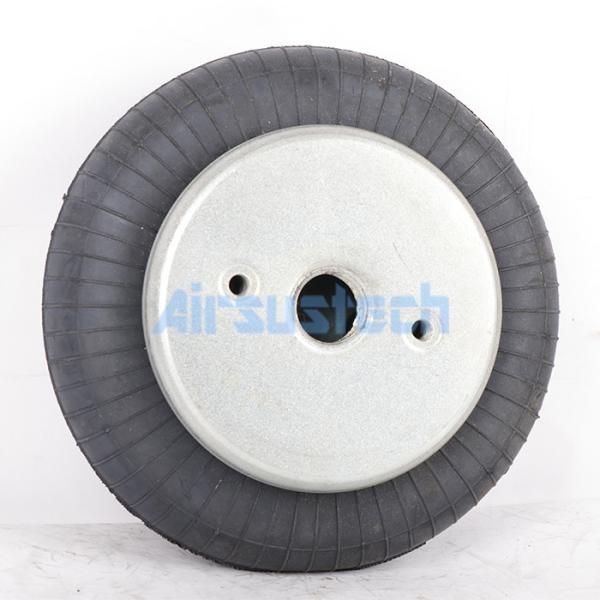

    Weforma WBE 300-E1 Convoluted Air Shock Suspension Cross Firestone W01-M58-6165

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B1209
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Weforma WBE 300-E1 Convoluted Air Shock Suspension Cross Firestone W01-M58-6165

    Weforma WBE 300-E1 Convoluted Air Shock Suspension Cross Firestone W01-M58-6165


    1B1209 Technical Datas


    • Bottom Cover Plate

    Bottom Plate Alignment: Parallel
    Bottom Plate Center To Center Diameter: 70 mm
    Bottom Plate Diameter: 135 mm
    Bottom Plate Hole Quantity: 2
    Bottom Plate Type: Steel

    • Top Cover Plate

    Top Plate Alignment: Parallel
    Top Plate Center To Center Diameter: 70 mm
    Top Plate Diameter: 135 mm
    Top Plate Hole Quantity: 3
    Top Plate Type: Steel

    • Rubber Bellow

    Bellow Maximum Diameter: 215 mm
    Expanded Height: 115 mm
    Compressed Height: 50 mm
    Spring Type: Single Convoluted
    Air Hole/Air Inlet/Gas Hole/Gas Fitting
    Air Inlet: G 3/4
    Nut/Blind Nuts Type: 2×M8×1.25


    OEM Cross References


    Firestone W01-M58-6165
    Contitech FS 120-9
    Dunlop 8''x1, S08101
    Bosch 822419003
    Festo EB-215-80
    Norgren PM/31081(8x1)
    Weforma WBE 300-E1
    Airtech 140293
    Airtech 111003/1B-190FB
    Megatech 1S120-9 3/4 M8

    Product Core Competitiveness


    1. Imported rubber
    It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.


    2. One-piece casting process
    Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.


    3. Ensure in-situ installation
    The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.


    4. Using high-quality steel
    Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.


    Other Single Convoluted Air Springs OEM Numbers


    1B12-305FS 40-6 CISP2906
    1B14-350FS 50-5 CISP2334
    1B14-352FS 70-7 CISP2913
    1B14-364FS 100-10 CISP1536
    1B15-376FS 120-10 CISP1537
    1B15-378FS 120-12 CISP2523
    1B12-313FS 200-10 CISP1540
    1B14-351FS 310-12 CISP1543
    1B14-362FS 330-11 CI
    1B15-377FS 330-14 CI
    1B15-375FS 530-11 CI
    FS 530-14 CI
    FS 960-12 CI
    FS 1330-11 CI

    Product Images



    Company Profile


    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
