Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension from wholesalers

    Buy cheap Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension from wholesalers
    • Buy cheap Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension from wholesalers
    • Buy cheap Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension from wholesalers
    • Buy cheap Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension from wholesalers
    • Buy cheap Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension from wholesalers

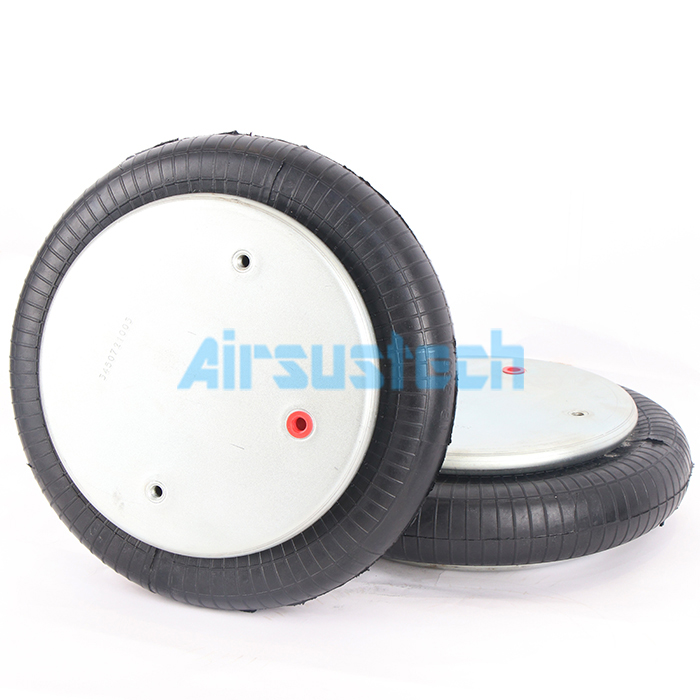

    Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5330
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension

    Triangle 6374 Single Convoluted Air Bellow Contitech FS 330-11 Air Suspension


    Other OEM Numbers


    Triangle: 6374

    Triangle: 4474

    Firestone: W01-358-7008

    Firestone: W01 358 7008

    Firestone: W013587008
    Contitech: FS 330-11 474

    Contitech: FS330-11 474

    Contitech: FS33011 474
    Goodyear: 1B12-300/313

    Goodyear: 1B 12-300/313

    Goodyear: 1B12300/313

    Goodyear: 1B12-313

    Goodyear: 1B 12-313

    Goodyear: 1B12313

    Holland(Neway): 90557226

    1B5330 Detailed Datas
    Diameter of the Top Cover Plate231 mm
    Center-to-Center Distance of Screws on the Top Cover Plate157.5 mm
    Diameter of the Bottom Cover Plate231 mm
    Center-to-Center Distance of Screws on the Bottom Cover Plate157.5 mm
    Screw (Nut) Thread Count for the Top Cover Plate2×3/8-16UNC
    Screw (Nut) Thread Count for the Bottom Cover Plate2×3/8-16UNC
    Air Inlet1/4 NPTF
    Maximum Diameter of the Rubber Bellow325 mm
    Maximum Height160 mm
    Minimum Height55 mm

    A Complete Production Capablity and Special Testing Facilities


    • German import WP GK-200A model of mixing machine and rubber mixing line
    • Italy technology and independent design improved cord breaking and bead wire production workishop
    • Air spring forming workshop
    • Air spring vulcanizing workshop
    • Pieces of metal processing workshop
    • Warehouse corner
    • Air spring crimping workshop
    • A first-class production technology and scientific production workshop, is to ensure that my company first-class product them in conditions
    Single Convoluted Air Rubber Bellows/Air Springs/Air Suspensions
    1B12-305FS 40-6 CISP2906
    1B14-350FS 50-5 CISP2334
    1B14-352FS 70-7 CISP2913
    1B14-364FS 100-10 CISP1536
    1B15-376FS 120-10 CISP1537
    1B15-378FS 120-12 CISP2523
    1B12-313FS 200-10 CISP1540
    1B14-351FS 310-12 CISP1543
    1B14-362FS 330-11 CI
    1B15-377FS 330-14 CI
    1B15-375FS 530-11 CI
    FS 530-14 CI
    FS 960-12 CI
    FS 1330-11 CI

    The Detailed Pictures





    Company Profile


    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
