    Continental Rubber Bellow FD 330-22 363 Contitech Double Convoluted Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6330
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Continental Rubber Bellow FD 330-22 363 Contitech Double Convoluted Air Spring

    Continental Rubber Bellow FD 330-22 363 Contitech Double Convoluted Air Spring


    2B6330 Detailed Specifications and Technical Parameters


    Cover Plate
    Top Cover Plate Diameter228 mm
    Screw Center Distance of Top Cover Plate157.5 mm
    Bottom Cover Plate Diameter228 mm
    Screw Center Distance of Bottom Cover Plate157.5 mm
    Nut/Blind Nuts
    Top Cover Plate Screw(Nut) Tooth2×M8×15
    Bottom Cover Plate Screw(Nut) Tooth2×M8×15
    Gas Hole/Air Inlet/Air Fitting
    Air ConnectionG1/4
    Rubber Bellow
    Rubber Bellow Max. Diameter325 mm
    Installation Space340 mm
    Compressed Height75 mm
    Max. Expanded Height305 mm

    Vibration isolation - dynamic characteristics

    Design height H: recommend 240mm, minimum 220mm

    Pressure p [bar]345678
    Force (Load) [kN]1013.316.720.624.127.6
    Spring Rate [N/mm]159190221252283314
    Natural Frequency [Hz]2.01.91.81.81.71.7

    Pneumatic application - static characteristics values

    Force F [kN]

    Pressure p[bar]345678
    Height H [mm]2657.9710.813.516.919.722.7
    22011.315.218.923.126.930.8
    18013.618.222.727.53236.5
    14015.420.525.531.136.341.3
    10016.822.127.834.139.845

    OEM Cross References


    Firestone: W01-358-7180 / W01 358 7180 / W013587180

    Contitech: FD 330-22 363 / FD330-22 363 / FD33022 363

    Goodyear: 2B12-425 / 2B 12-425 / 2B12425

    Triangle: 6316 / 4363

    Airkraft: 115061 / 3B-356 / 3B356 / 3B 356

    Vibracoustic: VSP2B22R7180

    EI Ride: 8030190

    Leland: Sc2075

    Navistar: 1685179C1

    Hendrickson: 1VA1816

    Ridewell: 1003587180C

    SAF Holland: 57007180

    Watson & Chalinl: AS0154 1G / 01881F

    Peerless: 0550 00001

    AIRSUSTECH Air Spring Features

    1. Low installation height
    In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
    the design height considerably.This allows compact constructions to be made.


    2. Angular movement
    Depending on the type, GUOMAT air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.


    3. Low purchase price
    The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

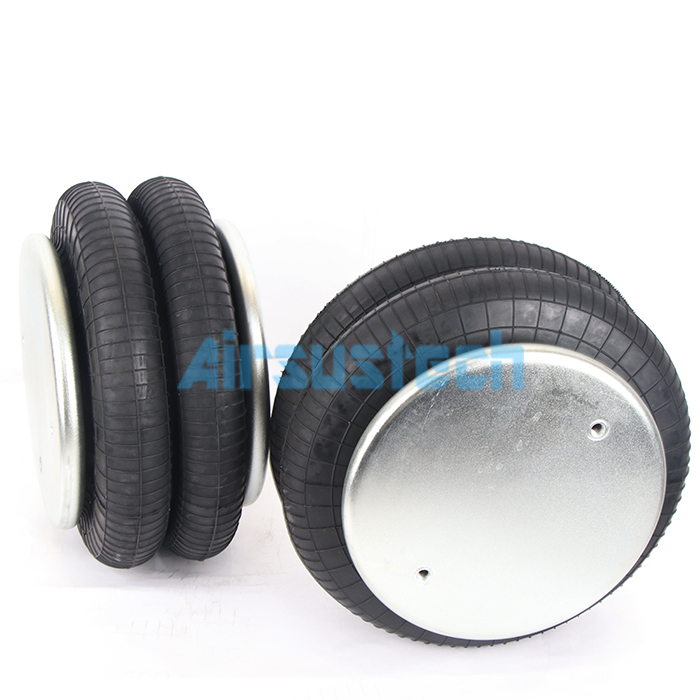

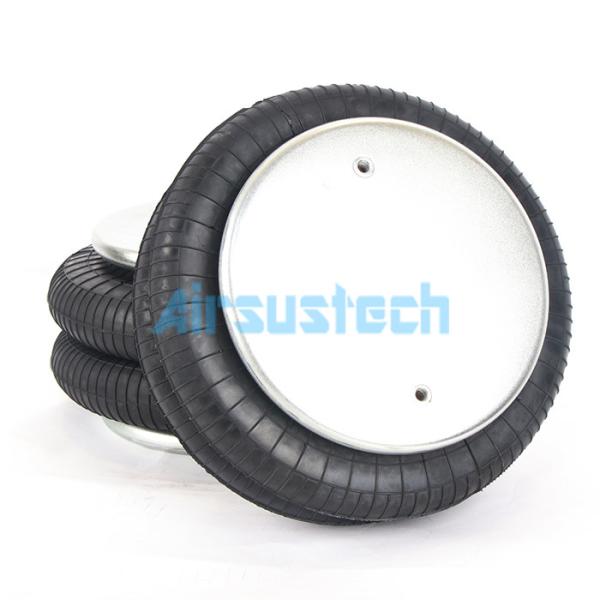

    2B6330 Detailed Photos




    Company Profile


    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
