    Triple Convoluted Type Bellows W01-358-8006 by Firestone Industrial Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B12-304
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Triple Convoluted Type Bellows W01-358-8006 by Firestone Industrial Air Spring

    Triple Convoluted Type Bellows W01-358-8006 by Firestone Industrial Air Spring


    OEM Cross References


    Firestone

    W01-358-8006, W01 358 8006, W013588006

    WO1-358-8006, WO1 358 8006, WO13588006

    Contitech

    FT 330-29 430, FT330-29 430, FT33029 430

    Goodyear

    3B12-304, 3B 12-304, 3B12304

    Goodyear

    578933100, 578 93 3 100, 578-93-3-100

    Triangle

    6334, 4430

    Leland

    Sc2132, Sc 2132

    Arvin Meritor

    200320


    Product Detailed Datas


    Diameter of the Top Cover Plate: 9.00 inches
    Center-to-Center Distance of Screws on the Top Cover Plate: 6.20 inches
    Diameter of the Bottom Cover Plate: 9.00 inches
    Center-to-Center Distance of Screws on the Bottom Cover Plate: 6.20 inches
    Screw (Nut) Thread Count for the Top Cover Plate: 3/8-16
    Screw (Nut) Thread Count for the Bottom Cover Plate: 3/8-16
    Air Inlet: 1/4 NPTF
    Minimum Height: 4.8 inches
    Product Applications
    • Large drying machines
    • Vibratory conveyors
    • Electronic equipment
    • Compressors
    • Conveyor loading points
    • Textile looms
    • Rotary shaft actuators
    • Conveyor or transfer systems
    • Vertical lift force for platforms and rotating tables
    • Injection or ejection of parts in manufacturing equipment
    • Scissor lifts
    We also Provide Other Types Air Shock Suspensions
    Single ConvolutedDouble ConvolutedTriple Convoluted
    1B12-3052B6-5302B6-5313B12-304
    1B14-3502B6-5322B6-5353B14-351
    1B14-3522B6-5362B7-5403B14-354
    1B14-3642B7-5412B7-5423B15-376
    1B15-3762B7-5452B7-5463B15-378
    1B15-3782B8-5502B8-5523B12-305
    1B12-3132B8-5532B8-5543B14-353
    1B14-3512B9-2002B9-2013B15-375
    1B14-3622B9-2042B9-2053B15-377
    1B15-3752B9-2162B9-250
    1B15-3772B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

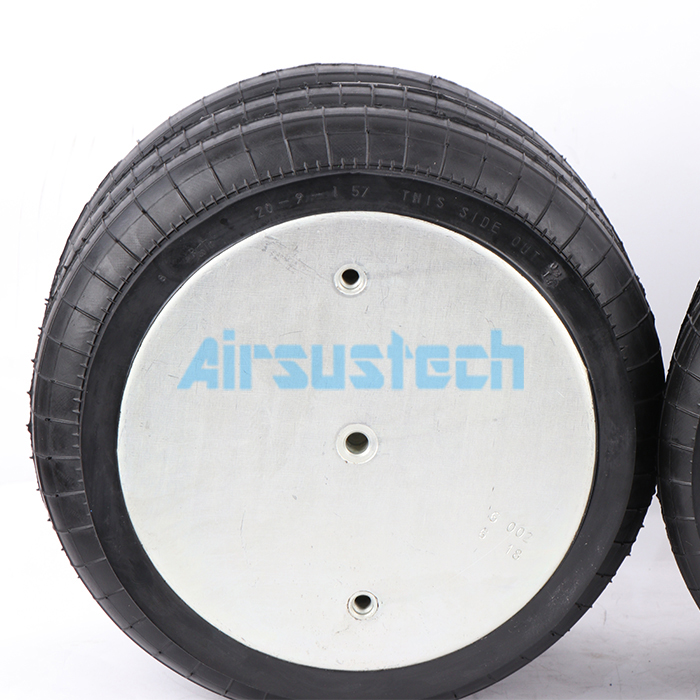

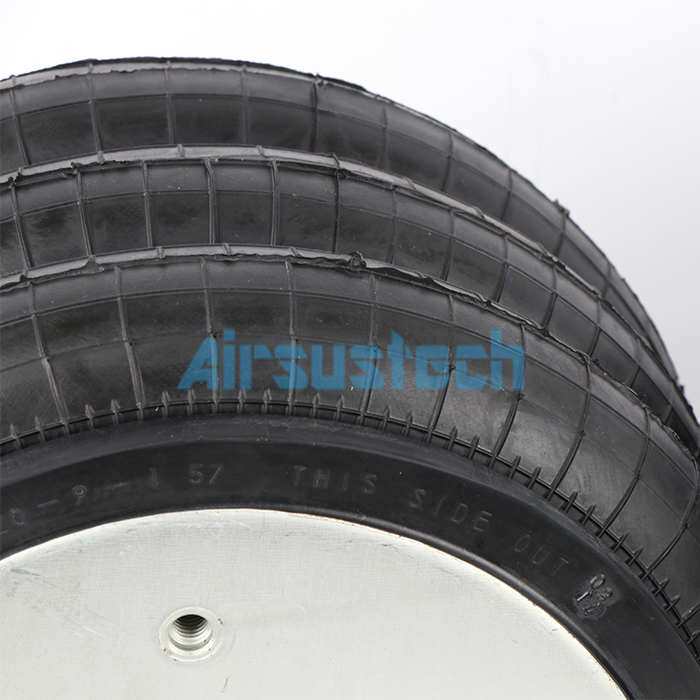

    The Real Pictures



    Company Profile


    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
