Firestone W01-358-7276 Rolled Plate Assembly 1/2 Blind Nuts Air
Suspension
Product Detailed Datas
| Top Cover Plate Diameter | 517 mm |
| Screw Center Distance of Top Cover Plate | 482 mm |
| Bottom Cover Plate Diameter | 517 mm |
| Screw Center Distance of Bottom Cover Plate | 482 mm |
| Top Cover Plate Screw(Nut) Tooth | 24(M10-10×1.5) bolts |
| Bottom Cover Plate Screw(Nut) Toot | 24(M10-10×1.5) bolts |
| Rubber Bellow Max. Diameter | 569 mm |
| Minimum Height | 114 mm |
| Maximum Height | 483 mm |

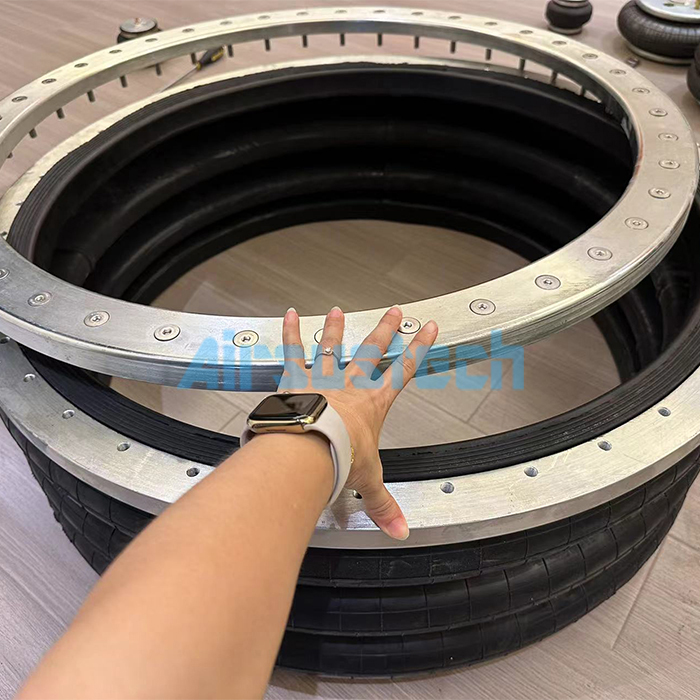

Firestone Style 320 Two Ply Bellows
- Rolled plate assembly, 1/2 blind nuts, 3/4NPT
W01-358-0987 / W01 358 0987 / W013580987
WO1-358-0987 / WO1 358 0987 / WO13580987
- Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts,
washers
W01-M58-6983 / W01 M58 6983 / W01M586983
WO1-M58-6983 / WO1 M58 6983 / WO1M586983
W01-358-7276/ W01 358 7276 / W013587276
WO1-358-7276 / WO1 358 7276 / WO13587276
Why Air Springs Outperform Steel Plates in Shock Absorption
1. Enhanced Comfort
Air springs outperform leaf springs in providing a smoother ride.
Leaf springs are heavy, stiff, and contribute to poor comfort.
Additionally, their long size limits vehicle suspension design, and
their connections often experience wear over time.
2. Improved Economy
Trucks with leaf spring suspensions typically require tire
replacements after 50,000 kilometers. With air springs, tire
lifespan improves significantly, allowing up to 100,000 kilometers
before replacement. This extends tire life by over 50%.
3. Superior Safety
Air springs ensure even load distribution across multiple axles,
unlike leaf springs, which concentrate the weight. On single axles,
air springs maintain balanced forces on both wheels, promoting pure
rolling contact with the ground, optimizing braking performance,
and enhancing safety overall.
4. Higher Reliability
Air spring components are rigorously tested for fatigue and
reliability in harsh conditions and have shown excellent
performance in real-world use. They reduce rigid contact and
friction, easing part wear, and boosting the reliability of the
chassis and electrical systems compared to leaf spring suspensions.
Other Triple Convoluted Air Rubber Bellows
| 3B12-304 | 3B12-305 | FT 330-29 CI | SP2910 |
| 3B14-351 | 3B14-353 | FT 430-32 CI | SP2895 |
| 3B14-354 | 3B15-375 | FT 530-32 CI | SP2923 |
| 3B15-376 | 3B15-377 | FT 530-35 CI | SP2861 |
| 3B15-378 | | FT 960-34 CI | SP2863 |
| | FT 1330-35 CI | SP1539 |
| | | SP1542 |
| | | SP1558 |
| | | SP2141 |
