Single Air Rubber Bellow Air Lift 58218 Goodyear 1B5-500 for
Material Transfer
The Introduction of Air Springs
Air bellows are an excellent solution for short stroke and high
thrust single-acting actuator needs. Constructed with
fabric-reinforced synthetic rubber and available in one, two, or
three convolutions based on the stroke and model, they excel in
performance. Unlike conventional pneumatic cylinders, they lack
reciprocating metal parts, delivering virtually frictionless
operation and superior efficiency.
1K130070 Air Springs Specifications and Technical Datas
Design Height: 70 mm
Compressed Height: 50 mm
Max. Expanded Height: 100 mm
Cover Plate Diameter: 85 mm
Center to Center Distance: 44.5 mm
Rubber Bellow Max. Diameter: 150 mm
Air Connection: G1/4
Screw Type: M8
| Load (kg) | Installation Height | Pressure | 0.2 MPa | 0.3 MPa | 0.4 MPa | 0.5 MPa | 0.6 MPa | 0.7 MPa | 0.8 MPa |
| 50 | (mm) | 157 | 219 | 286 | 376 | 450 | 523 | 611 |
| 60 | (mm) | 122 | 183 | 252 | 328 | 404 | 472 | 545 |
| 70 | (mm) | 107 | 170 | 238 | 304 | 377 | 439 | 501 |
| 80 | (mm) | 100 | 153 | 203 | 264 | 323 | 378 | 432 |
| 90 | (mm) | 73 | 112 | 160 | 209 | 260 | 300 | 334 |
| 100 | (mm) | 11 | 45 | 79 | 113 | 148 | 169 | 190 |
Other OEM Numbers
Air Lift: 58218
Goodyear: 1B5-500, 1B 5-500, 1B 5500
Goodyear Rubber Bellows NO.: 579-913-500, 579 913 500, 579913500
Airkraft Style 1B120
ContiTech Order No.: 61388
Enidine: YI 1B5 500, YI1B5500, YI-1B5-500
Enidine: YI-FS50-5-000, YI FS50 5 000, YIFS505000
Firestone No.: W02-358-5000, W023585000, W02 358 5000
Firestone: W01-358-7609, W01 358 7609, W013587609
Firestone Bellows No.: 16-ST, 16ST, 16 ST
Firestone No.: W01-358-7001, W013587001, W01 358-7001, W013587001
Firestone Bellows No.: 16
Firestone New Bellows No.: 16B
Numatics: ASNS1111, ASNS 1111

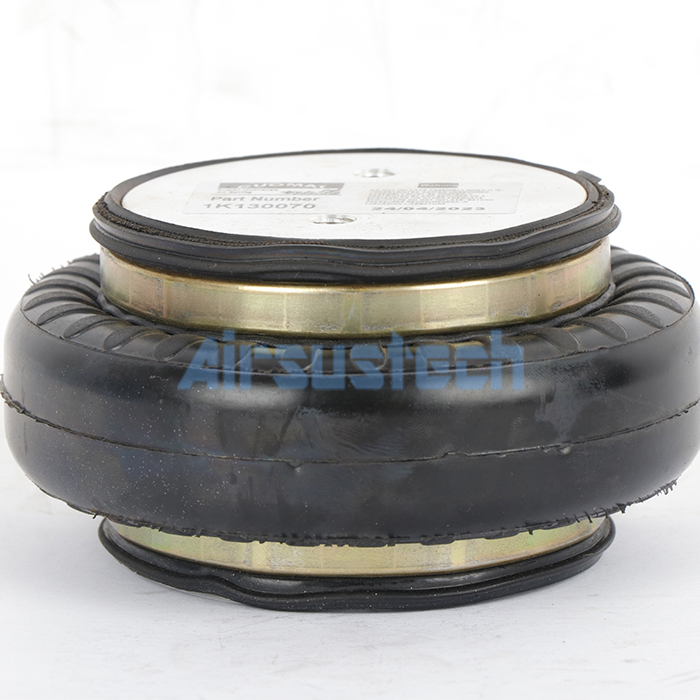

The Detailed Pictures
Company Profile
Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou,
China's first open port, just a fifteen-minute drive from Guangzhou
Baiyun International Airport. The company boasts a modern building
with an area of approximately 20,000 square meters and
state-of-the-art production facilities for rubber air springs. It
is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles,
rail vehicles, and industrial machinery and equipment. The main
products are: rubber air springs, bus airbags, truck airbags, air
springs for the paper machine industry, airbags for large washing
machines, and rubber air springs for automobiles. We currently
offer hundreds of models and designs and can also design and
produce according to customer requirements or existing product
specifications. New and existing customers are welcome to contact
us for a consultation. Our company utilizes state-of-the-art domestic air spring
processing facilities and integrates foreign air spring production
technologies. Thanks to our unique production process, we produce
according to international standards and thus create world-class
products.
Fctory Workshop
