    Firestone Style 244C Air Spring A01-760-0335 Double Convoluted Rubber Bellow

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B0335
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone Style 244C Air Spring A01-760-0335 Double Convoluted Rubber Bellow

    Firestone Style 244C Air Spring A01-760-0335 Double Convoluted Rubber Bellow


    Product Technical Datas


    Top Cover Plate Diameter 132 mm
    Screw Center Distance of Top Cover Plate 70 mm
    Bottom Cover Plate Diameter 132 mm
    Screw Center Distance of Bottom Cover Plate 70 mm
    Top Cover Plate Screw(Nut) Tooth 2×3/8-16UNC
    Bottom Cover Plate Screw(Nut) Tooth 2×3/8-16UNC
    Air Hole 3/8NPT
    Rubber Bellow Max. Diameter 203 mm
    Minimum Height 75 mm
    Maximum Height 230 mm


    Other OEM Numbers


    Firestone

    A01-760-0335, A01 760 0335, A017600335

    Firestone Style 244C

    WATSON & CHALIN

    AS-0092, AS0092, AS 0092

    CONTITECH

    FD200-19 510, FD 200-19 510, FD20019 510


    Precautions When Installing Air Springs


    1. Air springs must not be pressurized unless restrained by an external frame or appropriate load.
    2. Travel must be directly limited by shock absorbers or external stops. When stacking air springs, special care must be taken to ensure that the air springs are guided and secured.
    3. The air spring is a single-acting air cylinder and must not be used below atmospheric pressure.
    4. If it compresses quickly, check for overpressure.

    Double Convoluted Air Suspension OEM Numbers


    2B6-5302B6-531FD 40-10 CISP2907
    2B6-5322B6-535FD 70-13 CISP2441
    2B6-5362B7-540FD 110-15 CISP2917
    2B7-5412B7-542FD 120-17 CISP1482
    2B7-5452B7-546FD 120-20 CISP1490
    2B8-5502B8-552FD 200-19 CISP1538
    2B8-5532B8-554FD 200-22 CISP1541
    2B9-2002B9-201FD 200-25 CISP2782NB
    2B9-2042B9-205FD 330-22 CISP1556
    2B9-2162B9-250FD 330-30 CISP1557
    2B9-2512B9-253FD 530-22 CISP1408
    2B12-3092B12-218FD 530-35 CISP2342
    2B12-4252B12-429FD 960-22 CI
    2B12-4372B12-416FD 1330-25 CI
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

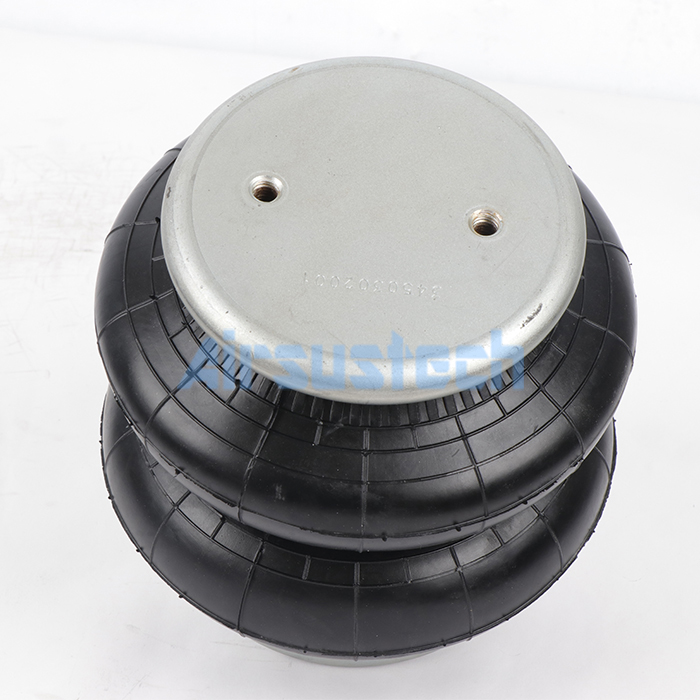

    2B0335 Detailed Pictures



    Company Profile


    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
