Brand Name : | AIRSUSTECH |
Model Number : | 1H1710-12 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T,Western Union,Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Part Number
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers | W01-358-7727, W013587727, W013587727 WO1-358-7727, WO13587727, WO13587727 |
Rolled plate assembly, 1/2 blind nuts, 3/4 NPT | W01-358-7726, W013587726, W013587726 WO1-358-7726, WO13587726, WO13587726 |
Rubber bellows only | W01-358-1026, W013581026, W013581026 WO1-358-1026, WO13581026, WO13581026 |
Product Specifications
Rubber Bellow Max. Diameter: 22.4 inches
Compressed Height: 2 inches
Max. Expanded Height: 6 inches
Type: single convoluted
Technical Parameters of 1H1710-12
Dynamic Characteristics at 5.0 in. Design Height | ||||
Volume @ 100 PSIG=1,315 in3 | Natural Frequency | |||
Gage Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
40 | 8,630 | 5,869 | 155 | 2.59 |
60 | 13,870 | 5,244 | 144 | 2.42 |
80 | 18,450 | 10,107 | 139 | 2.32 |
100 | 23,200 | 12,403 | 137 | 2.29 |
Force Table | ||||||
Assembly Height (in.) | Volume @ 100 PSIG (in3) | @ 20 PSIG | @ 40 PSIG | @ 60 PSIG | @ 80 PSIG | @ 100 PSIG |
Pounds Force | ||||||
6.0 | 1,694 | 1,800 | 4,000 | 7,100 | 10,900 | 15,000 |
5.0 | 1,473 | 4,220 | 8,630 | 13,870 | 18,450 | 23,200 |
4.0 | 1,196 | 5,200 | 10,840 | 16,630 | 22,460 | 28,070 |
3.0 | 875 | 6,010 | 12,040 | 19,020 | 25,960 | 32,000 |
Product Applications

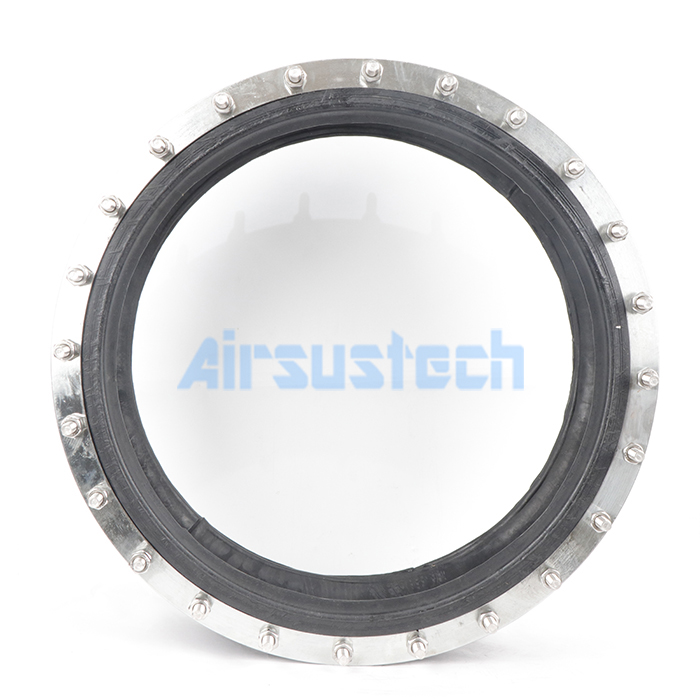

Product Detailed Pictures
![]() |
