    Mechanical Air Spring Dunlop Pneuride 10''×1 Air Connection G1/2 SP2523 Air Bag

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B10×1T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Mechanical Air Spring Dunlop Pneuride 10''×1 Air Connection G1/2 SP2523 Air Bag

    Mechanical Air Spring Dunlop Pneuride 10''×1 Air Connection G1/2 SP2523 Air Bag


    The Description of 1B10×1T Air Bag


    AIRSUSTECH 2B12×2T air spring with flange ring is compatible with Dunlop Pneuride 10''×1, Firestone W01-R58-4057, Dunlop Springride SP2523, Contitech FS 210-10 DS, Norgren M/31101, and Parker 9109024. Made from high-quality natural rubber, this air spring delivers excellent durability and performance. With features such as superior vibration isolation and shock absorption, it ensures stability in demanding environments. Backed by a 12-month warranty, the 2B12×2T is a reliable option for replacements and maintenance across various applications.


    OEM Part No


    Firestone Part NO.W01-R58-4057, W01R584057, W01 R58 4057Dunlop Pneuride Part NO.10''×1, 10'×1, 10×1
    Contitech Part NO.FS 210-10 DS, FS21010 DS, FS210-10 DSDunlop Springride Part NO.SP2523, SP 2523, SP 25 23
    Norgren Part NO.M/31101, M31101, M 31101Parker Part NO.9109024

    1B10×1T Detailed Datas


    Diameter of the Top Cover Plate: 210 mm
    Center-to-Center Distance of Screws on the Top Cover Plate: 181 mm
    Diameter of the Bottom Cover Plate: 210 mm
    Center-to-Center Distance of Screws on the Bottom Cover Plate: 210 mm
    Screw (Nut) Thread Count for the Top Cover Plate: 4×M10
    Screw (Nut) Thread Count for the Bottom Cover Plate: 4×M10
    Air Inlet/Air Connection/Port Size: G 1/2
    Natural Diameter of the Rubber Bellow: 235 mm
    Design Height: 118 mm


    Product Advantages


    Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as

    • Flexibility (no angle or alignment problem)
    • Compactness
    • Power / price ratio
    • No maintenance or lubrication required
    • Durability
    • Reliability
    • Resistance to aggressive or hot conditions

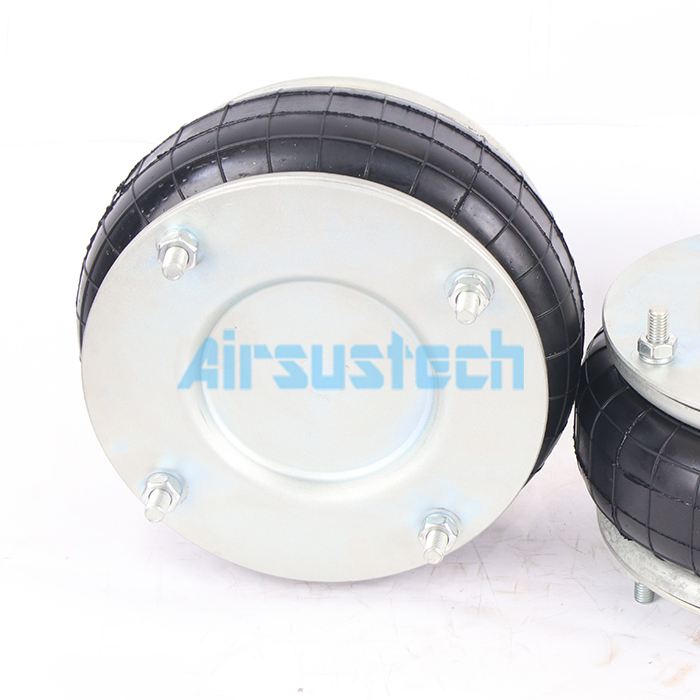

    The Related Photos
