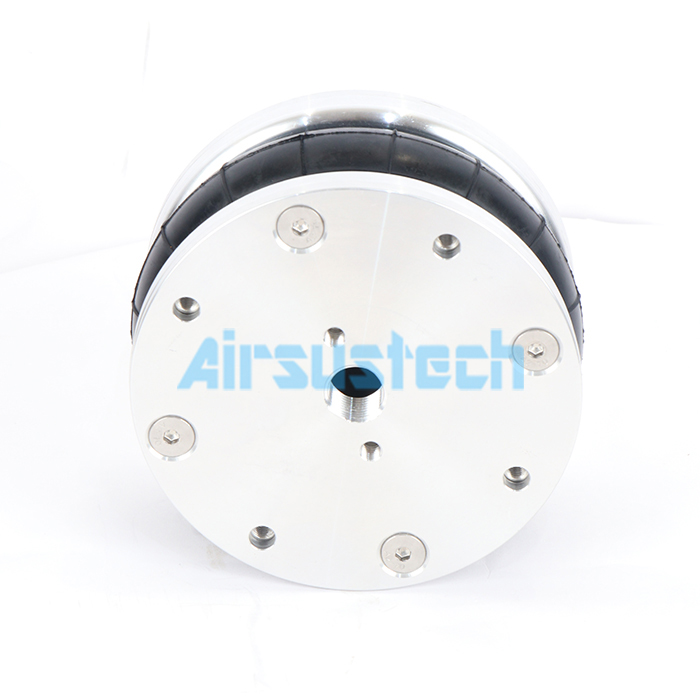

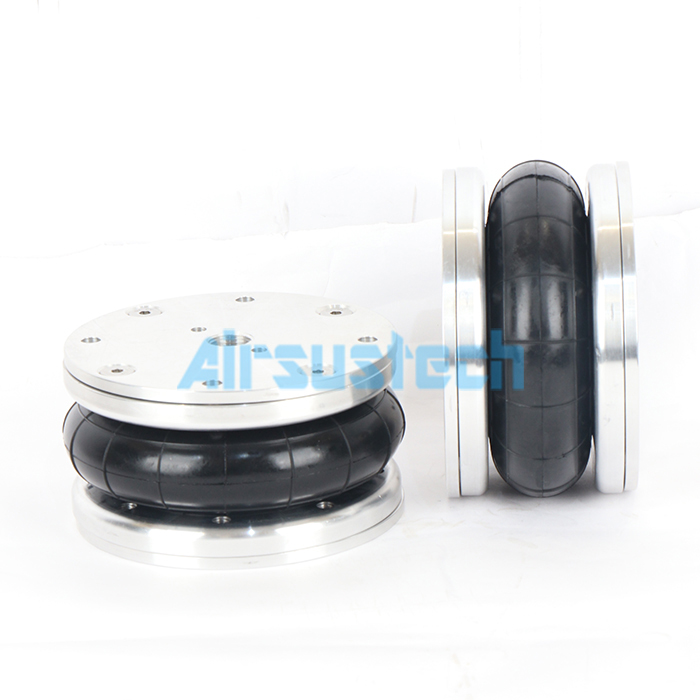

    6'' Diameter Air Bellow Norgren PM/31061 Single Compact Air Spring 6×1 Series

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B6×1P
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    6'' Diameter Air Bellow Norgren PM/31061 Single Compact Air Spring 6×1 Series

    6'' Diameter Air Bellow Norgren PM/31061 Single Compact Air Spring 6×1 Series


    1B6×1P Air Bellow Introduction


    The 1B6×1P air spring is a compact and efficient solution for vibration isolation and load absorption across various applications. Made with high-quality rubber materials, it ensures durability and reliable performance. Its lightweight design makes it ideal for systems requiring compact components without sacrificing strength. The 1B6×1P is widely compatible and recognized for its versatility in industrial and vehicular setups, offering excellent shock absorption and enhancing overall stability. This air spring is a cost-effective and dependable choice for improving system efficiency and longevity.


    1B6×1P Technical Data


    FunctionSingle acting
    MagneticNo
    Bore diameter (in)6
    Stroke length (mm)55
    Port Size (in)G1/2
    End caps materialAluminium
    FluidCompressed air
    Operating temperature (°C)from -30 to 70
    Operating pressure (bar)from 0 to 8
    VariantStandard

    OEM Cross References


    Firestone NO.: W01-R58-4078, W01R584078, W01 R58 4078
    Dunlop Pneuride NO.: 6''×1, 6'×1, 6×1
    Dunlop Springride NO.: SP2913, SP 2913, SP 29 13
    Contitech NO.: FS 76-7 DI, FS76-7 DI, FS767 DI
    Norgren NO.: PM/31061, PM31061, PM 31061
    Parker NO.: 9109004A


    How Air Springs Work on Bark Peeling Machine


    Air springs are commonly used in bark peeling machines to provide shock absorption and isolation from vibrations. An air spring consists of a cylindrical elastomeric bellow sealed between two end plates to form a chamber. When compressed air is added to the chamber, the bellow expands and lifts the upper plate, lifting the load on top of the air spring. The air spring provides a cushion-like effect that isolates the load from shocks and vibrations. The amount of load carried by the air spring can be adjusted by varying the air pressure in the chamber. Guangzhou Guomat Air Spring, a Guangzhou-based company, supplies and installs air spring suspension systems for a variety of industrial applications.
    Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standards of production, to create a world-class products.


    The Related Photos


    Quality 6'' Diameter Air Bellow Norgren PM/31061 Single Compact Air Spring 6×1 Series for sale
