Brand Name : | AIRSUSTECH |
Model Number : | 1B8×1T |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T,Western Union,Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Air Spring Introduction
The 1B8×1T Air Bellow is a durable and efficient air spring designed for a variety of industrial and vehicular applications. Known for its excellent shock absorption, vibration isolation, and load-supporting capabilities, this air bellow is essential for improving overall performance in demanding environments. Manufactured with high-quality rubber, the 1B8×1T offers exceptional elasticity and resistance to wear, making it suitable for long-term use under heavy loads. Its robust design ensures reliable functionality across different systems, including trucks, buses, and industrial machinery, where stability and reduced vibrations are critical.
Cross References
Firestone W01-R58-4054
Dunlop Pneuride 8×1
Dunlop Springride SP1537
Contitech FS 138-8 DS
Norgren M/31081
Parker 9109014
1B8×1T Rubber Bellow Technical Details
Rubber bellow natural diameter: 205 mm
Design height: 130 mm
Cover plate width: 183.5 mm
Center to center distance: 155.5 mm
Air inlter: G 1/2
Screw type: 4×M10
AIRSUSTECH Has Other Single Convoluted Flange Air Springs
AIRSUSTECH NO. | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
2 3/4''×1 | 2 3/4''×1 | SP2906 | FS 22-3 DI | 9109025 | ||
4 1/2''×1 | W01R584050 | 4 1/2''×1 | SP2334 | FS 44-5 DI | PM/31041 | 9109400 |
1B6×1T(AI) | W01R584078 | 6''×1(Al) | SP2913 | FS 76-7 DI | PM/31061 | 9109004A |
1B6×1T(Steel) | W01R584052 | 6''×1(Steel) | SP1536 | FS 76-7 DS | M/31061 | 9109004 |
1B8×1T | W01R584054 | 8''×1 | SP1537 | FS 138-8 DS | M/31081 | 9109014 |
1B10×1T | W01R584057 | 10''×1 | SP2523 | FS 210-10 DS | M/31101 | 9109024 |
1B12×1T | W01R584060 | 12''×1 | SP1540 | FS 412-10 DS | M/31121 | 9109044 |
1B14 1/2''×1T | W01R584063 | 14 1/2''×1 | SP1543 | FS 614-13 DS | M/31141 | 9109064 |
1B16×1T | W01R584066 | 16''×1 | FS 816-15 DS | M/31161 | 9109126 |

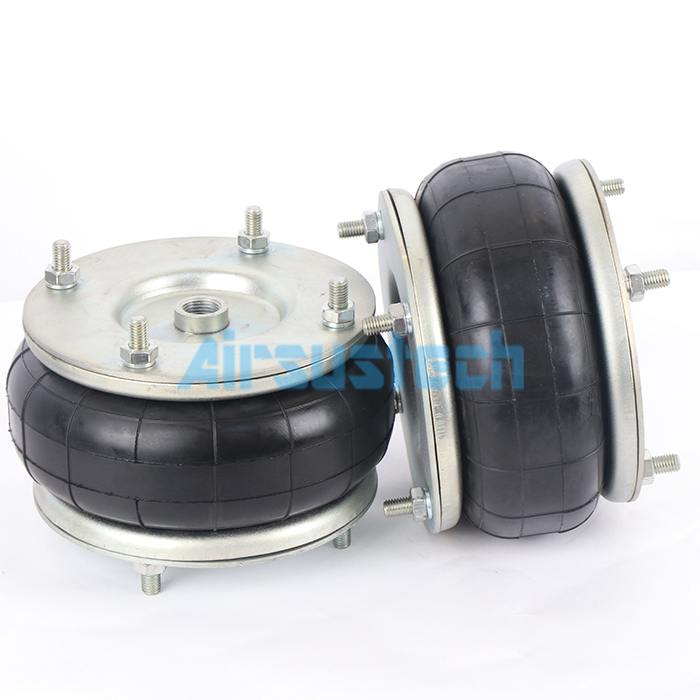

The Detailed Pictures
![]() |
