    Original Flange Double Convoluted Air Spring 2B12×2T Norgren M/31122 Air Bellow

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B12×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Original Flange Double Convoluted Air Spring 2B12×2T Norgren M/31122 Air Bellow

    Original Flange Double Convoluted Air Spring 2B12×2T Norgren M/31122 Air Bellow


    The Description of 2B12×2T Air Bag


    AIRSUSTECH 2B12×2T air spring with flange ring is compatible with Norgren M/31122, Firestone W01-R58-4061, Dunlop Pneuride 12" x 2, Dunlop Springride SP1541, Contitech FD 412-22 DS, and Parker 9109041. Made from high-quality natural rubber, this air spring delivers excellent durability and performance. With features such as superior vibration isolation and shock absorption, it ensures stability in demanding environments. Backed by a 12-month warranty, the 2B12×2T is a reliable option for replacements and maintenance across various applications.


    The Detailed Datas of 2B12×2T Air Spring


    Diameter of the Top Cover Plate: 300 mm
    Center-to-Center Distance of Screws on the Top Cover Plate: 232 mm
    Diameter of the Bottom Cover Plate: 300 mm
    Center-to-Center Distance of Screws on the Bottom Cover Plate: 232 mm
    Screw (Nut) Thread Count for the Top Cover Plate: 4×M10
    Screw (Nut) Thread Count for the Bottom Cover Plate: 4×M10
    Air Inlet/Air Connection/Port Size: G 1/2
    Natural Diameter of the Rubber Bellow: 300 mm
    Design Height: 180 mm
    Installation Space: 325 mm


    Superseded Part Number


    NorgrenM/31122 / M 31122 / M31122
    Firestone

    W01-R58-4061 / W01R584061 / W01R584061

    WO1-R58-4061 / WO1R584061 / WO1R584061

    Dunlop Pneuride12''x2 / 12'x2 / 12x2
    Dunlop SpringrideSP1541 / SP 1541 / SP 15 41
    ContitechFD 412-22 DS / FD412-22 DS / FD41222 DS
    Parker9109041

    Product Application


    The air shock suspensions are widely used in: machinery, petroleum, chemical industry, metallurgy, textile, printing and dyeing, papermaking, printing, cement, wood, thermal power, medicine, food, electronics, packaging, beverage, meat cutting, sewage treatment and other advanced equipment in the industry.


    FAQ


    Q1: What is your advantage?
    A1: (1) High quality - Natural rubber.
    (2) Fast delivery - Stock sales.
    (3) Best service - 24 hours online.


    Q2: What is the model number of the Suspension Air Springs?
    A2: The model number of the Suspension Air Springs is 2B12×2T.


    Q3: Where are the Suspension Air Springs manufactured?
    A3: The Suspension Air Springs are manufactured in Guangzhou, China.

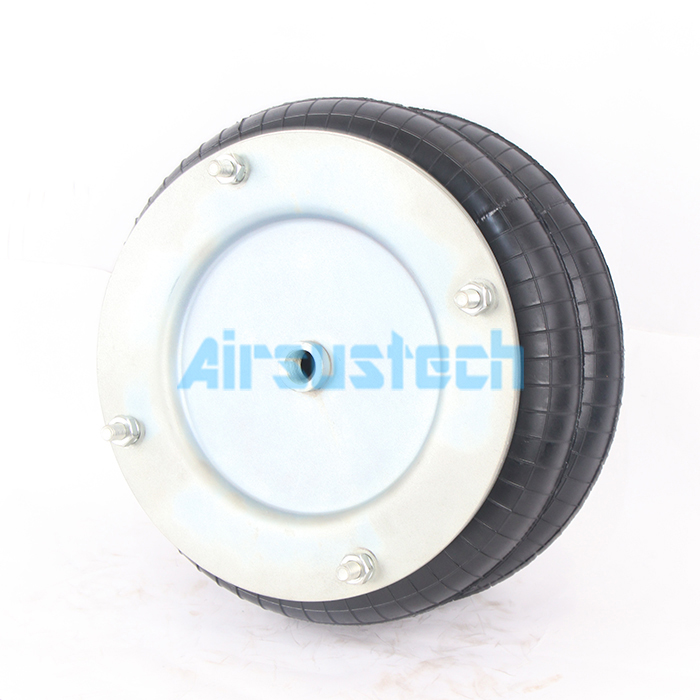

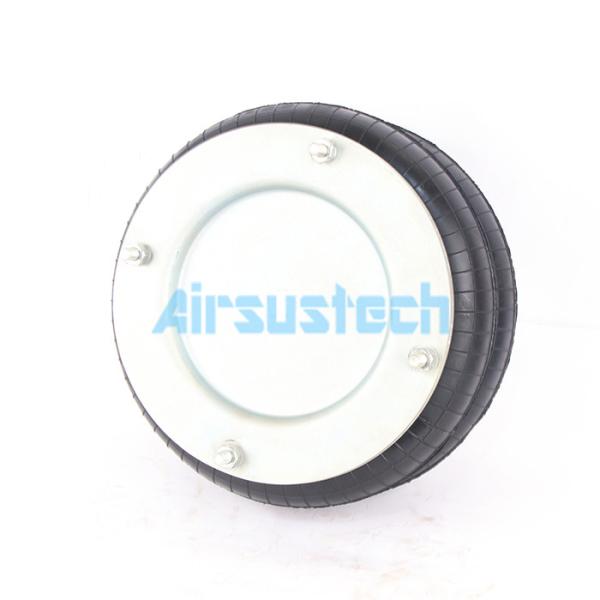

    The Detailed Pictures
