    SP1490 Dunlop Springride Pneumatic Air Bellow 8'' Diameter Flange Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B8×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    SP1490 Dunlop Springride Pneumatic Air Bellow 8'' Diameter Flange Air Spring

    SP1490 Dunlop Springride Pneumatic Air Bellow 8'' Diameter Flange Air Spring


    Air Spring Description


    The AIRSUSTECH flange air spring 2B8×2T is a versatile and durable solution designed to serve as a replacement for a variety of well-known brands. This air spring is engineered to match and replace Dunlop Springride SP1490, Firestone W01-R58-4055, Dunlop Pneuride 8''×2, Contitech FD 138-18 DS, Norgren M/31082, and Parker 9109011. Its high-quality construction, combined with precise compatibility, allows it to perform efficiently in demanding industrial and automotive applications. Crafted with natural rubber and reinforced materials, the AIRSUSTECH 2B8×2T ensures reliable performance, enhanced elasticity, and long-term durability. This makes it an ideal choice for maintaining optimal functionality and reducing wear across diverse systems.


    2B8×2T Air Suspension Technical Datas


    TypeMax. DiameterMinimum Height (mm)Maximum Height (mm)Total StrokeStatic Height (mm)C to C DiameterSpace Required
    41/2×2125651458010093140
    6×216873170100120127180
    8×223072225153150156240
    91/4×226070240170160168275
    10×228070240170160181295
    12×233074240166160232345
    141/2×239570280210180283410
    16×243077320243180283445

    2B8×2T Replaces These Air Rubber Bellows


    Firestone Air Spring

    W01-R58-4055, W01R584055, W01R584055

    WO1-R58-4055, WO1R584055, WO1R584055

    Dunlop Pneuride Air Spring

    8''×2, 8'×2, 8×2

    Dunlop Springride Air Spring

    SP1490, SP 1490, SP 14 90

    Contitech Air Spring

    FD 138-18 DS, FD138-18 DS, FD13818 DS

    Norgren Air Spring

    M/31082, M31082, M 31082

    Parker Air Spring

    9109011


    Precautions for Installing Air Springs


    1) Airsprings must not be pressurised unless they are restricted by an outside frame or by a suitable load.
    2) Strokes must be limited by the direct use of bump stops or external stops. When stacking airsprings, special cares must be taken to ensure the airsprings are guided and fixed
    3) An Airspring is a single acting air actuator and must not be used below atmospheric pressure.
    4) Please check the overpressure in case of quick compression

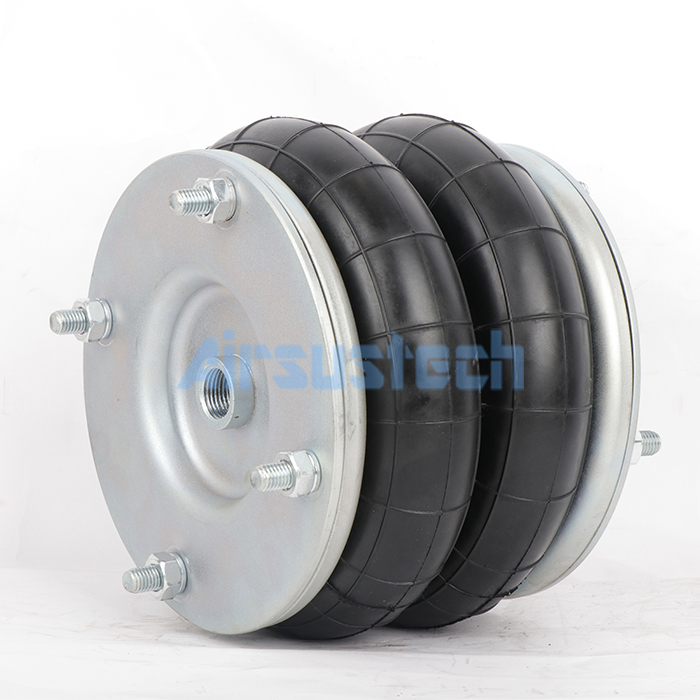

    Product Images
