FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws from wholesalers

    Buy cheap FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws from wholesalers
    • Buy cheap FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws from wholesalers
    • Buy cheap FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws from wholesalers
    • Buy cheap FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws from wholesalers
    • Buy cheap FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws from wholesalers

    FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws

    FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws


    OEM Part Numbers


    Contitech Part Number FD76-14 DS

    Contitech Part Number FD 76-14 DS

    Contitech Part Number FD7614 DS

    Dunlop Springride Part Number SP1482

    Dunlop Springride Part Number SP 1482

    Dunlop Springride Part Number SP 14 82

    Firestone Part Number W01-R58-4053

    Firestone Part Number W01 R58 4053

    Firestone Part Number W01R584053

    Dunlop Pneuride Part Number 6" x 2 (Steel)

    Dunlop Pneuride Part Number 6' x 2 (Steel)

    Dunlop Pneuride Part Number 6 x 2 (Steel)

    Norgren Part Number M/31062

    Norgren Part Number M31062

    Norgren Part Number M 31062

    Parker Part Number 9109001

    Product Dimensions


    Maximum Diameter: 168 mm

    Space Required: 180 mm

    Minimum Height: 73 mm

    Total Stroke: 97 mm

    Design Height: 120 mm

    Bellows Weight: 2.25 kg


    The Advantages of 2B6×2T Air Actuator


    1. Excellent materials
    2. Effective shock
    3. In situ installation
    4. Comfortable and stable
    5. Long life
    6. Slove the abnormal noise


    Other Double Convoluted Type Air Bags with Flange Ring


    AIRSUSTECH NO.FirestoneDunlop PneurideDunlop SpringrideContitechNorgrenParker
    2 3/4''×22 3/4''×2SP2904FD 22-4 DI9109009
    2B4.5×2W01R5840514 1/2''×2SP2441FD 44-10 DIPM/310429109401
    2B4.5×2-E
    2B6×2T(AI)W01R5840706''×(AI)SP2917FD 76-14 DIPM/310629109001A
    2B6×2T(Steel)W01R5840536''×2(Steel)SP1482FD 76-14 DSM/310629109001
    2B8×2TW01R5840558''×2SP1490FD 138-18 DSM/310829109011
    2B10×2TW01R58405810''×2SP1538FD 210-22 DSM/311029109021
    2B12×2TW01R58406112''×2SP1541FD 412-22 DSM/311229109041
    2B12''×2-EW01R58403912''×2 ExtendSP2782NB
    2B14 1/2''×2TW01R58406414'' 1/2×2SP1556FD 614-26 DSM/311429109061
    2B16×2TW01R58406716''×2SP1557FD 816-30 DSM/311629109171
    2B21 1/2''×2T21 1/2''×2SP1408M/312129109153
    2B26''×2T26''×2SP2342M/312629109159

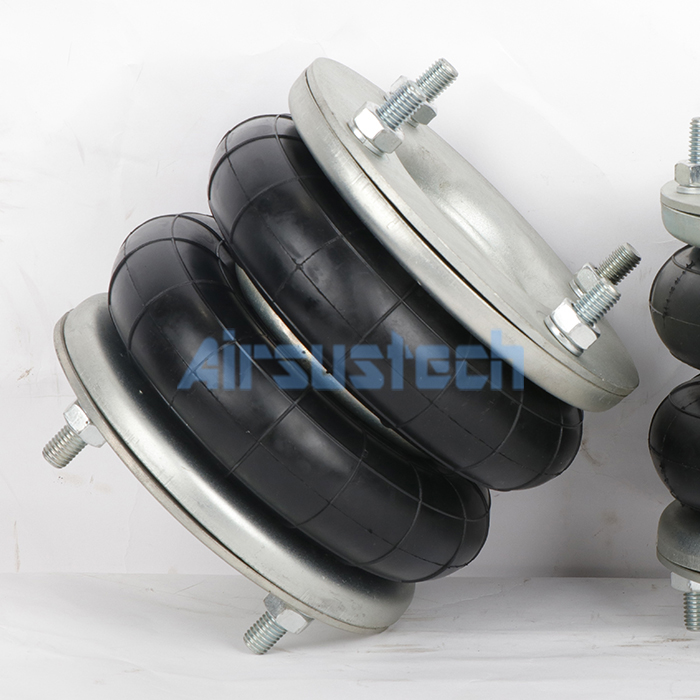

    The Detailed Pictures



    Quality FD 76-14 DS Continental Bellows Style Convoluted Air Spring with 4×M10 Screws for sale
