    3/4 NPT Pneumatic Connection Air Bag W01-358-7605 Firestone Air Bellow Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8×6
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    3/4 NPT Pneumatic Connection Air Bag W01-358-7605 Firestone Air Bellow Spring

    3/4 NPT Pneumatic Connection Air Bag W01-358-7605 Firestone Air Bellow Spring


    1B8×6 Air Spring Cross References


    Firestone Air Bellow: W01-358-7605

    Firestone Air Bellow: W01 358 7605

    Firestone Air Bellow: W013587605

    Firestone Air Bellow: W01-358-7598

    Firestone Air Bellow: W013587598

    Firestone Air Bellow: W01 358 7598
    Goodyear Air Bellow: 1B8-580

    Goodyear Air Bellow: 1B8580

    Goodyear Air Bellow: 1B 8-580


    1B8×6 Air Actuator Specifications


    Cover Plate
    Top Cover Plate Diameter: 5.31 inches
    Screw Center Distance of Top Cover Plate: 2.75 inches
    Bottom Cover Plate Diameter: 5.31 inches
    Screw Center Distance of Bottom Cover Plate: 2.75 inches
    Nut/Blind Nuts
    Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
    Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
    Gas Hole/Air Inlet/Air Fitting
    Air Hole: 1/4 NPT

    Rubber Bellow
    Rubber Bellow Max. Diameter: 9.6 inches
    Minimum Height: 2 inches
    Maximum Height: 7 inches


    Product Advantages


    1. Unlock Incredible Savings Compared to OEM/Dealer Costs
    2. Experience Superior Performance
    3. Backed by a Reliable 1-Year Warranty for Peace of Mind
    4. Brand New and Ready to Elevate Your Driving Experience
    5. Guaranteed safe & secure checkout

    1B Style Industrial Air Bellows We Have


    AIRSUSTECH NO.Cross References
    1B53014

    Contitech FS 530-14
    Triangle AS-4442
    W01-358-7103
    FleetPride AS7103
    Goodyear 1B14-350
    Goodyear Flex No. 578913351
    Taurus 6326
    TRP AS71030
    Peerless 0550-00015

    1B9×5

    Goodyear 1B9-204
    Goodyear 1B9-202
    Goodyear Bellow No. 578-91-3-201

    1B7070

    Contitech FS 70-7
    Phoenix SP 1B 05
    Bosch 8224 19002
    Festo EB-165-65
    Weforma WBE 200-E1
    Firestone W01-M58-6155

    1B4060

    Contitech FS 40-6
    Phoenix SP1B04
    Weforma WBE100-E1

    1B6910

    Firestone W01-M58-6374
    Contitech FS 200-10
    Phoenix SP 1B 12
    Dunlop(FR) 9 1/4x1 S09101
    Bosch 822419004
    Festo EB-250-85
    Norgren PM/31091(8 1/4x1)

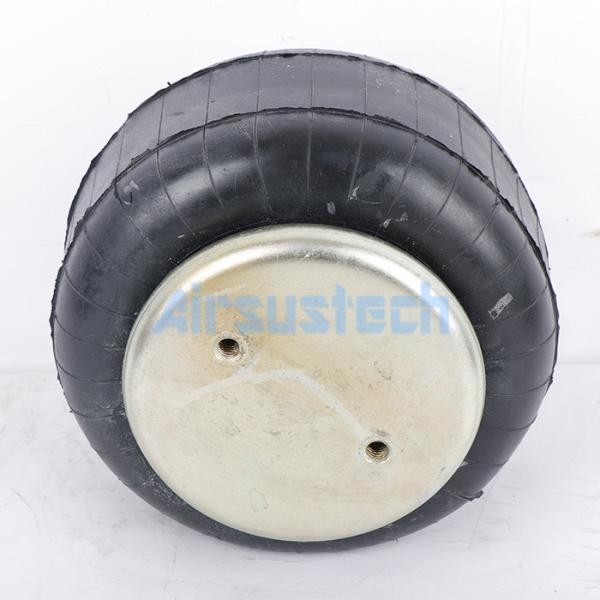

    Air Actuator Real Pictures
