    Certification ISO/TS16949 Air Spring Dunlop Springride SP1482 Pneumatic Air Bellow

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Certification ISO/TS16949 Air Spring Dunlop Springride SP1482 Pneumatic Air Bellow

    Certification ISO/TS16949 Air Spring Dunlop Springride SP1482 Pneumatic Air Bellow


    2B6×2T Air Spring Technical Datas


    TypeMax. DiameterMinimum Height (mm)Maximum Height (mm)Total StrokeStatic Height (mm)C to C DiameterSpace Required
    4 1/2×2125651458010093140
    6×216873170100120127180
    8×223072225153150156240
    91/4×226070240170160168275
    10×228070240170160181295
    12×233074240166160232345

    OEM Part Numbers


    Dunlop Springride Part Number SP1482

    Dunlop Springride Part Number SP 1482

    Dunlop Springride Part Number SP 14 82

    Firestone Part Number W01-R58-4053

    Firestone Part Number W01 R58 4053

    Firestone Part Number W01R584053
    Dunlop Pneuride Part Number 6" x 2 (Steel)

    Dunlop Pneuride Part Number 6' x 2 (Steel)

    Dunlop Pneuride Part Number 6 x 2 (Steel)
    Contitech Part Number FD76-14 DS

    Contitech Part Number FD 76-14 DS

    Contitech Part Number FD7614 DS
    Norgren Part Number M/31062

    Norgren Part Number M31062

    Norgren Part Number M 31062
    Parker Part Number 9109001


    2B6×2T Air Actuator Applications


    • Expanded Metal Machine
    • Concrete Brick Machine
    • Rotating Table with the Air Spring
    • Crushing Machine
    • Concrete Screening Machine
    • Carpet Extraction Machine
    • Commercial Laundry Machines
    • Coordinate Measuring Tables and Machinery
    • Centrifugal Separators
    • Large Drying Machines
    • Vibratory Conveyors
    • Electronic Equipment
    • Compressors
    • Conveyor Loading Points
    • Textile Looms
    • Rotary Shaft Actuators

    Storage Precautions of Air Suspensions


    1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight.
    2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
    3. Air springs are best stored in a free state without any external force.
    4. Do not store in an environment with a temperature exceeding 50 degrees Celsius.

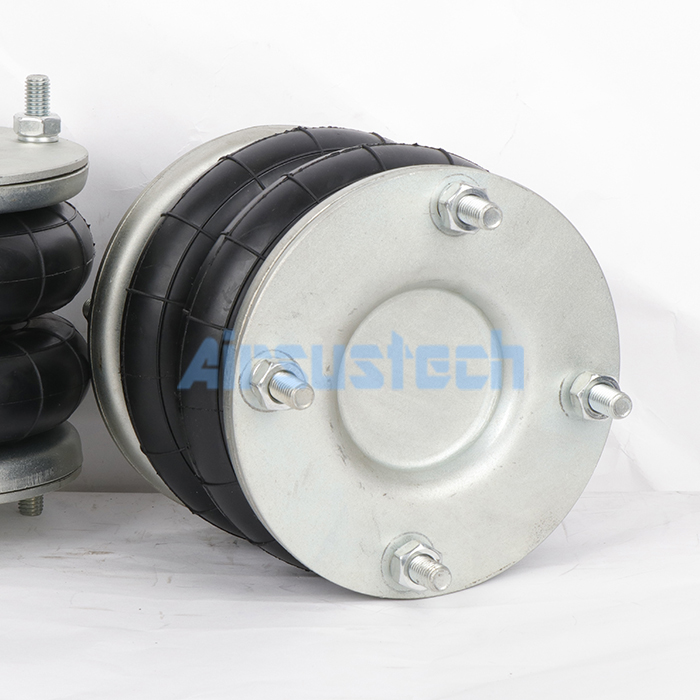

    2B6×2T Detailed Pictures


    Quality Certification ISO/TS16949 Air Spring Dunlop Springride SP1482 Pneumatic Air Bellow for sale
