    Single Convoluted Air Actuator 1B5-550 By Goodyear Air Spring Total Stroke 70MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5510S
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Single Convoluted Air Actuator 1B5-550 By Goodyear Air Spring Total Stroke 70MM

    Single Convoluted Air Actuator 1B5-550 by Goodyear Air Spring Total Stroke 70MM


    Overview of 1B5510S Air Spring


    The AIRSUSTECH Air Suspension 1B5510S is a single convoluted air spring equipped with a durable stainless steel cover plate. It serves as a direct replacement for Goodyear 1B5-550, Goodyear Bellow NO. 579-91-3-501, and Enidine Inc. YI-1B5-510. The rubber bellow is crafted from high-quality natural rubber, ensuring excellent performance and extended durability. Additionally, we provide a 12-month after-sales service to guarantee customer satisfaction and support.

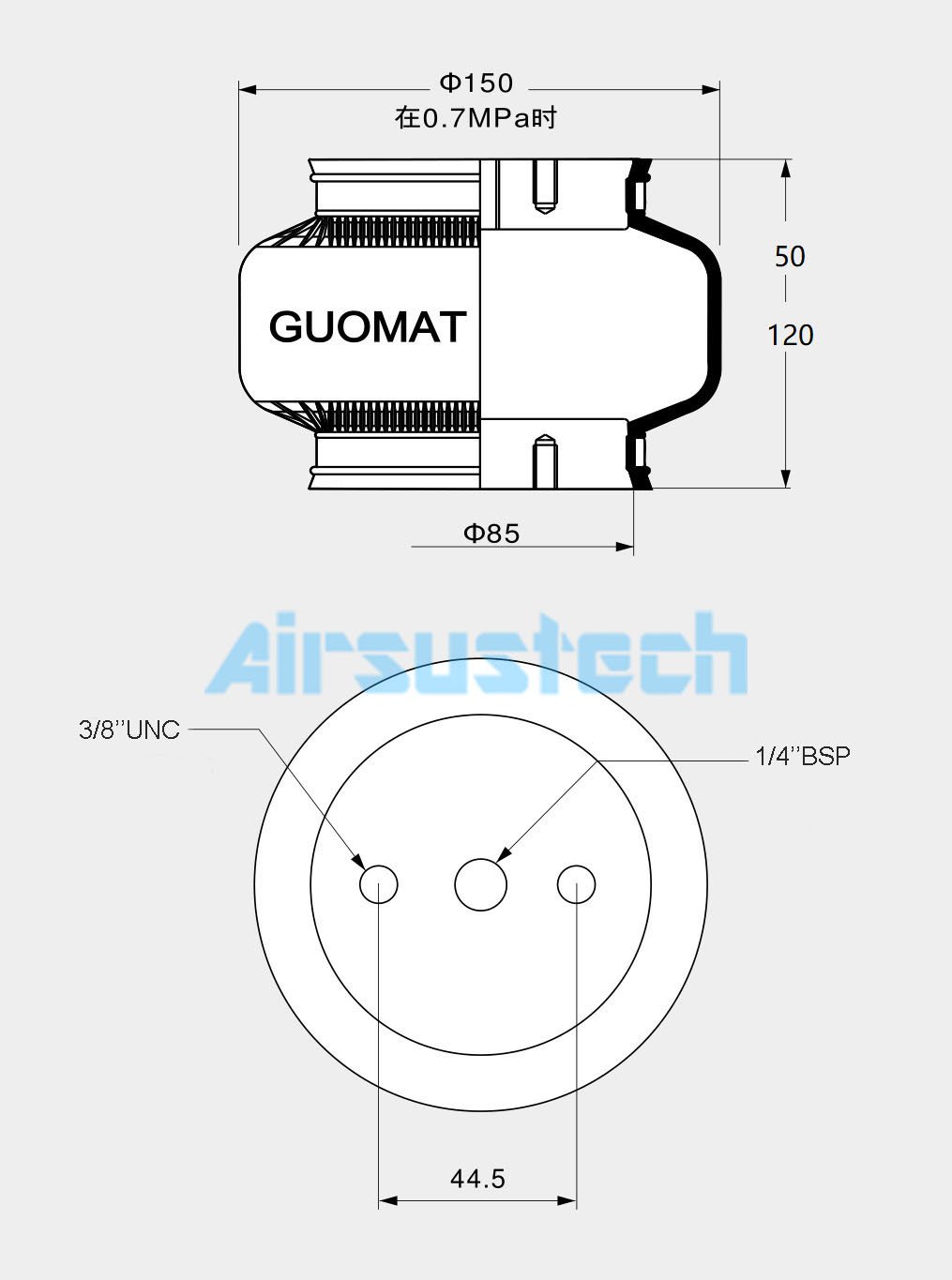

    1B5510S Air Suspension Technical Datas


    Top Cover Plate
    The Diameter of Top Cover Plate85 mm
    Screw (nut) Teeth of The Top Cover Plate2×3/8''UNC
    Center to Center Distance of Top Cover Plate44.5 mm
    Bottom Cover Plate
    The Diameter of Bottom Cover Plate85 mm
    Screw (nut) Teeth of The Bottom Cover Plate2×3/8''UNC
    Air Hole / Air Inlet / Gas Hole / Gas Fitting
    Air Connection1/4''BSP
    Rubber Bellows
    TypeSingle Convoluted Air Spring
    Compressed Height50 mm
    Max. Expanded Height120 mm
    Full Stroke70 mm
    Maximum Bellow Diameter150 mm

    OEM Cross References


    For Goodyear Air Spring: 1B5-550, 1B 5-550, 1B5550
    For Goodyear Bellow NO. 579-91-3-501, 579 91 3 501, 579913501
    For Enidine Inc. YI-1B5-510, YI 1B5 510, YI1B5510


    Packaging & Shipping


    Packing Details
    1. One piece in a poly bag.1piece in a carton.
    2. Mark the product numbers and the QTY outside the carton.
    3. As your requirement.


    Shipping Details
    1.Delivery time: Usually 2-8 working days after receiving the payment.
    2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
    3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.


    We Have Other Goodyear Convoluted Air Shock Actuators


    1B12-3052B6-5302B6-5313B12-304
    1B14-3502B6-5322B6-5353B14-351
    1B14-3522B6-5362B7-5403B14-354
    1B14-3642B7-5412B7-5423B15-376
    1B15-3762B7-5452B7-5463B15-378
    1B15-3782B8-5502B8-5523B12-305
    1B12-3132B8-5532B8-5543B14-353
    1B14-3512B9-2002B9-2013B15-375
    1B14-3622B9-2042B9-2053B15-377
    1B15-3752B9-2162B9-250
    1B15-3772B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

    Air Shock Suspension Related Pictures of 1B5510S
