Brand Name : | AIRSUSTECH |
Model Number : | 1B4060 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Prodcut Details
Contitech Air Spring | FS 40-6 G1/8 M8 |
Phoenix Air Spring | SP1B04 |
Weforma Air Spring | WBE 100-E1 |
Packing | Strong Cartons |
Type | 1B4060 |
Transport | By Sea/By Air/By DHL/By FedEx/By UPS By Air,By Sea,By Express (DHL,UPS,FEDEX...) |
1B4060 Technical Datas
Vibration isolation - dynamic characteristics values
Design height H: recommend 90mm, minimum 70mm
Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
Force (Load) [kN] | 1.7 | 2.3 | 2.8 | 3.4 | 3.8 | 4.4 | 0.5 |
Spring rate [N/cm] | 760 | 990 | 1220 | 1480 | 1610 | 1820 | |
Natural frequency [Hz] | 3.5 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 |
Pneumatic application - static characteristics values
Pressure P | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. [l] |
Height H [mm] | 100 | 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | 3.4 | 0.6 |
90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 | |
80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 | |
70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 | |
60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 |
OEM Cross References
Phoenix: SP1B04 / SP 1B04 / SP 1B 04
Contitech: FS 40-6 / FS40-6 / FS 406 / FS406
Weforma: WBE100-E1 / WBE 100-E1 / WBE100E1 / WBE100 E1
The Reason Why Choose Us?
1. Variety of products and high quality. We have hundreds of models
to meet your needs. And our products have passed ISO/TS 16949:2009
certification, reaching international standards, with high quality.
2. Respond promptly. We generally reply within one day.
3. Good after-sale service. Customer satisfaction is our greatest
pursuit. Once the product has any damage or quality problem, please
advise us and we will replace it.
1B Convoluted Air Bellows OEM Number
AIRSUSTECH Number | Cross References |
1B7070 | Contitech FS 70-7 |
1B8×6 | W01-358-7598 |
1B53014 | Contitech FS 530-14 |
1K130070 | Goodyear 1B5-500 |
1B6910 | Firestone W01-M58-6374 |

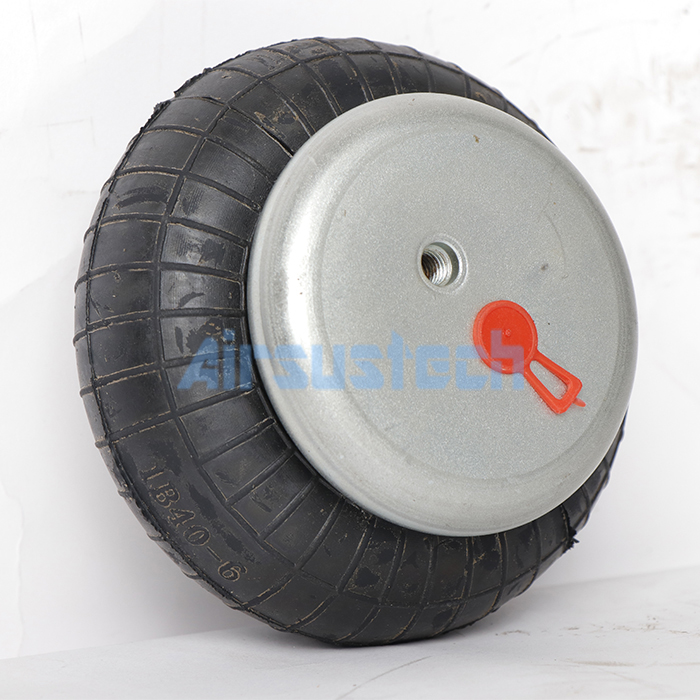

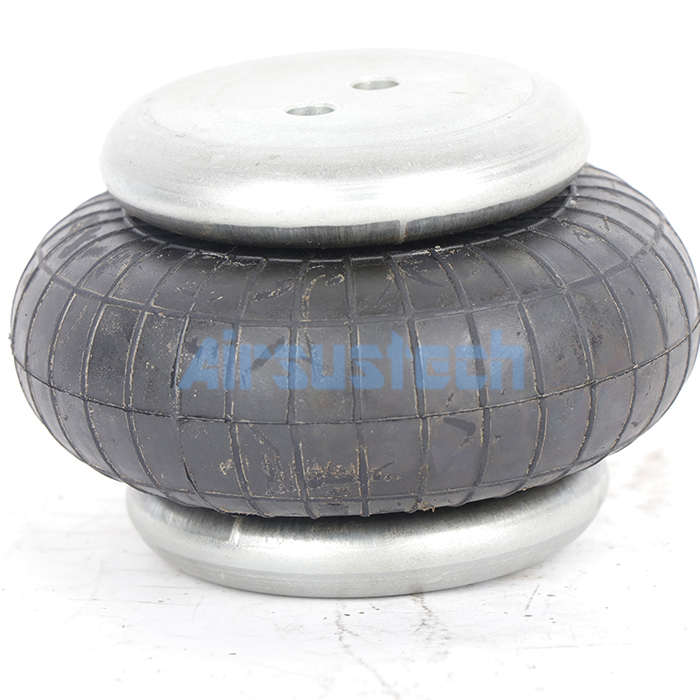

The Real Photos of 1B4060
![]() |
