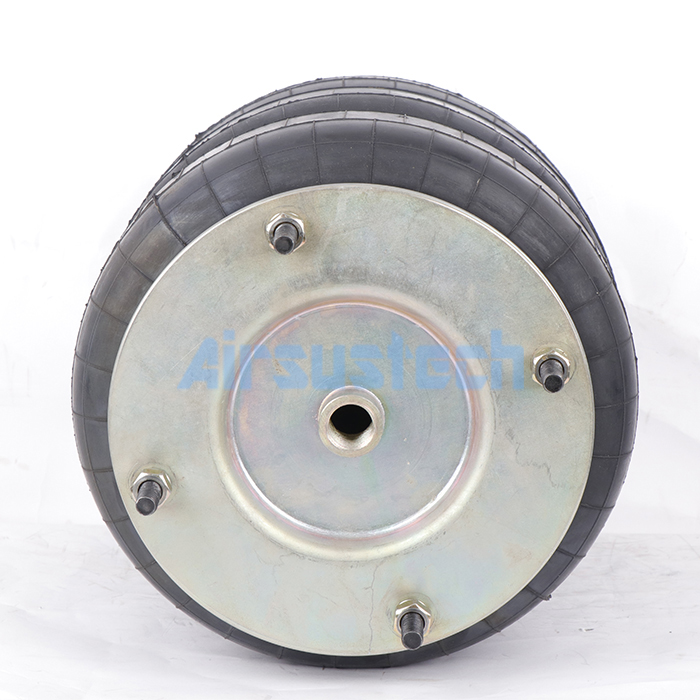

    Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B10×3T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw

    Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw


    Air Spring Introduction


    Our AIRSUSTECH Air Suspension 3B10×3T is a compatible replacement for Firestone W01-R58-4059, Dunlop Pneuride 10''×3, Dunlop Springride SP1539, and Contitech FT 210-32 DS. It also shares the same technical specifications as Norgren M/31103 and Parker 9109031. The quality of the 3B10×3T reaches 80% to 90% of the original brands, such as Firestone, Contitech, and Dunlop. Additionally, we offer a one-year warranty on our air spring rubber bellows.


    OEM Cross References


    For Norgren NO.: M/31103, M31103, M31103

    For Firestone NO.: W01-R58-4059, W01R584059, W01 R58 4059
    For Dunlop Pneuride NO.: 10''×3, 10'×3, 10×3
    For Dunlop Springride NO.: SP1539, SP 1539
    For Contitech NO.: FT 210-32 DS, FT210-32 DS, FT21032 DS
    For Parker NO.: 9109031


    3B10×3T Air Spring Specifications


    Effective Diameter: 200 mm

    Connection Method: CY series

    Compressed Height: 118 mm

    Maximum Height: 400 mm

    Full Stroke: 282 mm

    Working Medium: air

    Working Pressure: 0 bar to 8 bar

    Burst Pressure: 8 bar

    Temperature: -40℃ to +70℃


    We Have Other Orial Series Flange Connection Air Spring


    AIRSUSTECH NO.FirestoneDunlop PneurideDunlop SpringrideContitechNorgrenParker
    2 3/4''×32 3/4''×3SP2910FT 22-6 DI9109010
    4 1/2''×3W01R5840354 1/2''×3SP2895FT 44-15 DIPM/310439109402
    4 1/2''×3-E
    3B6×3T(AI)6''×3(Al)SP2923FT 76-20 DSPM/310639109007A
    3B6×3T(Steel)W01R5840956''×3(Steel)SP2861FT 138-26 DSM/310639109007
    3B8×3TW01R5840568''×3SP2863FT 138-26 DSM/310839109017
    3B10×3TW01R58405910''×3SP1539FT 210-32 DSM/311039109031
    3B12×3TW01R58406212''×3SP1542FT 412-32 DSM/311239109051
    3B14 1/2''×3TW01R58406514 1/2''×3SP1558FT 614-36 DSM/311439109069
    3B16×3TW01R58406816''×3SP2141FT 816-40 DSM/311639109177

    3B10×3T Product Details


    Quality Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw for sale
