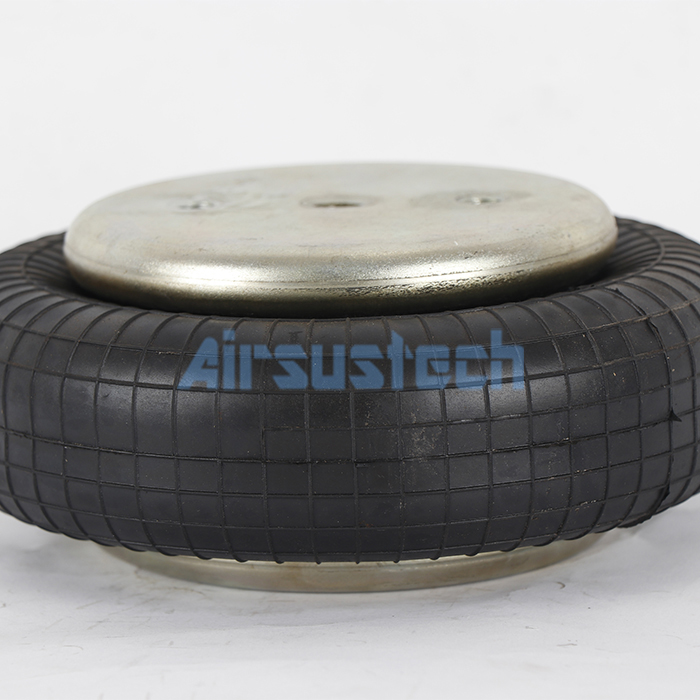

    Air Spring Contitech Model FS 120-10 Industrial Single Convoluted Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8×4
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Air Spring Contitech Model FS 120-10 Industrial Single Convoluted Air Actuator

    Air Spring Contitech Model FS 120-10 Industrial Single Convoluted Air Actuator


    Introduction of Air Spring


    The AIRSUSTECH 1B8×4 air suspension is a compatible replacement for Firestone W01-358-7564, Goodyear 1B8-550, and Contitech FS 120-10. It shares identical specifications with the Contitech FS 120-10 air rubber bellow and is crafted from high-quality natural rubber. We offer a one-year warranty on our air springs, prioritizing product quality while ensuring exceptional after-sales service. Should you encounter any issues, our dedicated team is always ready to provide quick and effective solutions.


    Refer Number


    Contitech Part Number: FS 120-10

    Contitech Part Number: FS120-10

    Contitech Part Number: FS12010

    Firestone Part Number: W01-358-7564

    Firestone Part Number: W01 358 7564
    Firestone Part Number: W013587564
    Goodyear Part Number: 1B8-550

    Goodyear Part Number: 1B 8-550

    Goodyear Part Number: 1B8550


    1B8×4 Air Actuator Specifications


    Cover Plate
    Top Cover Plate Diameter135 mm
    Screw Center Distance of Top Cover Plate70 mm
    Bottom Cover Plate Diameter135 mm
    Screw Center Distance of Bottom Cover Plate70 mm
    Nut/Blind Nuts
    Top Cover Plate Screw(Nut) Tooth2×3/8-16UNC
    Bottom Cover Plate Screw(Nut) Tooth2×3/8-16UNC
    Gas Hole/Air Inlet/Air Fitting
    Pneumatic Connection1/4NPTF
    Rubber Bellow
    Rubber Bellow Max. Diameter230 mm
    Minimum Height50 mm
    Maximum Height140 mm

    Air springs - An Efficient Choice to Reduce Costs


    Air springs can not only significantly reduce your operating costs, but also effectively increase profits, making them a wise choice for your investment.


    1. The service life is 2 to 4 times that of steel springs, making them more durable
    2. Almost no maintenance is required, saving investment in later maintenance
    3. Provide a smoother driving experience, reduce insurance claim costs and excessive packaging expenses
    4. Increase vehicle value retention rate and create higher value for old-for-new exchange

    In addition, each air spring component is 100% pressure tested before leaving the factory, with more reliable quality and more stable performance. Choose air springs to bring greater advantages to your transportation operations!


    1B Industrial Convoluted Air Springs


    1B6910
    Firestone W01-M58-6374
    Contitech FS 200-10
    Phoenix SP 1B 12
    Dunlop(FR) 9 1/4x1 S09101
    Bosch 822419004
    Festo EB-250-85
    Norgren PM/31091(8 1/4x1)
    1B5510S
    Goodyear 1B5-550
    Goodyear Bellow NO. 579-91-3-501
    Enidine Inc. YI-1B5-510
    1B4060
    Contitech FS 40-6
    Phoenix SP1B04
    Weforma WBE100-E1
    1B7070
    Contitech FS 70-7
    Phoenix SP 1B 05
    Bosch 8224 19002
    Festo EB-165-65
    Weforma WBE 200-E1
    Firestone W01-M58-6155
    1B53014
    Contitech FS 530-14
    Triangle AS-4442
    W01-358-7103
    FleetPride AS7103
    Goodyear 1B14-350
    Goodyear Flex No. 578913351
    Taurus 6326
    TRP AS71030
    Peerless 0550-00015
    1K130070
    Goodyear 1B5-500
    Goodyear Rubber Bellows NO. 579-913-500
    Air Lift 58218
    Airkraft Style 1B120
    ContiTech FS 50-5 CI 1/4 NPT
    ContiTech Order No. 61388
    Enidine YI 1B5 500
    Enidine YI-FS50-5-000
    Firestone No. W02-358-5000
    Firestone W01-358-7609


    The Related Photos of 1B8×4
