Brand Name : | AIRSUSTECH |
Model Number : | 2B10×2T |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |

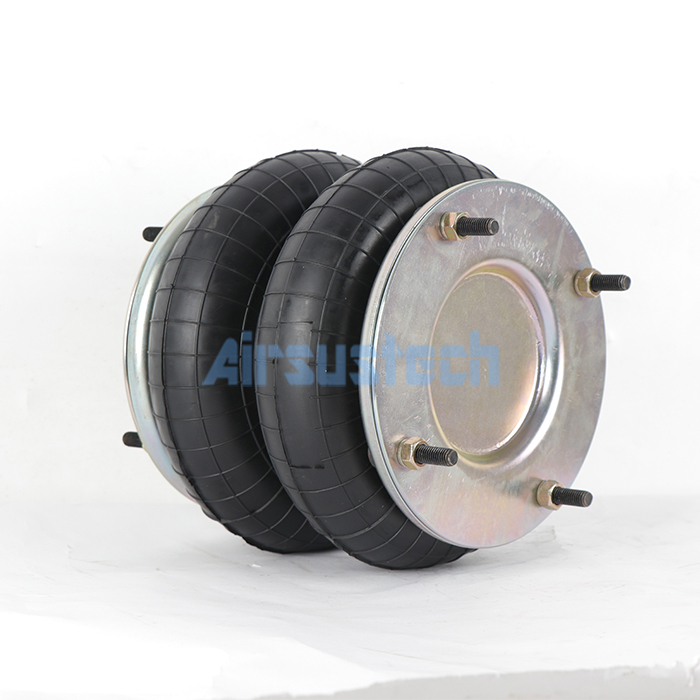

Dimensions fo 2B10×2T Air Spring
Max. Diameter of Rubber Bellow: 280 mm
Installation Space Required: 295 mm
Compressed Height: 70 mm
Max. Expanded Height: 240 mm
Working Stroke: 170 mm
Natural Height: 160 mm
Refer Number
Airbag Man | DB1028 | Dunlop Pneuride | 10×2 |
Firestone | W01-R58-4058 | Dunlop PNP | 305450112 |
Firestone | W01R584058 | Dunlop Springride | SP1538 |
Firestone | W01 R58 4058 | Dunlop Springride | SP 1538 |
Dunlop Pneuride | 10''×2 | Dunlop Springride | SP 15 38 |
Dunlop Pneuride | 10'×2 | Contitech | FD 210-22 DS |
Norgren | M/31102 | Contitech | FD210-22 DS |
Norgren | M 31102 | Contitech | FD21022 DS |
Norgren | M31102 | Parker | 9109021 |
Multi-field Application of Rubber Air Springs
1. Application in lifting equipment
Traditional lifting equipment usually uses air bags as lifting
elements, but this design has problems such as large installation
space, complex manufacturing, heavy weight, easy leakage and
inconvenient maintenance. The application of air rubber bellow has
successfully overcome these traditional shortcomings. It does not
require maintenance, has a long life, and is easy to replace, which
greatly improves the reliability and efficiency of the equipment.
At present, air suspensions have gradually replaced traditional
cylinders and become a new choice in lifting equipment.
2. Application in vibration reduction equipment
Air rubber bellows have outstanding performance in vibration
isolation due to their advantages of high-frequency vibration
isolation, sound insulation and low natural vibration frequency. It
can effectively protect the base and control system of the
vibration equipment and ensure the stability of operation.
Therefore, air shock suspensions are widely used in the vibration
isolation system of vibrating screens and the vibration reduction
device of luxury vehicle seats.
3. Other uses
Air spring assembly can also be used as vibration reduction bases
to protect precision equipment during transportation to avoid
damage caused by vibration, such as the transportation of missiles
and their launch control devices. In addition, it can also be used
as a portable support tool, which provides convenience for field
vehicle and equipment maintenance through its lightness and
flexible operation.
Other Double Convoluted Pneumatic Air Bellows
Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
2 3/4''×2 | SP2904 | FD 22-4 DI | 9109009 | ||
W01R584051 | 4 1/2''×2 | SP2441 | FD 44-10 DI | PM/31042 | 9109401 |
W01R584070 | 6''×(AI) | SP2917 | FD 76-14 DI | PM/31062 | 9109001A |
W01R584053 | 6''×2(Steel) | SP1482 | FD 76-14 DS | M/31062 | 9109001 |
W01R584055 | 8''×2 | SP1490 | FD 138-18 DS | M/31082 | 9109011 |
W01R584058 | 10''×2 | SP1538 | FD 210-22 DS | M/31102 | 9109021 |
W01R584061 | 12''×2 | SP1541 | FD 412-22 DS | M/31122 | 9109041 |
W01R584039 | 12''×2 Extend | SP2782NB | |||
W01R584064 | 14'' 1/2×2 | SP1556 | FD 614-26 DS | M/31142 | 9109061 |
W01R584067 | 16''×2 | SP1557 | FD 816-30 DS | M/31162 | 9109171 |
21 1/2''×2 | SP1408 | M/31212 | 9109153 | ||
26''×2 | SP2342 | M/31262 | 9109159 |
Product Images
FAQ
Q: What will you do for customer's complaint? A: We will respond quickly to our customers within 24 hours. |
Q: What is the model number of the Suspension Air Springs? A: The model number of the Suspension Air Springs is 1B6910-3/4. |
Q: Where are the Suspension Air Springs manufactured? A: The Suspension Air Springs are manufactured in Guangzhou, China. |
![]() |
