    Goodyear Rubber Bellows 579-913-500 Pneumatic Air Spring 1B5-500 for Paper Mill

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1K130070
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear Rubber Bellows 579-913-500 Pneumatic Air Spring 1B5-500 for Paper Mill

    Goodyear Rubber Bellows 579-913-500 Pneumatic Air Spring 1B5-500 for Paper Mill



    Air Spring Introduction

    AIRSUSTECH actuators are playing a crucial role in modern machine design as pneumatic actuators in industrial applications.
    Due to their durability, ability to withstand abrasive environments, and exceptional performance, AIRSUSTECH actuators are becoming a popular replacement for traditional pneumatic and hydraulic cylinders.



    1K130070 Air Spring Cross References

    Goodyear Rubber Bellows NO.: 579-913-500, 579 913 500, 579913500
    Goodyear: 1B5-500, 1B 5-500, 1B5500
    Air Lift: 58218
    Airkraft Style: 1B120, 1B 120
    ContiTech: FS 50-5 CI 1/4 NPT, FS50-5 CI 1/4 NPT, FS505 CI 1/4 NPT
    ContiTech Order No.: 61388
    Enidine: YI 1B5 500, YI-1B5-500, YI1B5500
    Enidine: YI-FS50-5-000, YI FS50 5 000, YIFS505000
    Firestone No.: W02-358-5000, W02 358 5000, W023585000
    Firestone: W01-358-7609, W013587609, W01 358 7609
    Firestone Bellows No.: 16-ST, 16 ST, 16ST
    Firestone No.: W01-358-7001, W013587001, W01 358 7001
    Firestone Bellows No.: 16
    Firestone New Bellows No.: 16B
    Numatics: ASNS1111



    1K130070 Air Bellow Technical Data

    Bottom Plate AlignmentParallel
    Bottom Plate Center To Center Diameter44.5 mm
    Bottom Plate Diameter85 mm
    Bottom Plate Hole QuantityM8
    Bottom Plate TypeSteel
    Top Plate AlignmentParallel
    Top Plate Center To Center Diameter44.5 mm
    Top Plate Diameter85 mm
    Top Plate Hole QuantityM8
    Top Plate TypeSteel
    Maximum Natural Diameter150 mm
    Expanded Height100 mm
    Compressed Height50 mm
    Spring TypeSingle Convoluted
    Nut/Blind Nuts TypeM8
    Air ConnectionG1/4
    TypeGas-filled



    Applications of Air Springs
    1. Off-Highway Vehicles: Air springs are widely used in construction equipment, agricultural machinery, and mining equipment to enhance suspension, improve ride comfort, and maintain stability.
    2. Press Equipment and Part Extraction: Air springs serve as actuators, providing efficient and reliable performance.
    3. Test Equipment and Motion Simulators: They act as vibration isolators, reducing shock and noise for smoother operation.
    4. Precision Equipment and Machinery: In applications such as printing presses, air springs are used for vibration isolation and precise leveling.
    5. Textile Machinery: Air springs ensure a smooth, stable operation, improve product quality, and reduce machinery wear and tear.
    6. Paper Mill Machinery: They are applied for suspension, leveling, and vibration isolation, enhancing efficiency and longevity.
    7. Cheese and Dairy Industry Machines: Air springs are utilized to maintain stable operation, ensuring optimal performance.

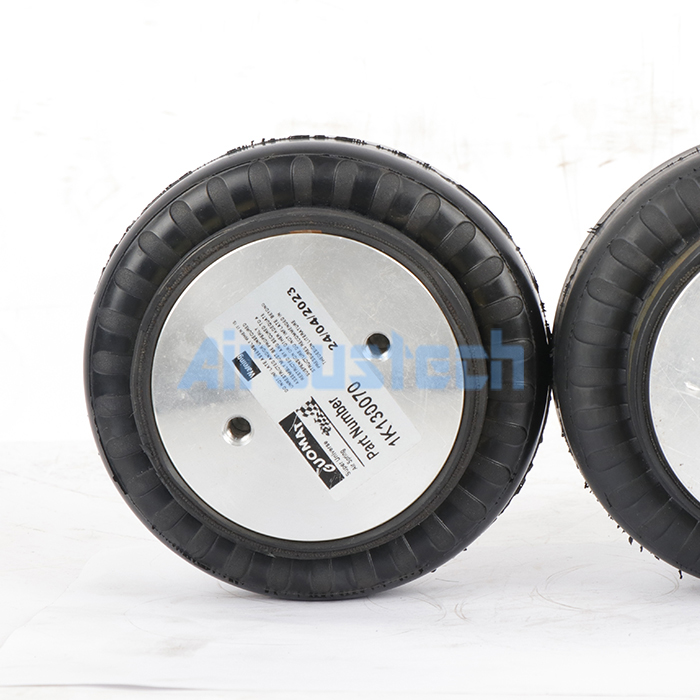

    1K130070 Air Actuator Real Pictures
