    Contitental Bellows Style FS 530-14 Suspension Air Spring G3/4 Air Connection

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B53014
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Contitental Bellows Style FS 530-14 Suspension Air Spring G3/4 Air Connection

    Contitental Bellows Style FS 530-14 Suspension Air Spring G3/4 Air Connection


    AIRSUSTECH Air Spring Introduction


    Designed with precision to deliver unmatched performance and adaptability across various applications. Its durable structure is built around a crimped assembly, ensuring superior strength and resilience. This is further enhanced by a meticulously designed convoluted bellow made from Natural Rubber, celebrated for its outstanding dynamic performance and versatile properties. The result is a powerful actuator that seamlessly adapts to diverse operational conditions.


    1B53014 Technical Datas


    Max. Expanded Height185 mm
    Compressed Height51 mm
    Max. Diameter of Rubber Bellow405 mm
    Space Required420 mm
    Top Plate Diameter287 mm
    Bottom Plate Diameter187 mm
    Screw (Nut) Type of Top Plate4×M8×15mm
    Screw (Nut) Type of Bottom Plate4×M8×15mm
    Screw/Stud QTY of Top Plate5
    Screw/Stud QTY of Bottom Plate4
    Screw Distance158.8 mm
    Bellows TypeSingle Convoluted

    Part Interchanges


    Contitech Part Number: FS 530-14, FS530-14, FS53014
    Triangle Part Number: AS-4442, AS4442, AS 4442
    Firestone Part Number: W01-358-7103, W01 358 7103, W013587103
    FleetPride Part Number: AS7103, AS-7103, AS 7103
    Goodyear Part Number: 1B14-350, 1B 14-350, 1B14350
    Goodyear Flex No. 578913351
    Taurus Part Number: 6326
    TRP Part Number: AS71030, AS 71030, AS-71030
    Peerless Part Number: 0550-00015, 055000015, 0550 00015


    Air Spring Features


    1. Crimped Assembly: Engineered for durability, this robust construction technique guarantees the structural integrity and dependable performance of the air actuator, enabling it to meet rigorous operational demands over extended periods.
    2. Convoluted Bellow with Natural Rubber: Made from premium natural rubber, the convoluted bellow delivers outstanding dynamic performance and remarkable versatility, making it ideal for a wide range of applications.
    3. Advanced Dynamic Capability: Designed to achieve optimal performance, the air actuator boasts exceptional dynamic capabilities, offering superior responsiveness and adaptability across various operating conditions for maximum efficiency.
    4. Superior Universal Properties: Thanks to its high-quality construction and smart design, the air actuator demonstrates remarkable adaptability to diverse operational needs, ensuring consistent and reliable performance in different scenarios.
    5. Crimped Zinc-Plated Steel Plates: The actuator features top and bottom plates made from crimped, zinc-plated steel, providing exceptional durability and resistance to corrosion, even in the toughest working environments.

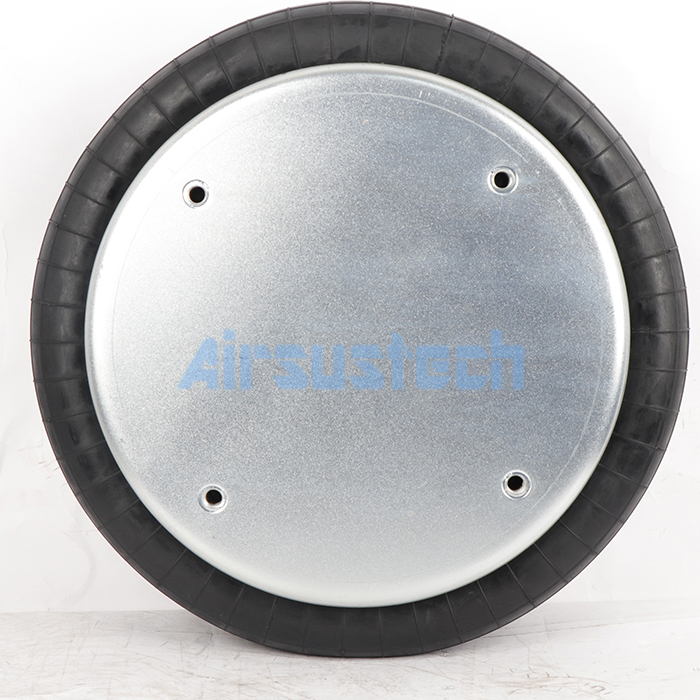

    The Related Pictures of 1B53014


    Quality Contitental Bellows Style FS 530-14 Suspension Air Spring G3/4 Air Connection for sale
