    Industrial Double Type Air Spring Firestone W01-R58-4053 Pneumatic Fittings G1/2

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Double Type Air Spring Firestone W01-R58-4053 Pneumatic Fittings G1/2

    Industrial Double Type Air Spring Firestone W01-R58-4053 Pneumatic Fittings G1/2


    About Air Spring


    The use of stamped flange air springs is very wide. It can be used in various heavy machinery and equipment such as engineering machinery, construction machinery, metallurgical equipment, and ship equipment to provide stable support and protection for these equipment. Compared with traditional mechanical air susupensions, stamped flange air spring assembly has higher precision and adjustability, and can be precisely adjusted according to different loads and working conditions to ensure the best operation of mechanical equipment.


    OEM Cross References


    Firestone Air Spring

    W01-R58-4053 / W01 R58 4053 / W01R584053

    WO1-R58-4053 / WO1 R58 4053 / WO1R584053

    Dunlop Pneuride Air Spring6"x2 (Steel) / 6x2 (Steel) / 6'x2 (Steel)
    Dunlop Springride Air SpringSP1482 / SP 1482
    Contitech Air SpringFD76-14 DS / FD 76-14 DS / FD7614 DS
    Norgren Air SpringM/31062 / M31062 / M 31062
    Parker Air Spring9109001

    2B6×2T Air Bag Specifications


    Diameter of the Top Cover Plate: 153.5 mm
    Center-to-Center Distance of Screws on the Top Cover Plate: 127 mm
    Diameter of the Bottom Cover Plate: 153.5 mm
    Center-to-Center Distance of Screws on the Bottom Cover Plate: 127 mm
    Screw (Nut) Thread Count for the Top Cover Plate: 4-M10
    Screw (Nut) Thread Count for the Bottom Cover Plate: 4-M10
    Air Inlet: G1/2
    Natural Diameter of the Rubber Bellow: 159 mm
    Natural Height: 135.5 mm


    AIRSUSTECH Services


    Our Suspension Air Springs provide technical support and services for our customers. We have a team of experienced professionals to ensure that our products meet the highest standards of quality and performance. Our team is available to answer any questions or concerns you may have about our products. We also offer installation and repair services for our Suspension Air Springs. In addition, we provide a full range of spare parts and accessories to ensure that your product is always operating at its best.


    We Have Other Type Flange Air Shock Suspensions


    AIRSUSTECH NO.FirestoneDunlop PneurideDunlop SpringrideContitechNorgrenParker
    2 3/4''×22 3/4''×2SP2904FD 22-4 DI9109009
    2B4.5×2W01R5840514 1/2''×2SP2441FD 44-10 DIPM/310429109401
    2B4.5×2-E
    2B6×2T(AI)W01R5840706''×(AI)SP2917FD 76-14 DIPM/310629109001A
    2B6×2T(Steel)W01R5840536''×2(Steel)SP1482FD 76-14 DSM/310629109001
    2B8×2TW01R5840558''×2SP1490FD 138-18 DSM/310829109011
    2B10×2TW01R58405810''×2SP1538FD 210-22 DSM/311029109021
    2B12×2TW01R58406112''×2SP1541FD 412-22 DSM/311229109041
    2B12''×2-EW01R58403912''×2 ExtendSP2782NB
    2B14 1/2''×2TW01R58406414'' 1/2×2SP1556FD 614-26 DSM/311429109061
    2B16×2TW01R58406716''×2SP1557FD 816-30 DSM/311629109171
    2B21 1/2''×2T21 1/2''×2SP1408M/312129109153
    2B26''×2T26''×2SP2342M/312629109159

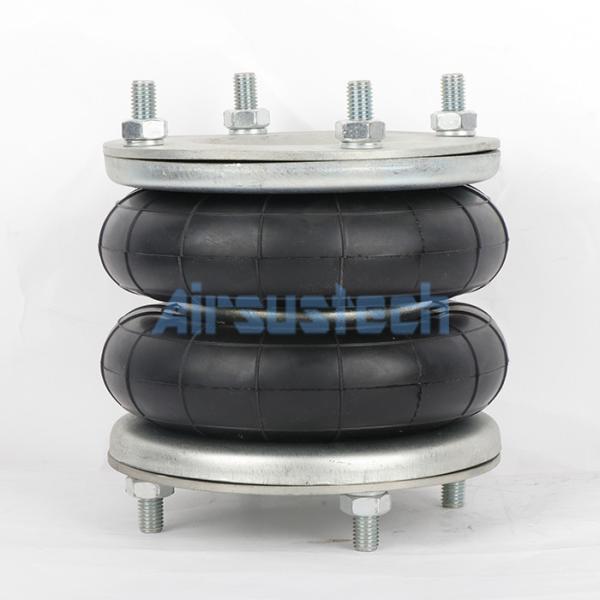

    2B6×2T Detailed Pictures
