    Imperial Goodyear Single Convoluted Bellows Type 1B9-204 Air Spring Assembly

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B9×5
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Imperial Goodyear Single Convoluted Bellows Type 1B9-204 Air Spring Assembly

    Imperial Goodyear Single Convoluted Bellows Type 1B9-204 Air Spring Assembly


    1B9×5 Air Spring Introduction


    In addition to reducing the vibration of the equipment, AIRSUSTECH Air Spring can also effectively improve the performance of machine tools, especially for relatively long and large workpieces. After the machine tool adopts the Gaomat 1B9×5 air spring for shock reduction, it can effectively reduce the vibration of the equipment and the workpiece, improve the processing accuracy of the equipment, reduce the surface roughness of the workpiece, and effectively avoid the occurrence of dangerous situations such as tool breakage.


    1B9×5 Air Spring Features


    Bottom Cover Plate

    Bottom Plate Alignment: Parallel
    Bottom Plate Center To Center Diameter: 89 mm
    Bottom Plate Diameter: 160 mm
    Bottom Plate Hole Quantity: 2×3/8-16UNC
    Bottom Plate Type: Steel


    • Top Cover Plate

    Top Plate Alignment: Parallel
    Top Plate Center To Center Diameter: 89 mm
    Top Plate Diameter: 160 mm
    Top Plate Hole Quantity: 2×3/8-16UNC
    Top Plate Type: Steel


    • Rubber Bellow

    Bellow Natural Diameter: 222 mm
    Expanded Height: 160 mm
    Compressed Height: 60 mm
    Spring Type: Single Convoluted
    Nut/Blind Nuts Type: 3/8-16UNC


    • Air Hole/Air Inlet/Gas Hole/Gas Fitting

    Air Connection: 1/4-18NPTF
    Type: Gas-filled


    1B9×5 Cross References


    Goodyear: 1B9-204 / 1B 9-204 / 1B9204
    Goodyear: 1B9-202 / 1B 9-202 / 1B9202
    Goodyear Bellows NO.: 578-91-3-201 / 578913201

    Storage Precautions of Air Spring


    1. Spare air spring parts should be stored in dark, non-ventilated areas to avoid exposure to direct sunlight.
    2. Keep air springs away from oil and chemicals, as long-term contact can degrade rubber performance and shorten service life.
    3. Store air springs in a free, uncompressed state, ensuring no external forces are applied.
    4. Avoid storing air springs in environments with temperatures exceeding 70°C to maintain their quality and functionality.


    Goodyear Other Type Air Actuators


    Single ConvolutedDouble ConvolutedTriple Convoluted
    1B12-3052B6-5302B6-5313B12-304
    1B14-3502B6-5322B6-5353B14-351
    1B14-3522B6-5362B7-5403B14-354
    1B14-3642B7-5412B7-5423B15-376
    1B15-3762B7-5452B7-5463B15-378
    1B15-3782B8-5502B8-5523B12-305
    1B12-3132B8-5532B8-5543B14-353
    1B14-3512B9-2002B9-2013B15-375
    1B14-3622B9-2042B9-2053B15-377
    1B15-3752B9-2162B9-250
    1B15-3772B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

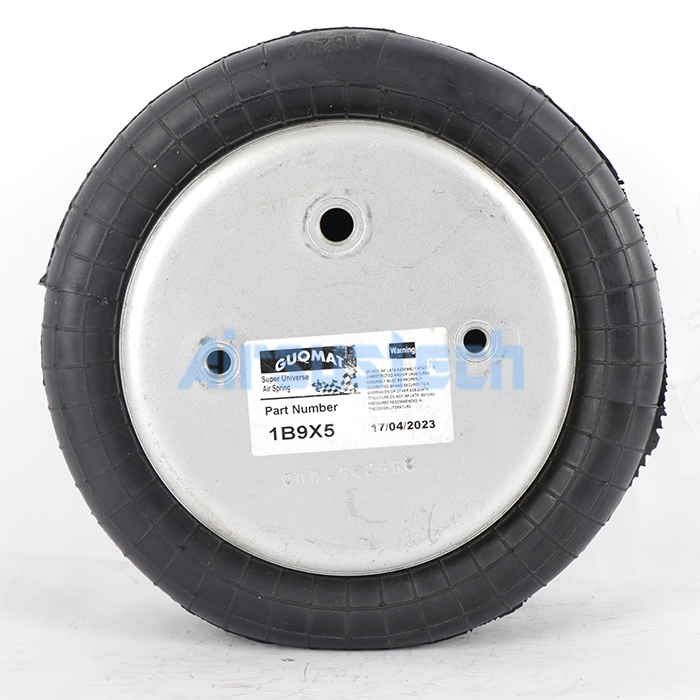

    The Real Pictures of 1B9×5
