    100% Brand New Air Bellow Actuator W02-358-5000 Firestone Pneumatic Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1K130070
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    100% Brand New Air Bellow Actuator W02-358-5000 Firestone Pneumatic Air Spring

    100% Brand New Air Bellow Actuator W02-358-5000 Firestone Pneumatic Air Spring


    1K130070 Technical Datas


    Cover Plate
    Top Cover Plate Diameter85 mm
    Screw Center Distance of Top Cover Plate44.5 mm
    Bottom Cover Plate Diameter85 mm
    Screw Center Distance of Bottom Cover Plate44.5 mm
    Nut/Blind Nuts
    Top Cover Plate Screw(Nut) ToothM8×15 mm
    Bottom Cover Plate Screw(Nut) ToothM8×15 mm
    Gas Hole/Air Inlet/Air Fitting
    Air ConnectionG1/4
    Rubber Bellow
    Rubber Bellow Max. Diameter150 mm
    Natural Height70 mm
    Minimum Height50 mm
    Maximum Height100 mm

    Other OEM Number


    Firestone Part Number: W02-358-5000 / W02 358 5000 / W023585000

    Goodyear Part Number: 1B5-500 / 1B 5-500 / 1B5500

    Goodyear Rubber Bellows NO.: 579-913-500 / 579913500 / 579 913 500

    Air Lift Part Number: 58218
    Airkraft Style: 1B120 / 1B 120

    ContiTech Part Number: FS 50-5 CI 1/4 NPT / FS50-5 CI 1/4 NPT / FS505 CI 1/4 NPT

    ContiTech Order No.: 61388
    Enidine Part Number: YI 1B5 500 / YI-1B5-500 / YI1B5500
    Enidine Part Number: YI-FS50-5-000 / YI FS50 5 000 / YIFS505000
    Firestone Bellows No.: 16-ST / 16 ST / 16ST
    Firestone Part Number: W01-358-7001 / W013587001 / W01 358 7001
    Firestone Bellows No.: 16
    Firestone New Bellows No.: 16B
    Numatics Part Number: ASNS1111


    Here Are Some Key Points About The 1K130070 Airspring


    1. The 1K130070 airspring is a single convoluted air bag that is used in industrial applications.
    2. It is made of high-quality materials to ensure durability and performance.
    3. The 1K130070 airspring is compatible with various equipment and vehicles, including trucks and buses.
    4. It is designed to provide a smooth and comfortable ride by absorbing shocks and vibrations.
    5. The 1K130070 airspring is part of a larger range of air springs offered by different manufacturers.

    We Also Have Other Type Goodyear Air Springs


    Single ConvolutedDouble ConvolutedTriple Convoluted
    1B12-3052B6-5302B6-5313B12-304
    1B14-3502B6-5322B6-5353B14-351
    1B14-3522B6-5362B7-5403B14-354
    1B14-3642B7-5412B7-5423B15-376
    1B15-3762B7-5452B7-5463B15-378
    1B15-3782B8-5502B8-5523B12-305
    1B12-3132B8-5532B8-5543B14-353
    1B14-3512B9-2002B9-2013B15-375
    1B14-3622B9-2042B9-2053B15-377
    1B15-3752B9-2162B9-250
    1B15-3772B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

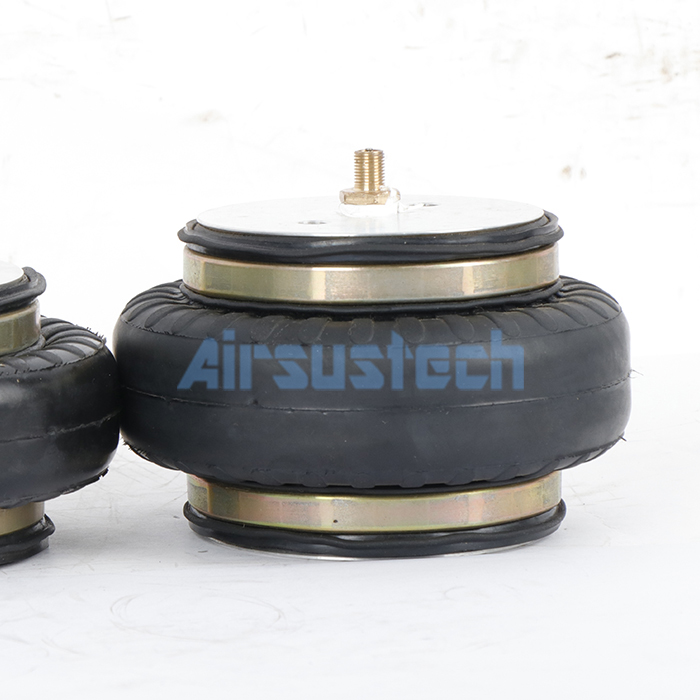

    1K130070 Air Actuator Detailed Pictures
