    Rubber Bellow 579-91-3-501 Goodyear 1B5-510 Air Spring for Reduce Vibration

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5510S
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rubber Bellow 579-91-3-501 Goodyear 1B5-510 Air Spring for Reduce Vibration

    Rubber Bellow 579-91-3-501 Goodyear 1B5-510 Air Spring for Reduce Vibration


    Other Part Number


    Goodyear NO. 1B5-550 / 1B 5-550 / 1B5550
    Goodyear Bellow NO. 579-91-3-501 / 579 91 3 501 / 579913501
    Enidine Inc. YI-1B5-510 / YI 1B5 510 / YI1B5510


    Technical Data


    Bottom Plate Alignment: Parallel
    Bottom Plate Center To Center Diameter: 44.5 mm
    Bottom Plate Diameter: 85 mm
    Bottom Plate Hole Quantity: 2
    Bottom Plate Type: Steel
    Top Plate Alignment: Parallel
    Top Plate Center To Center Diameter: 44.5 mm
    Top Plate Diameter: 85 mm
    Top Plate Hole Quantity: 3
    Top Plate Type: Steel
    Bellow Maximum Diameter: 150mm
    Expanded Height: 50 mm
    Compressed Height: 120 mm
    Spring Type: Single Convoluted
    Nut/Blind Nuts Type: 2×3/8'' UNC
    Air Connection: 1/4''BSP
    Type: Gas-filled

    Product Advantage


    • Long service life
    • Maintenance-free
    • Highly operational safety
    • Frictionless
    • Lateral misalignment possible
    • Chemical resistance

    Goodyear Other Convoluted Air Springs


    Single ConvolutedDouble ConvolutedTriple Convoluted
    1B12-3052B6-5302B6-5313B12-304
    1B14-3502B6-5322B6-5353B14-351
    1B14-3522B6-5362B7-5403B14-354
    1B14-3642B7-5412B7-5423B15-376
    1B15-3762B7-5452B7-5463B15-378
    1B15-3782B8-5502B8-5523B12-305
    1B12-3132B8-5532B8-5543B14-353
    1B14-3512B9-2002B9-2013B15-375
    1B14-3622B9-2042B9-2053B15-377
    1B15-3752B9-2162B9-250
    1B15-3772B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

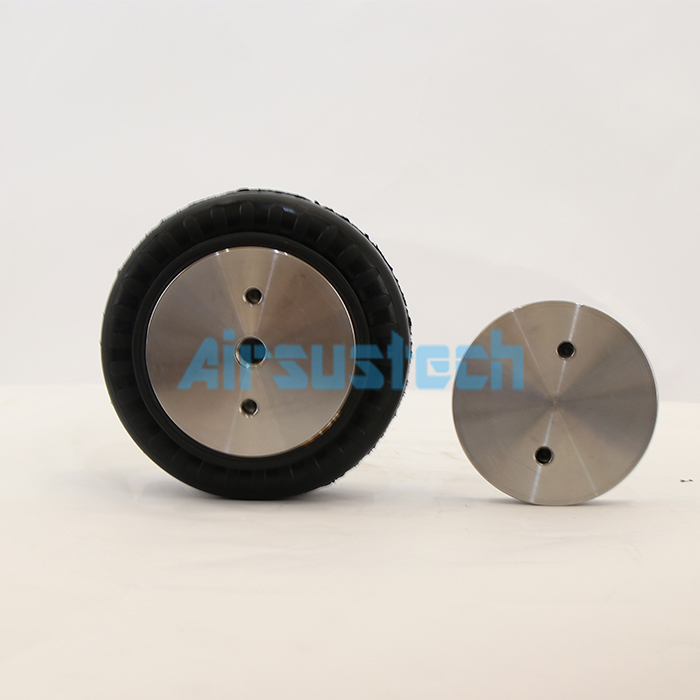

    Product Images
