    Rubber Bellow 578-91-3-201 Air Suspension Systems for Machine Reduces Vibration

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B9×5
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rubber Bellow 578-91-3-201 Air Suspension Systems for Machine Reduces Vibration

    Rubber Bellow 578-91-3-201 Air Suspension Systems for Machine Reduces Vibration


    Cross References


    For Goodyear Rubber Bellow 578-91-3-201

    For Goodyear Rubber Bellow 578 91 3 201

    For Goodyear Rubber Bellow 578913201

    For Goodyear Air Spring 1B9-204

    For Goodyear Air Spring 1B9204

    For Goodyear Air Spring 1B 9-204
    For Goodyear Air Spring1B9-202

    For Goodyear Air Spring1B 9-202

    For Goodyear Air Spring1B9202


    Product Details


    Working Stroke3.6 Inches
    Minimum Height2.6 Inches
    Maximum Height5.9 Inches
    Max. Diameter @ 100 PSIG11 Inches
    BumperNo
    Force at 100 PSIG at Height Limit1575 Pounds
    Force at 80 PSIG at Height Limit1215 Pounds
    Force at 60 PSIG at Height Limit875 Pounds
    Force at 40 PSIG at Height Limit550 Pounds
    Force at 100 PSIG at Compressed Height5625 Pounds
    Force at 80 PSIG at Compressed Height4500 Pounds
    Force at 60 PSIG at Compressed Height3350 Pounds
    Force at 40 PSIG at Compressed Height2225 Pounds

    AIRSUSTECH Air Spring Features


    1. Low installation height
    In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
    the design height considerably.This allows compact constructions to be made.


    2. Angular movement
    Depending on the type, GUOMAT air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.


    3. Low purchase price
    The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.


    We Have Other Single Convoluted Air Rubber Bellow


    1B12-305FS 40-6 CISP2906
    1B14-350FS 50-5 CISP2334
    1B14-352FS 70-7 CISP2913
    1B14-364FS 100-10 CISP1536
    1B15-376FS 120-10 CISP1537
    1B15-378FS 120-12 CISP2523
    1B12-313FS 200-10 CISP1540
    1B14-351FS 310-12 CISP1543
    1B14-362FS 330-11 CI
    1B15-377FS 330-14 CI
    1B15-375FS 530-11 CI
    FS 530-14 CI
    FS 960-12 CI
    FS 1330-11 CI

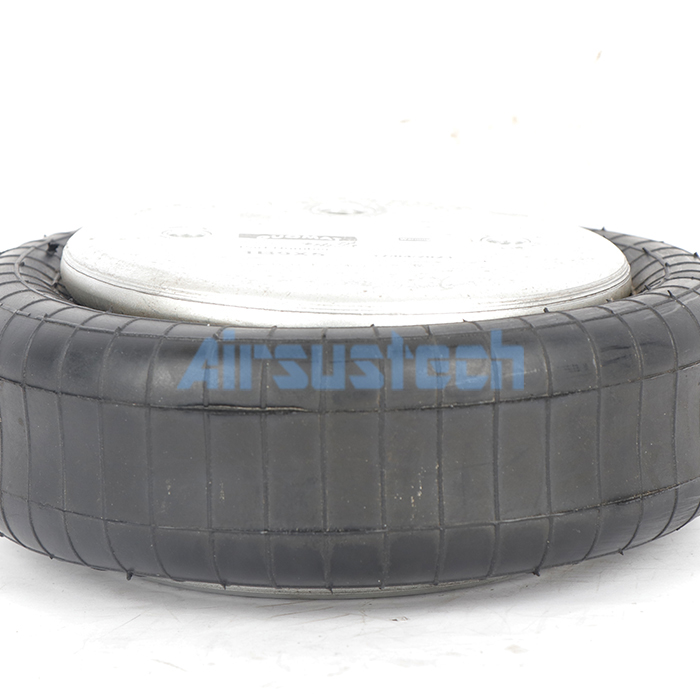

    1B9×5 Pictures of Details


    Quality Rubber Bellow 578-91-3-201 Air Suspension Systems for Machine Reduces Vibration for sale
