Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT from wholesalers

    Buy cheap Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT from wholesalers
    • Buy cheap Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT from wholesalers
    • Buy cheap Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT from wholesalers
    • Buy cheap Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT from wholesalers
    • Buy cheap Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT from wholesalers

    Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B4060
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT

    Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT


    OEM Original Equipment Manufacturer


    Contitech Part Number: FS 40-6

    Contitech Part Number: FS40-6

    Contitech Part Number: FS406
    Phoenix Part Number: SP1B04

    Phoenix Part Number: SP 1B04

    Phoenix Part Number: SP 1B 04
    Weforma Part Number: WBE100-E1

    Weforma Part Number: WBE 100-E1

    Weforma Part Number: WBE100E1


    Technical Data


    Body Dia.[Max]: 5.71 in.
    Temperature Range : -40℃+70℃
    Air Inlet Type: Imperial
    Stroke Length [Max]: 2.3 in.
    Pressure [Max]: 0-8 bar
    Height [Max]: 4.3 in.
    Height [Min]: 2.0 in.
    Air Inlet: 1/8 NPT
    Nut/Blind Nuts: 3/8UNC
    Center to Center Distance: 0.79 in.
    Center Distance Air Hole Betweeen Screw: 0.79 in.
    Cover Plate Diameter: 3.54 in.

    AIRSUSTECH Air Spring Features


    1. Features: Integrated casting process, strong airtight, leakproof, high surface density, burst resistance
    2. Installation: Dimensions are the same as the original model, direct replacement without modification, easy to install
    3. Quality: Using advanced technology improves product destruction, acid resistance, corrosion resistance, long service life
    4. Design: Designed for comfortable suspension with high compression strength and excellent sound isolation to ensure driving comfort and safety.

    Single Convoluted Contitech Style Air Springs


    Item CodeMax. Diameter (mm)Max. Stroke (mm)Min. Height (kN)Max. Stroke (kN)Standard Air Inlet
    Force with p = 8 bar
    FS 40 -6 CI145606.92.4G1/8
    FS 50-5 CI1504492.2G1/4
    FS 70-7 CI165649.95.2G1/4
    FS 100-10 CI2109414.71.6G3/4
    FS 120-9 CI2158517.76.6G3/4
    FS 120-10 CI2319919.54.6G3/4
    FS 120-12 CI23511918.77.2G3/4
    FS 200-10 CI2508923.89.1G3/4
    FS 310-12 S
    FS 330-11 CI3259943.922.4G3/4
    FS 330-14 CI34312947.313G3/4
    FS 530-11 CI38512468.420.8G3/4
    FS 530-14 CI40513469.635.2G3/4
    FS 960-12 CI45011798.340.4G3/4
    FS 1330-11 CI530107141.663.3G3/4

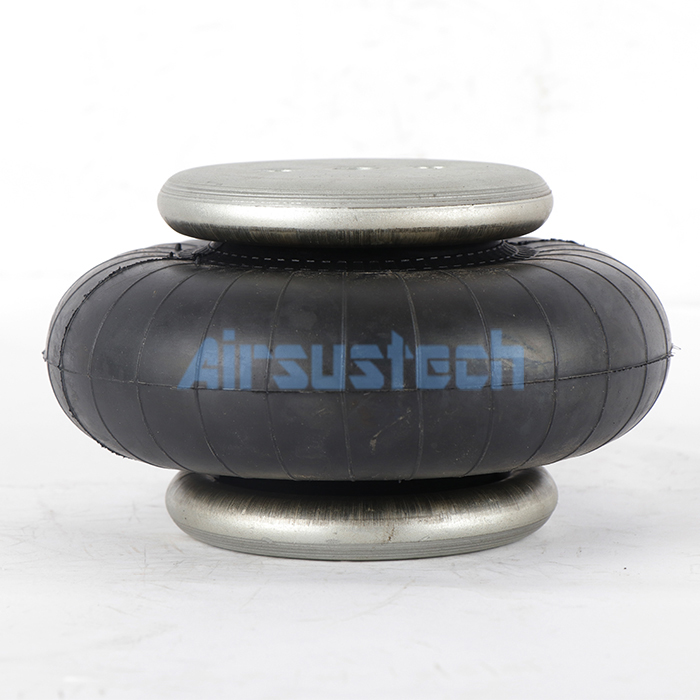

    The Detailed Pictures of 1B4060



    Quality Continental Contitech Rubber Bellows FS 40-6 Sususpension Air Spring 1/8 NPT for sale
