Brand Name : | AIRSUSTECH |
Model Number : | 1B7070 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Convoluted Air Actuator Bosch 8224 19002 Firestone W01-M58-6155 100% Tested
Product Features
Bottom Plate Alignment: Parallel Bottom Plate Center To Center Diameter: 44.5 mm Bottom Plate Diameter: 105 mm Bottom Plate Hole Quantity: 2 Bottom Plate Type: Steel |
Top Plate Alignment: Parallel Top Plate Center To Center Diameter: 44.5 mm Top Plate Diameter: 105 mm Top Plate Hole Quantity: 3 Top Plate Type: Steel |
Bellow Maximum Diameter: 165 mm Expanded Height: 115 mm Compressed Height: 50 mm Spring Type: Single Convoluted Nut/Blind Nuts Type: 2×M8×1.25 |
Air Connection: G1/4 Operation: Gas-filled |
Part Number Model
For Bosch Air Spring: 8224 19002
For Bosch Air Spring: 822419002
For Contitech Air Spring: FS 70-7
For Contitech Air Spring: FS70-7
For Contitech Air Spring: FS707
For Phoenix Air Spring: SP 1B 05
For Phoenix Air Spring: SP1B05
For Phoenix Air Spring: SP 1B05
For Festo Air Spring: EB-165-65
For Festo Air Spring: EB 165 65
For Festo Air Spring: EB 165 65
For Weforma Air Spring: WBE 200-E1
For Weforma Air Spring: WBE200-E1
For Weforma Air Spring: WBE200E1
For Firestone Air Spring: W01-M58-6155
For Firestone Air Spring: W01M586155
For Firestone Air Spring: W01 M58 6155
Air Springs: Reduce Costs, Boost Profits
Single Convoluted Type Air Actuators
1B12-305 | FS 40-6 CI | SP2906 |
1B14-350 | FS 50-5 CI | SP2334 |
1B14-352 | FS 70-7 CI | SP2913 |
1B14-364 | FS 100-10 CI | SP1536 |
1B15-376 | FS 120-10 CI | SP1537 |
1B15-378 | FS 120-12 CI | SP2523 |
1B12-313 | FS 200-10 CI | SP1540 |
1B14-351 | FS 310-12 CI | SP1543 |
1B14-362 | FS 330-11 CI | |
1B15-377 | FS 330-14 CI | |
1B15-375 | FS 530-11 CI | |
FS 530-14 CI | ||
FS 960-12 CI | ||
FS 1330-11 CI |

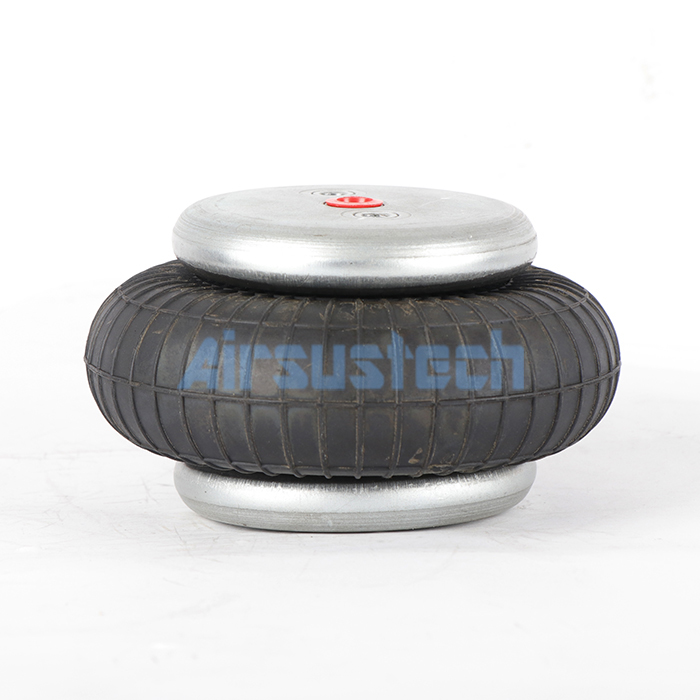

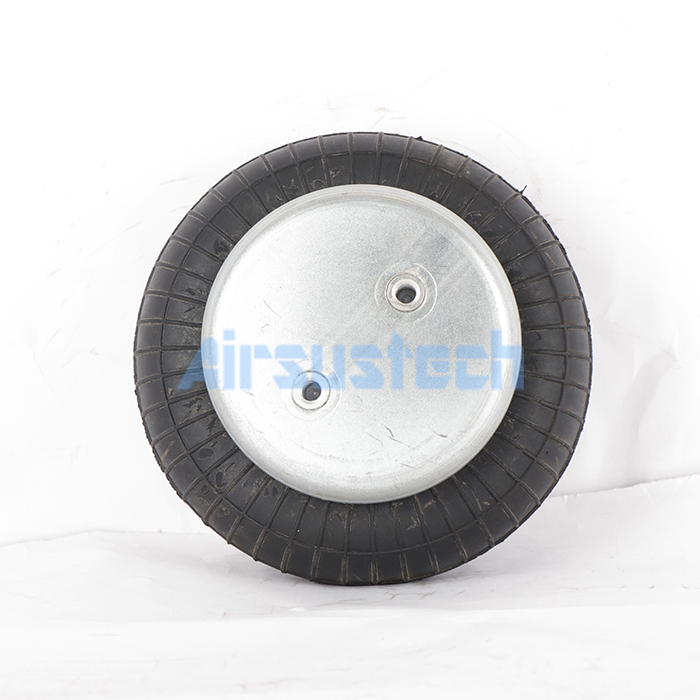

Pictures of Details
![]() |
