Brand Name : | AIRSUSTECH |
Model Number : | 1B7451 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
W013587451 Firestone Industrial Single Convoluted Air Spring for Material Transfer
Product Introduction
AIRSUSTECH Air Springs are engineered to exceed the most demanding
global standards. Designed for durability and reliability, our
products are built to deliver countless miles of exceptional,
worry-free performance. Driven by a passion for innovation, we have
seamlessly integrated advanced automotive technology into our
heavy-duty solutions. This dedication to quality and excellence
reflects what you would expect from a true leader in the industry.
Product Standard
Body Dia.[Max]: 8.1 inches
Compressed Height: 2.1 inches
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 3.9 inches
Pressure [Max]: 0-8 bar
Height [Max]: 6 inches
Height [Min]: 2.1 inches
Air Inlet: 1/4NPT
Nut/Blind Nuts: 3/8-16 blind nuts
Center to Center Distance: 1.75 inches
Distance Air Hole Betweeen Screw: 0.875 inches
Firestone Style 110 Other Types Air Springs
Blind nuts, 1/4NPT |
Blind nuts, 3/4NPT |
Socket head aluminum bead rings (bolts, nuts, washers not
included-use 1/4 cap screws) |
Rubber bellows only |
We Also Have Other Single Convoluted Type Air Bellows
1B12-305 | FS 40-6 CI | SP2906 |
1B14-350 | FS 50-5 CI | SP2334 |
1B14-352 | FS 70-7 CI | SP2913 |
1B14-364 | FS 100-10 CI | SP1536 |
1B15-376 | FS 120-10 CI | SP1537 |
1B15-378 | FS 120-12 CI | SP2523 |
1B12-313 | FS 200-10 CI | SP1540 |
1B14-351 | FS 310-12 CI | SP1543 |
1B14-362 | FS 330-11 CI | |
1B15-377 | FS 330-14 CI | |
1B15-375 | FS 530-11 CI | |
FS 530-14 CI | ||
FS 960-12 CI | ||
FS 1330-11 CI |

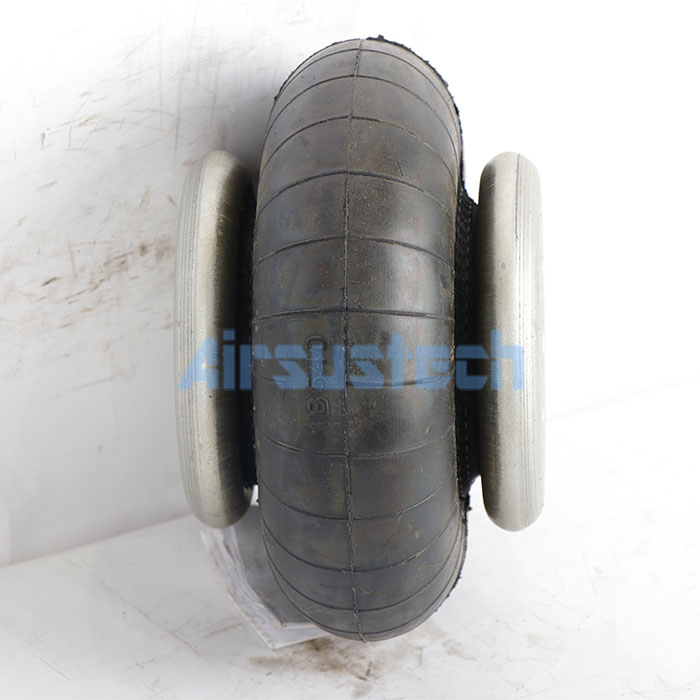

1B7451 Real Pictures
![]() |
