    Original AIRSUSTECH Air Spring for Phoenix SP1B04 Weforma WBE100-E1 1B4060

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B4060
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Original AIRSUSTECH Air Spring for Phoenix SP1B04 Weforma WBE100-E1 1B4060

    Original AIRSUSTECH Air Spring for Phoenix SP1B04 Weforma WBE100-E1 1B4060

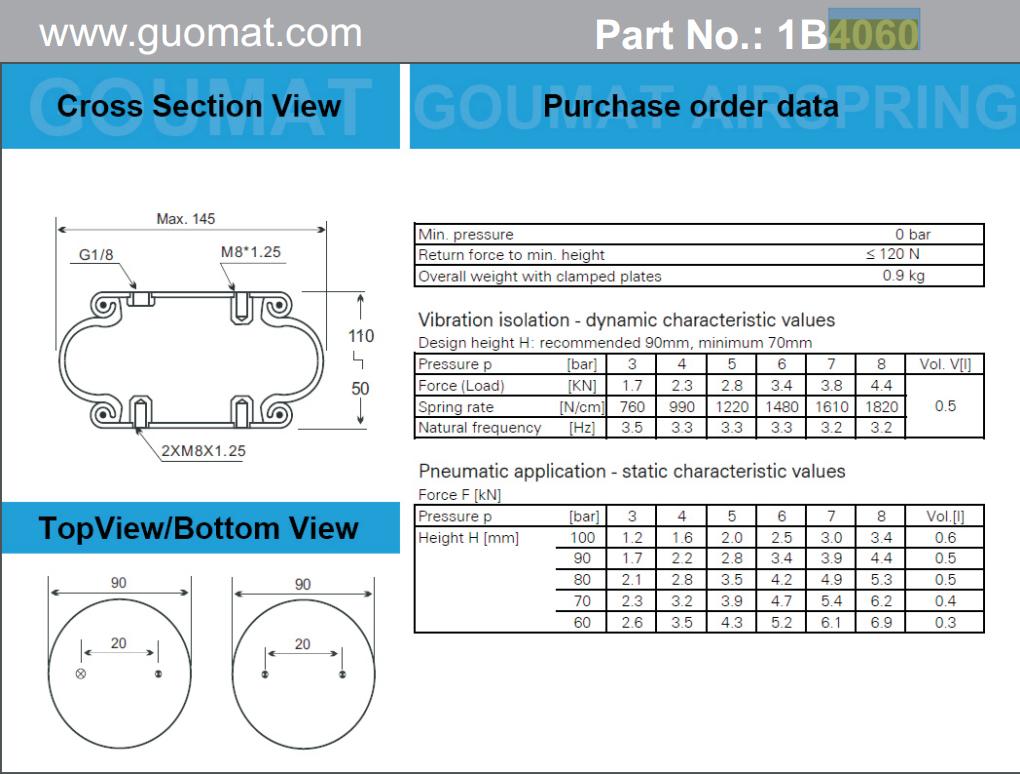

    Product Specification


    Cover Plate
    Top Cover Plate Diameter90 mm
    Screw Center Distance of Top Cover Plate20 mm
    Bottom Cover Plate Diameter90 mm
    Screw Center Distance of Bottom Cover Plate20 mm
    Nut/Blind Nuts
    Top Cover Plate Screw(Nut) Tooth2×M8×1.25
    Bottom Cover Plate Screw(Nut) Tooth2×M8×1.25
    Gas Hole/Air Inlet/Air Fitting
    Air HoleG1/8
    Rubber Bellow
    Rubber Bellow Max. Diameter145 mm
    Minimum Height50 mm
    Maximum Height110 mm

    Technical Data Sheet


    Vibration isolation - dynamic characteristics values

    Design height H: recommended 90mm, minimum 70mm

    Pressure p [bar]345678Vol. V[I]
    Force (Load) [kN]1.72.32.83.43.84.40.5
    Spring rate [N/cm]7609901220148016101820
    Natural frequency [Hz]3.53.33.33.2

    Pneumatic application - static characteristics values

    Force F [kN]

    Pressure p[bar]345678Vol. V[l]
    Height H [mm]1001.21.62.02.53.03.40.6
    901.72.22.83.43.94.40.5
    802.12.83.54.24.95.30.5
    702.33.23.94.75.46.20.4
    602.63.54.35.26.16.90.3

    Refer Number


    Phoenix Part Number: SP1B04

    Phoenix Part Number: SP 1B04

    Phoenix Part Number: SP 1B 04

    Contitech Part Number: FS 40-6

    Contitech Part Number: FS40-6

    Contitech Part Number: FS406
    Weforma Part Number: WBE100-E1

    Weforma Part Number: WBE 100-E1

    Weforma Part Number: WBE100E1


    The Crucial Role of Air Springs in Industrial Applications


    1. Air springs play a vital role across various industries by dampening and absorbing vibrations, controlling movement, and enhancing pressure. Compared to air cylinders or other elastic components with similar functions, air springs stand out due to their simplicity of design, dependable operation, and ease of maintenance. They eliminate the need for complex parameter calculations or intricate structural designs and have no risk of leakage due to seals, which ensures their long service life.
    2. In processes like stamping for automotive components such as car hoods and doors, air springs are indispensable. These processes demand effective buffer systems to handle significant cyclical shock loads. The performance of these buffers directly influences the product's machining precision. Utilizing air springs as buffers helps reduce manufacturing costs while maintaining accuracy in production.
    3. Air springs are equally valuable in material handling applications. For instance, in silos where vibrators mix materials or facilitate their flow, the resulting vibrations can cause fatigue and even damage to the silo supports. Incorporating air springs as vibration isolation devices prevents such damage, preserving the structural integrity of the system.
    4. What makes air springs even more versatile is their adaptability. By adjusting the air pressure within the spring, you can accommodate varying working loads and height requirements without compromising the vibration isolation effectiveness. This flexibility makes air springs an invaluable tool in industrial applications, ensuring efficient and reliable performance under diverse conditions.


    The Real Pictures of 1B4060
