Brand Name : | AIRSUSTECH |
Model Number : | 1B5510S |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Product Description
AIRSUSTECH offers a wide range of air springs designed for various
industries, serving as reliable vibration isolators and actuators
for linear and angular motion. These air springs feature bellows
filled with compressed air, enabling them to support loads, absorb
shocks, and eliminate harmful vibrations effectively. With their
compact design, air springs are perfect for low-clearance
applications and are available in multiple configurations,
including single and triple convoluted forms, to suit diverse
needs.
Product Specification
Air Connection: 1/4''BSP Operation: Gas-filled |
Bottom Plate Alignment: Parallel Bottom Plate Center To Center Diameter: 44.5 mm Bottom Plate Diameter: 85 mm Bottom Plate Hole Quantity: 2 Bottom Plate Type: Steel |
Top Plate Alignment: Parallel Top Plate Center To Center Diameter: 44.5 mm Top Plate Diameter: 85 mm Top Plate Hole Quantity: 3 Top Plate Type: Steel |
Bellow Maximum Diameter: 150 mm Expanded Height: 120 mm Compressed Height: 50 mm Spring Type: Single Convoluted Nut/Blind Nuts Type: 3/8''UNC |
We Also Have Other Single Type Air Suspensions
Model Number | Force (lbs.) @ 100 psi A Stroke of | |||||||
Product Number | Assembly NO. | Max. Stroke (in.) | 2.0 in. | 4.0 in. | 6.0 in. | Max. Stroke | Isolator Load Range @ 100 psi (lbs.) | Design Height Range (in.) |
YI-2B6 | 530 | 4.9 | 1900 | 1100 | - | 580 | 1300-2000 | 4.5-6.5 |
531 | 4.9 | 1900 | 1100 | - | 580 | 1300-2000 | 4.5-6.5 | |
532 | 4.3 | 1700 | 800 | - | 580 | 1300-2000 | 4.5-6.5 | |
535 | 6.3 | 2350 | 1600 | 700 | 560 | 1500-2000 | 5.0-7.0 | |
536 | 5.7 | 2100 | 1450 | 700 | 560 | 1500-2000 | 5.0-7.0 | |
YI-2B7 | 540 / 546 | 6.5 | 2900 | 2300 | 1250 | 800 | 1600-2500 | 6.0-8.0 |
541 | 6.5 | 2900 | 2300 | 1250 | 800 | 1600-2500 | 6.0-8.0 | |
542 | 5.7 | 2750 | 2000 | - | 800 | 1600-2500 | 6.0-8.0 | |
YI-2B8 | 550 / 552 | 7.2 | 3600 | 2700 | 1800 | 1000 | 2300-2700 | 7.0-8.0 |
553 | 7.2 | 3600 | 2700 | 1800 | 1000 | 2300-2700 | 7.0-8.0 | |
554 | 6.6 | 3350 | 2500 | 1400 | 1000 | 2300-2700 | 7.0-8.0 | |
YI-2B9 | 200 / 204 | 7.6 | 1650 | 3850 | 2550 | 1100 | 2300-3700 | 7.5-9.5 |
201 / 205 | 7 | 4400 | 3550 | 2100 | 1100 | 2300-3700 | 7.5-9.5 | |
216 | 7.6 | 1650 | 3850 | 2550 | 1100 | 2300-3700 | 7.5-9.5 | |
208 | 7 | 4400 | 3550 | 2100 | 1100 | 2300-3700 | 7.5-9.5 | |
250 | 8.7 | 4800 | 4000 | 3250 | 1500 | 3000-3800 | 7.5-9.5 | |
251 | 9.4 | 4700 | 3900 | 3100 | 1500 | 3000-3800 | 8.0-10.0 | |
255 | 8.4 | 4700 | 3900 | 3100 | 1500 | 3000-3800 | 8.0-10.0 | |
256 / 263 | 8.7 | 4800 | 4000 | 3250 | 1500 | 3000-3800 | 8.0-10.0 | |
275 | 8.7 | 4800 | 4000 | 3250 | 1500 | 3000-3800 | 8.0-10.0 | |
YI-2B12 | 425 / 429 | 7.7 | 8400 | 7200 | 5200 | 2700 | 5200-7200 | 7.5-9.5 |
309 / 318 | 6.9 | 8050 | 6600 | 4250 | 2700 | 5200-7200 | 7.5-9.5 | |
437 | 7.7 | 8400 | 7200 | 5200 | 2700 | 5200-7200 | 7.5-9.5 | |
416 / 419 | 10.8 | 9100 | 8100 | 7100 | 2600 | 7100-8100 | 7.5-9.5 | |
YI-2B14 | 354 / 352 | 7.8 | 12900 | 11100 | 8400 | 3400 | 8400-11100 | 7.5-9.5 |
355 / 353 | 6.4 | 11600 | 9400 | 4800 | 3400 | 8400-11100 | 7.5-9.5 | |
362 / 363 | 11.4 | 14500 | 13100 | 11800 | 4300 | 8400-13100 | 7.5-9.5 | |
452 | 11 | 13650 | 12700 | 11200 | 4300 | 11800-13075 | 7.5-9.5 | |
YI-2B15 | 375 / 377 | 9.1 | 13700 | 12300 | 10300 | 2500 | 10300-12300 | 7.5-9.5 |
376 / 378 | 7.9 | 12850 | 10950 | 7900 | 2500 | 10300-12300 | 7.5-9.5 |
Product Features

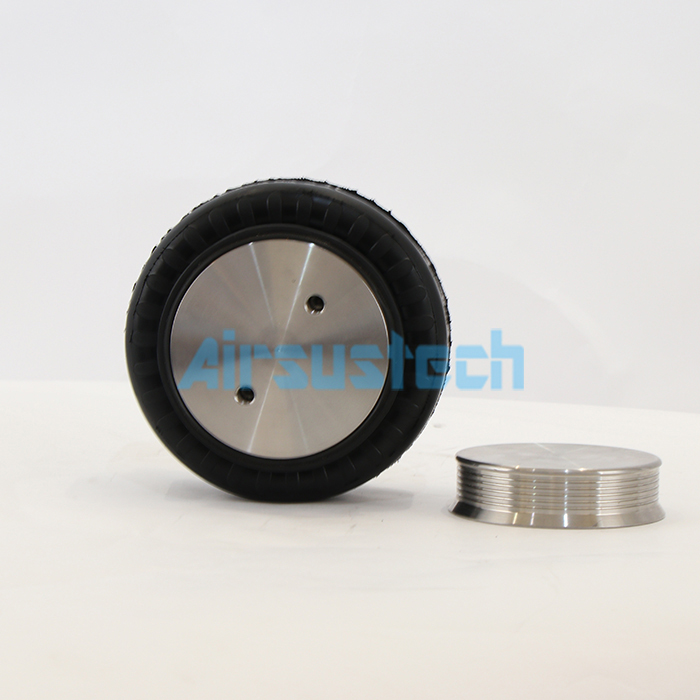

The Detailed Pictures
![]() |
