    W01-358-7484 Firestone Industrial Bellows Actuator 1/4NPT Air Inlet Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B7484
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    W01-358-7484 Firestone Industrial Bellows Actuator 1/4NPT Air Inlet Air Spring

    W01-358-7484 Firestone Industrial Bellows Actuator 1/4NPT Air Inlet Air Spring


    Product Features


    AIRSUSTECH air springs are trusted solutions for industrial actuation and vibration isolation. As actuators, they excel in delivering linear or angular motion with a compact design, outperforming traditional air cylinders. Their flexibility makes them ideal for applications involving pressing, tensioning, rolling, conveying, lifting, and packaging tasks. In vibration isolation, AIRSUSTECH air springs effectively minimize harmful vibrations, ensuring smoother operation and protecting machinery.


    Product Details


    • Cover Plate

    Top Cover Plate Diameter: 4.50 in.
    Screw Center Distance of Top Cover Plate: 1.75 in.
    Bottom Cover Plate Diameter: 4.50 in.
    Screw Center Distance of Bottom Cover Plate: 1.75 in.


    • Nut/Blind Nuts

    Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
    Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts


    • Gas Hole/Air Inlet/Air Fitting

    Air Hole: 3/4NPT


    • Rubber Bellow

    Rubber Bellow Max. Diameter: 8.1 in.
    Compressed Height: 2.1 in.
    Max. Expanded Height: 6 in.


    Technical Parameters


    Dynamic Characteristics at 4.5 in. Design Height
    Volume @ 100 PSIG = 128 in3Natural Frequency
    Gage Pressure (PSIG)lOAD (lbs.)Spring Rate (lbs./in.)CPMHZ
    406505541732.88
    601,0107951672.77
    801,3901,0461622.71
    1001,7901,2941602.66

    Force Table (Use for Airstroke actuator design)
    Assembly Height (in.)Volume @ 100 PSIG (in3)Pounds Force
    @ 20 PSIG@ 40 PSIG@ 60 PSIG@ 80 PSIG@ 100 PSIG
    4.01173908101,2401,7002,160
    3.0914901,0101,5402,0902,650

    Cross References


    Style 110


    Two Ply Bellows

    DescriptionAssembly Order No.
    Blind nuts, 1/4NPT

    W01-358-7451, W01 358 7451, W01-358-7451

    WO1-358-7451, WO1 358 7451, WO1-358-7451

    Blind nuts, 3/4NPTW01-358-7484, W01 358 7484, W01-358-7484

    WO1-358-7484, WO1 358 7484, WO1-358-7484

    Socket head aluminum bead rings (bolts, nuts. washers not included - use 1/4 cap screws)W01-358-0112, W01 358 0112, W01-358-0112

    WO1-358-0112, WO1 358 0112, WO1-358-0112

    Rubber bellows onlyW01-358-0100, W01 358 0100, W01-358-0100

    WO1-358-0100, WO1 358 0100, WO1-358-0100

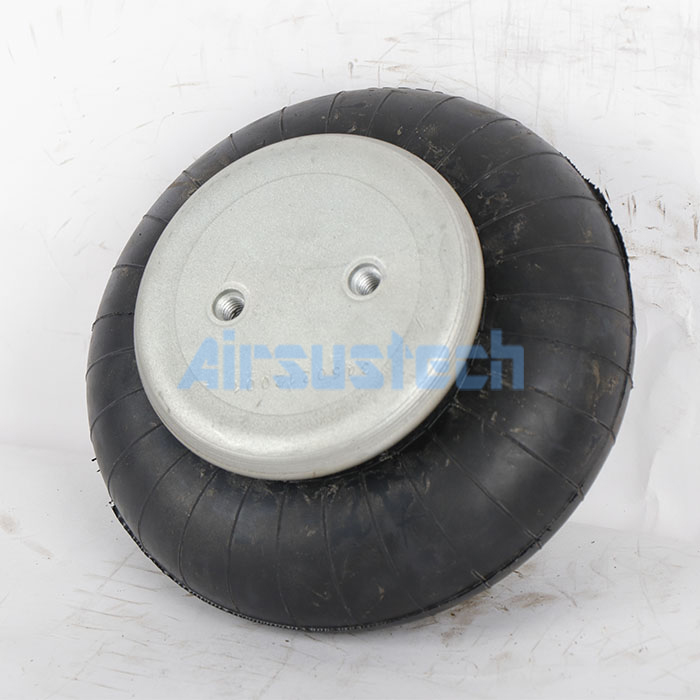

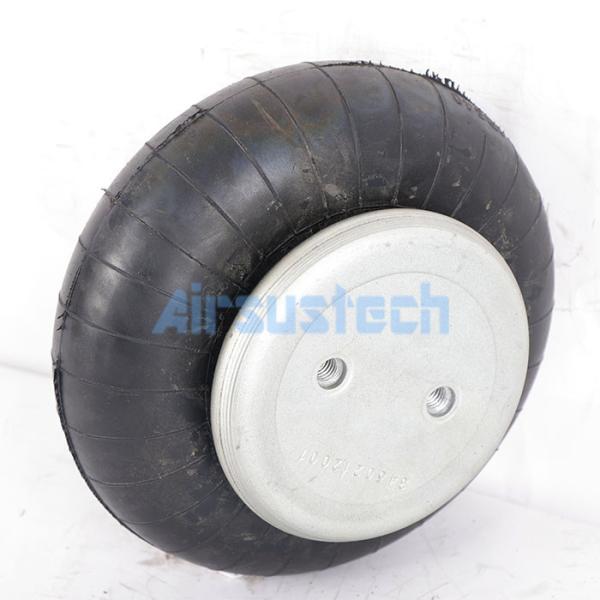

    The Real Photos
