Brand Name : | AIRSUSTECH |
Model Number : | 2B6×2P |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
About Air Spring
These compact air bellows from AIRSUSTECH are used to attenuate shock to moving parts in pneumatic equipment. It features a flexible membrane that is inflated with compressed air to create a controlled shock absorbing system. This prevents friction and extends the life of the machine. The unit's SBR compound rubber body provides reliable durability to withstand the nicks and scrapes of harsh industrial environments. These bellows perform best at an operating pressure of 5.5 bar, making them ideal for medium-duty applications. Wear-resistant aluminum end plates enable long-reach operation.
Technical Details
Medium: Compressed Air Suspension
Working Temperature: -30℃ to +70℃
Operating Pressure: 0 bar to 8 bar
Air Connection: G1/2
Nominal Diameter: 6''
Number of Convolutions: Two
Stroke Length: 115mm
Bellows Type: Double Convoluted
Material - Body: Aluminum
Dimensions - Height: 175mm
Dimensions - Length: 115mm
Dimensions - Width: 175mm
Country of Origin: Guanghzou, China
Replace These Air Spring Rubber Bellow
Norgren Part Number PM31062 / PM 31062 / PM/31062 |
Firestone Part Number W01R584070 / W01-R58-4070 / W01 R58 4070 WO1R584070 / WO1-R58-4070 / WO1 R58 4070 |
Dunlop Pneuride Part Number 6"x2 (Al) / 6'x2 (Al) / 6x2 (Al) |
Dunlop Springride Part Number SP2917 / SP 2917 |
Contitech Part Number FD76-14 DI / FD 76-14 DI / FD7614 DI |
Parker Part Number 9109001A |
Other Types Rubber Bellows
AIRSUSTECH | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
2 3/4''×2 | 2 3/4''×2 | SP2904 | FD 22-4 DI | 9109009 | ||
2B4.5×2 | W01R584051 | 4 1/2''×2 | SP2441 | FD 44-10 DI | PM/31042 | 9109401 |
2B4.5×2-E | ||||||
2B6×2T(AI) | W01R584070 | 6''×(AI) | SP2917 | FD 76-14 DI | PM/31062 | 9109001A |
2B6×2T(Steel) | W01R584053 | 6''×2(Steel) | SP1482 | FD 76-14 DS | M/31062 | 9109001 |
2B8×2T | W01R584055 | 8''×2 | SP1490 | FD 138-18 DS | M/31082 | 9109011 |
2B10×2T | W01R584058 | 10''×2 | SP1538 | FD 210-22 DS | M/31102 | 9109021 |
2B12×2T | W01R584061 | 12''×2 | SP1541 | FD 412-22 DS | M/31122 | 9109041 |
2B12''×2-E | W01R584039 | 12''×2 Extend | SP2782NB | |||
2B14 1/2''×2T | W01R584064 | 14'' 1/2×2 | SP1556 | FD 614-26 DS | M/31142 | 9109061 |
2B16×2T | W01R584067 | 16''×2 | SP1557 | FD 816-30 DS | M/31162 | 9109171 |
2B21 1/2''×2T | 21 1/2''×2 | SP1408 | M/31212 | 9109153 | ||
2B26''×2T | 26''×2 | SP2342 | M/31262 | 9109159 |

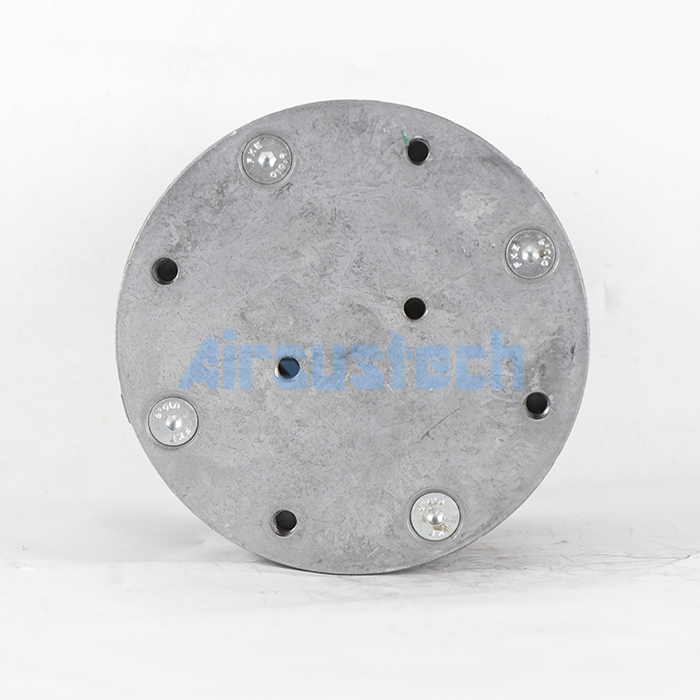

The Pictures of Details
![]() |
