    Continental Contitech FS 70-7 G1/4 Air Connection Single Convoluted Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B7070
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

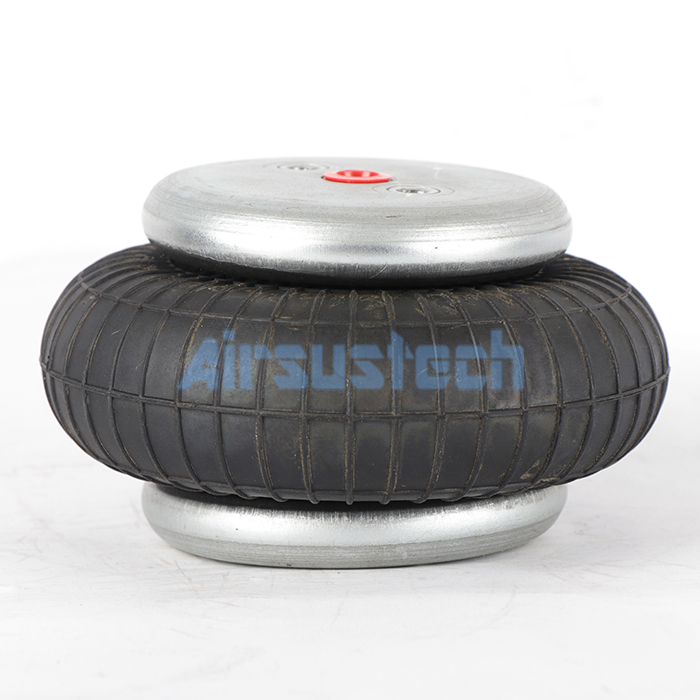

    Continental Contitech FS 70-7 G1/4 Air Connection Single Convoluted Air Actuator

    Continental Contitech FS 70-7 G1/4 Air Connection Single Convoluted Air Actuator


    Product Introduction


    Skillfully engineered to deliver exceptional performance and adaptability across diverse applications, this product stands out with its durable construction. At its core lies a crimped assembly, specifically designed to provide heightened strength and long-lasting reliability. Paired with this is a convoluted bellow, carefully made from natural rubber—celebrated for its outstanding dynamic performance and versatile characteristics. Together, these features make our actuator both powerful and flexible, perfectly suited for a wide range of operating environments.


    Product Standard


    Cover Plate
    Top Cover Plate Diameter105mm
    Screw Center Distance of Top Cover Plate44.5mm
    Bottom Cover Plate Diameter105mm
    Screw Center Distance of Bottom Cover Plate44.5mm
    Nut/Blind Nuts
    Top Cover Plate Screw(Nut) Tooth2×M8×1.25
    Bottom Cover Plate Screw(Nut) Tooth2×M8×1.25
    Gas Hole/Air Inlet/Air Fitting
    Pneumatic ConnectionG1/4
    Rubber Bellow
    Max. Diameter160mm
    Minimum Height50mm
    Maximum Height115mm

    Contitech Single Convoluted Air Bellow


    Item CodeMax. Diameter (mm)Max. Stroke (mm)Min. Height (kN)Max. Stroke (kN)Standard Air Inlet
    Force with p = 8 bar
    FS 40 -6 CI145606.92.4G1/8
    FS 50-5 CI1504492.2G1/4
    FS 70-7 CI165649.95.2G1/4
    FS 100-10 CI2109414.71.6G3/4
    FS 120-9 CI2158517.76.6G3/4
    FS 120-10 CI2319919.54.6G3/4
    FS 120-12 CI23511918.77.2G3/4
    FS 200-10 CI2508923.89.1G3/4
    FS 310-12 S
    FS 330-11 CI3259943.922.4G3/4
    FS 330-14 CI34312947.313G3/4
    FS 530-11 CI38512468.420.8G3/4
    FS 530-14 CI40513469.635.2G3/4
    FS 960-12 CI45011798.340.4G3/4
    FS 1330-11 CI530107141.663.3G3/4


    Product Applications


    1. Bark peeling machine
    2. Loading and transfer stations
    3. Measuring devices
    4. Pantographs
    5. Pneumatic ram weight compensation
    6. Reciprating engines
    7. Scissors-type lifting table
    8. Tensioning station
    9. Test-bench mountings
    10. Vibrating screens
    11. Washing machines
    12. Web-edge guides

    The Related Pictures of 1B7070
