    Air Rubber Bellow Contitech FS 40-6 Single Convoluted for Trucks Spare Parts

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B4060
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

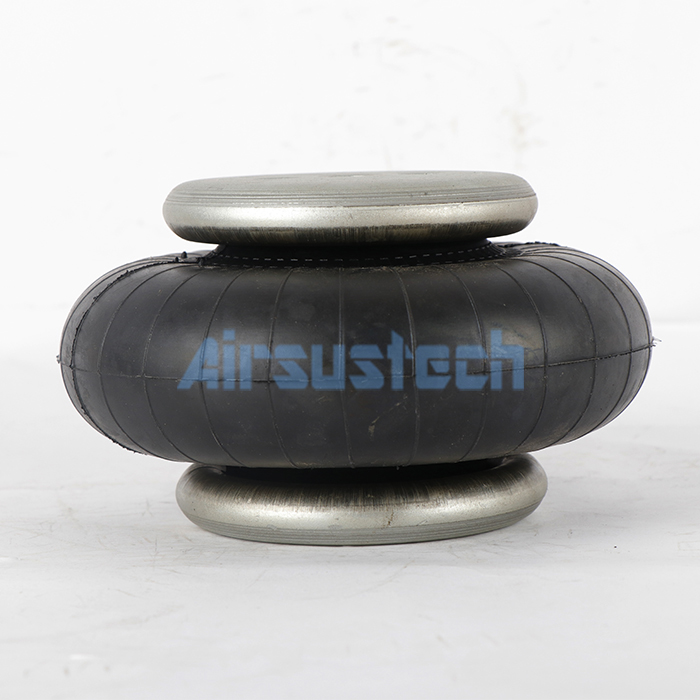

    Air Rubber Bellow Contitech FS 40-6 Single Convoluted for Trucks Spare Parts

    Air Rubber Bellow Contitech FS 40-6 Single Convoluted for Trucks Spare Parts


    Product Description


    AIRSUSTECH air actuators are the perfect choice for a wide range of different pneumatic applications. They are easy to install, reliable, maintenance-free, durable and inexpensive to purchase and operate. AIRSUSTECH offers a comprehensive range of different model series suitable for nearly all applications – including technically complicated tasks – in machine and plant engineering. We can also supply special designs made according to our customers’ individual specifications at any time.


    Product Details


    Compressed Height50 mm
    Max Expanded Height110 mm
    Max Diameter145 mm
    Max Infation Pressure8 bar
    Max Stroke60 mm
    Air Inlet TypeG1/8
    Min Temperature-40℃
    Max Temperature+70℃
    Bellows TypeSingle Convoluted

    OEM Number


    Contitech NO.: FS 40-6

    Contitech NO.: FS40-6
    Contitech NO.: FS406
    Phoenix NO.: SP1B04

    Phoenix NO.: SP 1B04

    Phoenix NO.: SP 1B 04
    Weforma NO.: WBE100-E1

    Weforma NO.: WBE100 E1

    Weforma NO.: WBE100E1


    We Can Offer Contitech Single Convoluted Air Springs


    Item CodeMax. Diameter (mm)Max. Stroke (mm)Min. Height (kN)Max. Stroke (kN)Standard Air Inlet
    Force with p = 8 bar
    FS 40 -6 CI145606.92.4G1/8
    FS 50-5 CI150449.02.20G1/4
    FS 70-7 CI165649.95.2G1/4
    FS 100-10 CI2109414.71.6G3/4
    FS 120-9 CI2158517.76.6G3/4
    FS 120-10 CI2319919.54.6G3/4
    FS 120-12 CI23511918.77.2G3/4
    FS 200-10 CI2508923.89.1G3/4
    FS 310-12 S
    FS 330-11 CI3259943.922.4G3/4
    FS 330-14 CI34312947.313.0G3/4
    FS 530-11 CI38512468.420.8G3/4
    FS 530-14 CI40513469.635.2G3/4
    FS 960-12 CI45011798.340.4G3/4
    FS 1330-11 CI530107141.663.3G3/4
