Brand Name : | AIRSUSTECH |
Model Number : | 2B6330 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Air Spring Design And Structure
An air spring is a carefully designed rubber-fabric bellow that contains a column of compressed air inside. It is important to note that the bellow itself does not provide any force or support for the load; the support function is entirely achieved by the internal column of air. The AIRSUSTECH air suspension is an expertly crafted elastic bellow equipped with specially designed metal end caps. Our standard double-layer air spring bellows are actually composed of four layers of materials. Moreover, to meet higher pressure demands, many of our air springs are built with high-strength structures. These products are either made from four layers of fabric-reinforced rubber or constructed with two layers of special high-strength cords, featuring both an inner liner and an outer cover to deliver outstanding pressure resistance.
Product Details
Air Spring Type | Double Convoluted |
Bead Plate (Top) Mounting Bolts Dimension Center to Center | 157.5mm |
Bellows | Automann SP2B22R, Firestone 22C, Triangle 6316 |
Bottom Plate Alignment | Parallel |
Bottom Plate Diameter | 231mm |
Bumper | No |
Minimum Height | 81mm |
Contitech Bellow | FS 330-22 |
Maximum Height | 305mm |
Goodyear Bellow | 2B12-425/311 |
Top Plate Diameter | 231mm |
Type | Bellows Air Spring |
OEM Number
ORDER NO.: 500285-WH
WUHLERMANN NO.:2RC-301-23C
RIDEWELL: 1003587180C
TRIANGLE: AS-4363
LOADGUARD: SC2075
PEERLESS: 0550-00001
TAURUS: AS214-7180
NAVISTAR/FLEETRITE: 168179C1
EZ RIDE: 8030190
FIRESTONE: W01-358-7180
GOODYEAR: 2B12-425
TAURUS: 6316
AUTOMANN: SP2B22R-7180
FLEETPRIDE: AS7180
CONTITECH: FD 330-22 363
AIRSUSTECH Air Spring Advantages
1. Extended Service Life - Lasts at least twice as long as steel springs and, in some
cases, up to four times longer.
2. Minimal Maintenance - Requires virtually no maintenance, saving time and effort.
3. Improved Tire and Brake Pad Longevity - Extends the life of tires and brake pads, reducing replacement
frequency.
4. Reduced Wear on Other Components - Significantly lowers damage and maintenance of various vehicle
parts, such as electrical systems, air conditioning, cab mounts,
exhaust systems, chassis, seals, lines, and transmissions.
5. Versatile Load Handling - Enables hauling various types of loads while eliminating costly
no-load operations.
6. Rigorous Quality Assurance - Every air spring component undergoes 100% pressure testing
before leaving the GUOMAT factory to ensure reliability and top
performance.

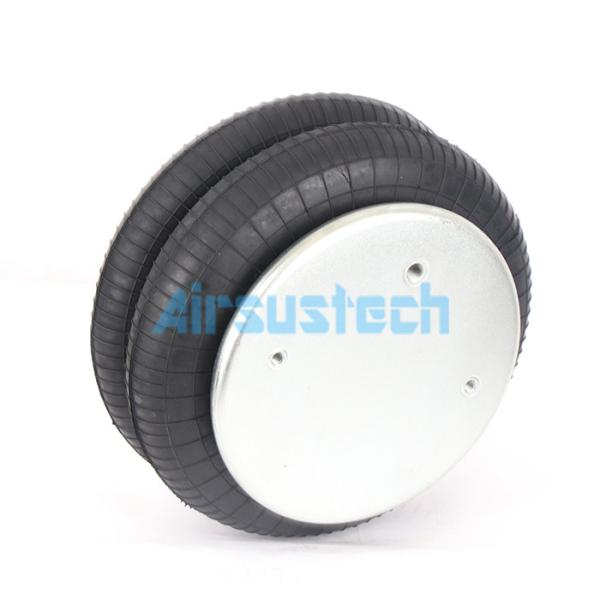

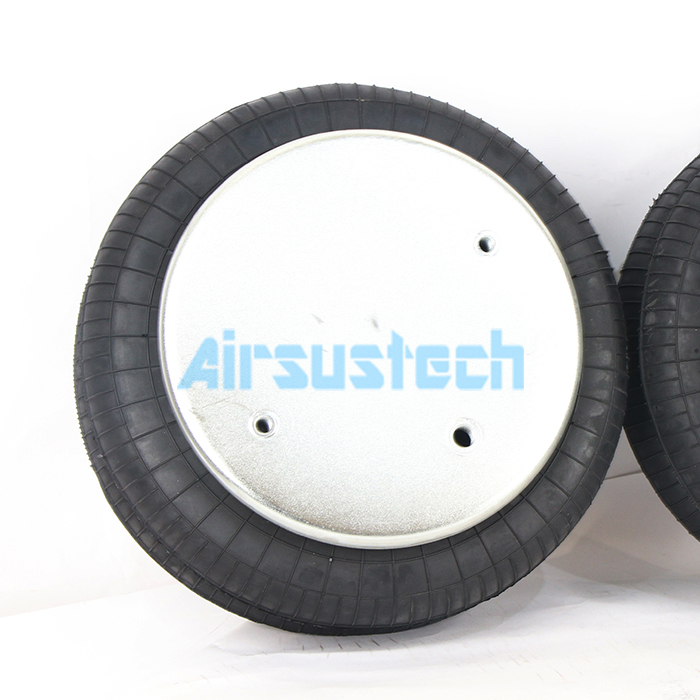

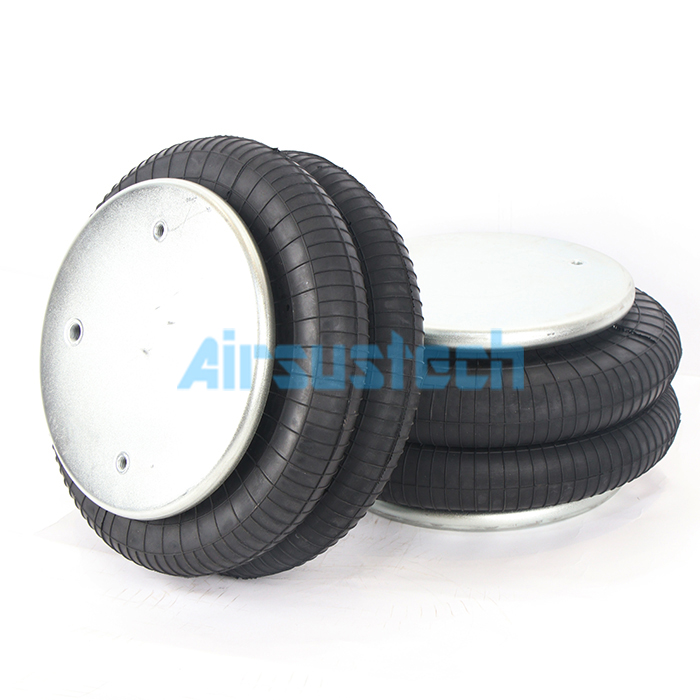

Real Pictures of Details
![]() |
