Contitech 67962 FS412-10DSG1/2 BSPP Single Convoluted Pneumatic Industrial Air Actuator

Product Info

Continental: FS 412-10 DS; FS412-10DS; FS41210DS

Continental: FS 412-10; FS412-10; FS41210

Continental: FS 412-10 DS G1/2; FS412-10DSG1/2; FS412 10DSG1/2

Also Known As: 67962

Other reference

Air spring supplier/competitor: Firestone

Supplier/Competitor number: 12 X 1 W01-R58-4060; 12 X 1 W01 R58 4060; 12 X 1 W01R584060; WO1-R58-4060; WO1 R58 4060; WO1R584060

Firestone Style: 12" x1; 12"x1; 12x1

Air spring supplier/competitor: Dunlop FR

Supplier/Competitor number: 12"x1 DUNLOP SP 1640

Air spring supplier/competitor: Dunlop UK (Pneuride)

Supplier/Competitor number: PNP 30552 01 20 /PNP305520120

Air spring supplier/competitor: Norgren

Supplier/Competitor number: M/31121 / M 31121 1 M31121

Nominal (inch) x convolutions: 12" x1/ 12"x1/12x1

Air spring supplier/competitor: Parker

Supplier/Competitor number: 9109044

Specifications and Detailed Technical Parameters: Continental FS 412-10 DS

Top plate diameter: 260mm

Bottom plate diameter: 260mm

Hole/Studs on top plate: 4pcs ×M10

Hole/Studs on bottom plate: 4pcs×M10

Air Inlet: G1/2, Centered

Max. rubber bellow diameter: 330mm

Min. Height: 50mm

Max. Height: 150mm

Girdle hoop: No
M10: max. 25 Nm
G1/2: max. 25 Nm

Min. pressure 0 bar
Return force to min height ≤ 200 N
Overall weight 5.44 kg

Vibration isolation – dynamic characteristic values

Design height H: recommended 120mm, minimum 100mm

Pneumatic application – static characteristic values

Force F [kN]

Applications

Automatic grippers

Air bag jacks

Lifts,

Printing machines

Valves for water channels

Elevators

Tensioning devices

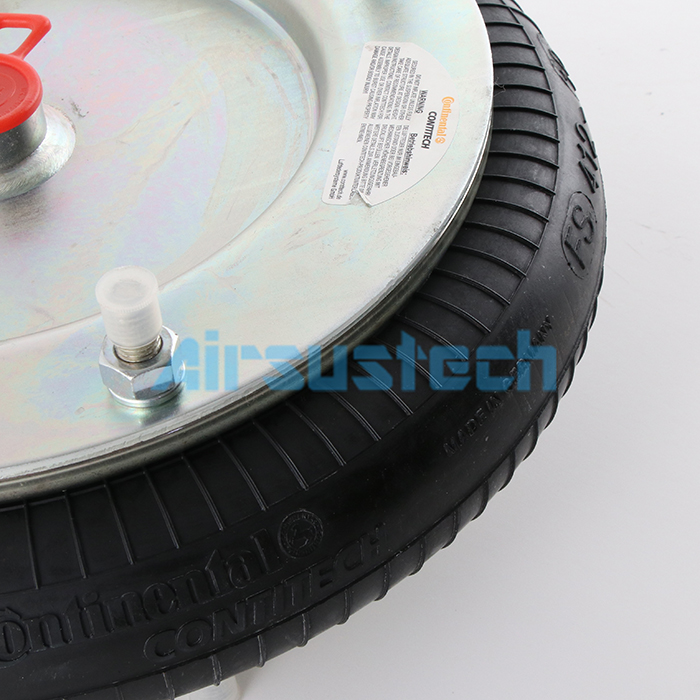

The related picture of FS 412-10 DS G1/2 air spring/air shocks/air bags/cylinders/air ballons
