FS 210-10 DS G1/2 67404 Contitech Single Convoluted Stud Bolt Mounting Industrial Air Spring

Continental: FS 210-10 DS; FS 210-10DS; FS21010DS

Continental: FS 210-10 DS G 1/2; FS210-10 DS G 1/2; FS210-10DSG1/2

Continental: 67404

ContiTech : FS 210-10 G1/2 M10 ( FS 210-10 / FS210-10 )

Cross Reference

Air spring supplier/Competitor: Firestone

Supplier/Competitor number : W01-R58-4057; W01 R58 4057; W01R584057; WO1-R58-4057; WO1 R58 4057; WO1R584057

Air spring supplier/competitior: DUNLOP PNEURIDE

Supplier/Competitor number :10" x 1; 10×1

Air spring supplier/competitior: DUNLOP SPRINGRIDE

Supplier/Competitor number :SP2523

Air spring supplier/competitior: NORGREN

Supplier/Competitor number :M/31101; M 31101; M31101

Air spring supplier/competitior:PARKER

Air spring supplier/competitior:9109024

Air spring supplier/competitior: Goodyear

Air spring supplier/competitior:1B10-2350 ( 578-91-3-2350 / 578 91 3 2350 / 5789132350 )

Specifications and Detailed Technical Parameters: FS 210-10

Compressed Height: 2.01"
Max Expanded Height: 5.51"
Max Diameter: 9.84"
Max Inflation Pressure: 120 psi
Max Stroke: 3.5"
Air Inlet Type: Metric
Air Inlet: 1/2"
Series: D
Min Temperature: -76 °F
Max Temperature: 158 °F
Bellows Type: Single Convoluted
Weight: 9 lbs.

Min. pressure 0 bar
Return force to min height ≤ 150 N
Overall weight 4.1 kg

Vibration isolation – dynamic characteristic values

Design height H: recommended 120mm, minimum 100mm

Pneumatic application – static characteristic values

Force F [kN]

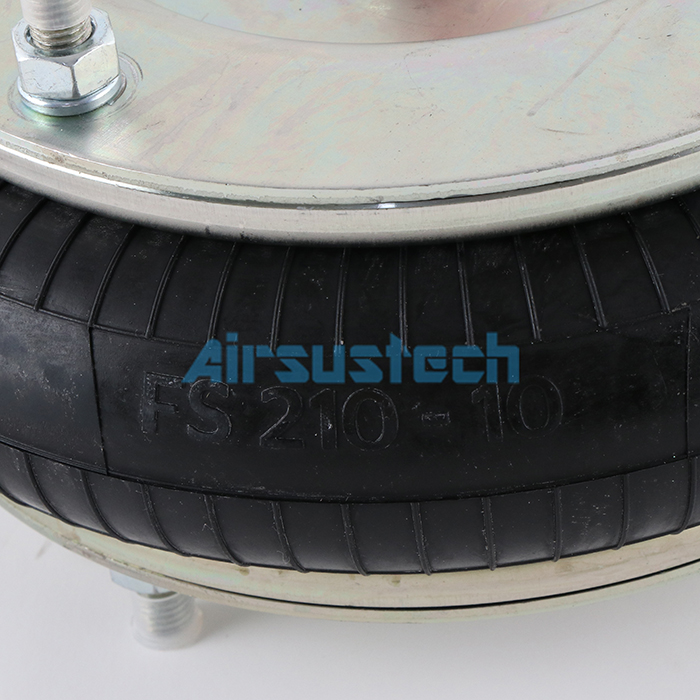

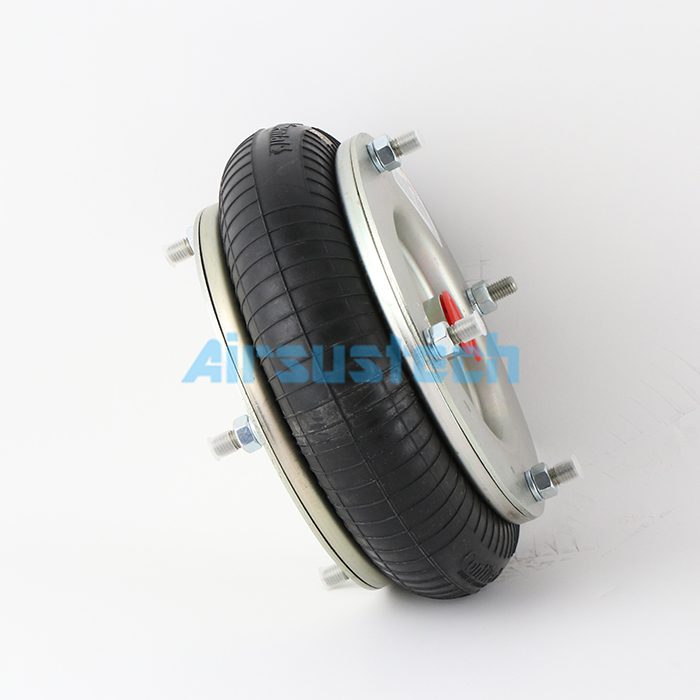

The related picture of FS 210-10 air spring/air shocks/air bags/cylinders/air ballons
