    Motorcycle Lifts Industrial Air Spring 2B15-375 578-92-3-377 Double Convoluted 1/4 OS Air Fittings Without Bumper

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B15-375
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Motorcycle Lifts Industrial Air Spring 2B15-375 578-92-3-377 Double Convoluted 1/4 OS Air Fittings Without Bumper

    2B15-375 578-92-3-377 Double Convoluted 1/4 OS Air Fittings Without Bumper Industrial Air Spring For Motorcycle Lifts


    Item Details
    Goodyear Part number: 2B15-375; 2B15 375; 2B15375
    Flexmember Number: 578-92-3-377; 578 92 3 377; 578923377
    Convolutions: Double

    Reference: ENIDINE YI-2B15-375/ YI 2B15 375/ YI2B15375


    2B15-375 Goodyear air spring technical parameter

    Top plate screw qty:4
    Bottom plate screw qty:4
    Air Fitting Port: 1/4
    Internal bumper: No
    Girdle hoop: 1 piece

    Usable StrokeMax Dia @ 100 psi InMin Ext Height InchesMax Ext Height InchesForce Available At Actuator
    Height Limit (Pounds)
    Force Available At Compressed
    Height Limit (Pounds)
    100 psi80 psi60 psi40 psi100 psi80 psi60 psi40 psi
    9.316.73.512.84105297020901270156751251093506210

    Design Load Range (Pounds)

    Design Load Range (Inches)

    Approximate Isolation Percent For A Disturbing Frequency Of

    435 CPM

    870 CPM

    1160 CPM

    1750 CPM

    2040-12,590

    7.5-9.5

    93.0

    98.2

    99.2

    99.5



    Feature

    Highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications
    Superior quality and performance—time-tested designs, fabric-reinforced neoprene or natural rubber flex member construction and corrosion-protected end retainers
    As an actuator, Air Springs provide linear or angular motion
    Favorable stroke-to-compressed-height ratio when compared to air cylinders and can accept a wide variety of actuation media such as air, water, nitrogen or antifreeze
    As an isolator, Air Springs are effective in reducing the harmful effects of vibration
    Can simultaneously isolate vibration and regulate load height as well as allow for consistent vibration isolation under varying loads
    GUOMAT air spring offers a variety of air spring types to meet your actuation or isolation needs



    This type of air spring can be used in motorcycle lifts

    The air spring is filled with compressed air in a sealed container, and uses the compressibility of the gas to achieve its elastic effect. The air spring has ideal non-linear elastic characteristics, after the height adjustment device is installed. Due to the fundamental difference in principle, gas springs have significant advantages over ordinary springs: relatively slow speed, little change in dynamic force (generally within 1:1.2), and easy control.
    As the lifting element of the lifting equipment, the rubber air spring overcomes the traditional shortcomings of the lifting equipment, requires no maintenance, has a long service life, and is easy to operate and replace.

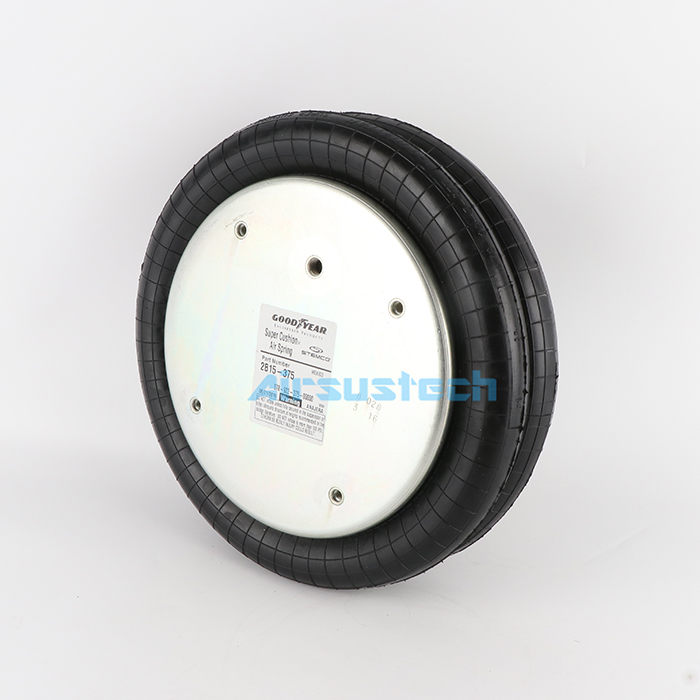

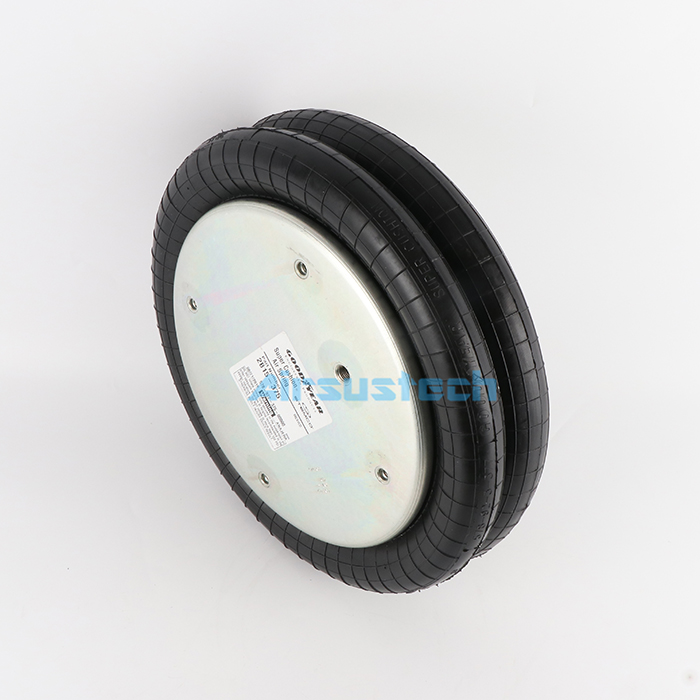

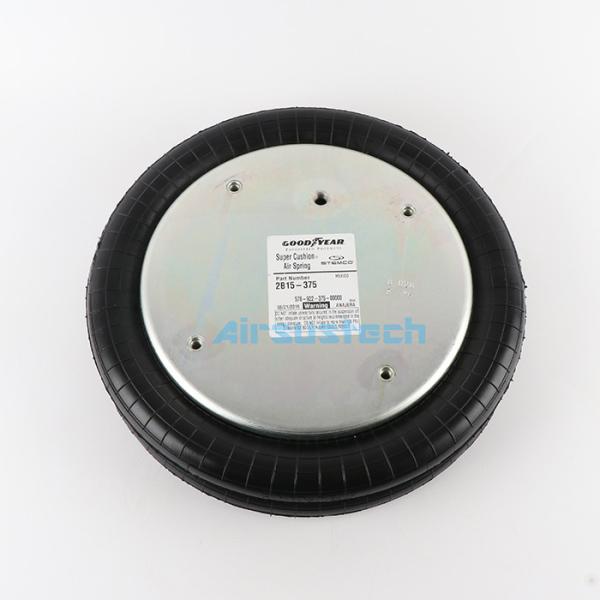

    The related picture of 2B15-375 goodyear helper bag/air springs
